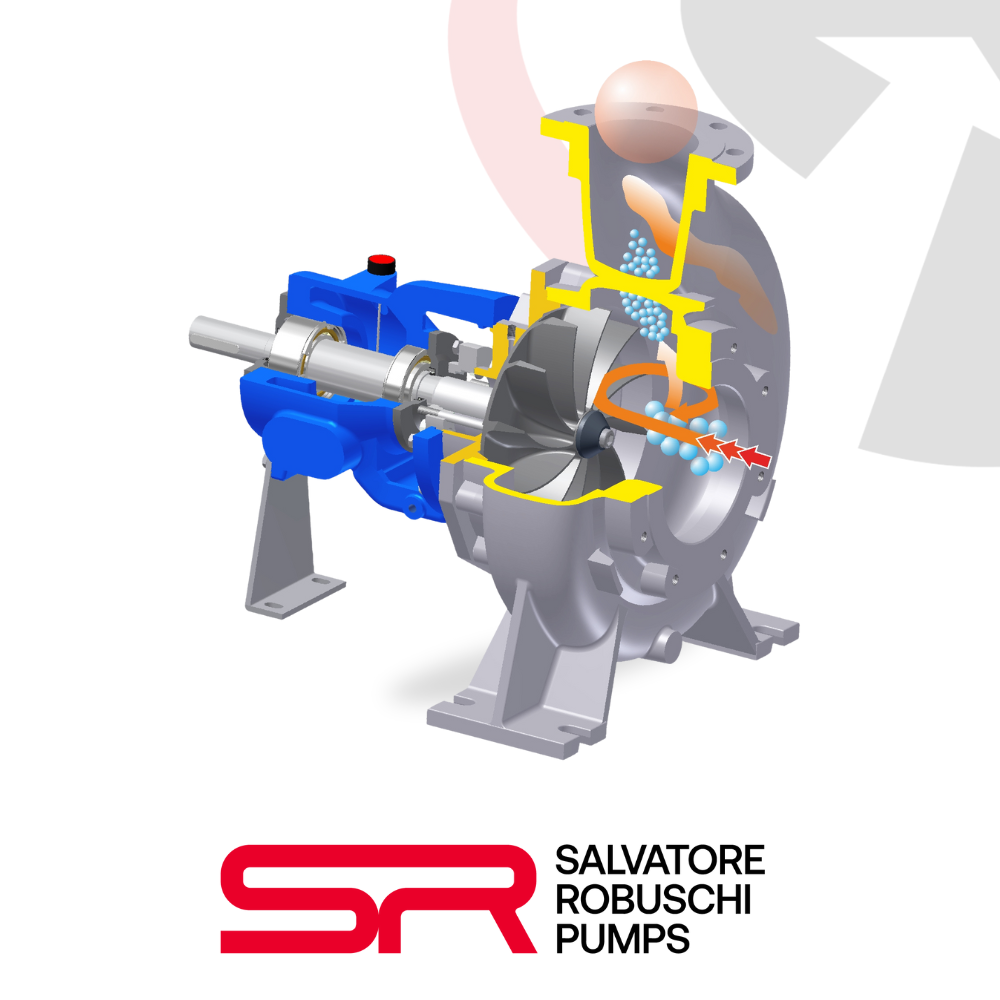

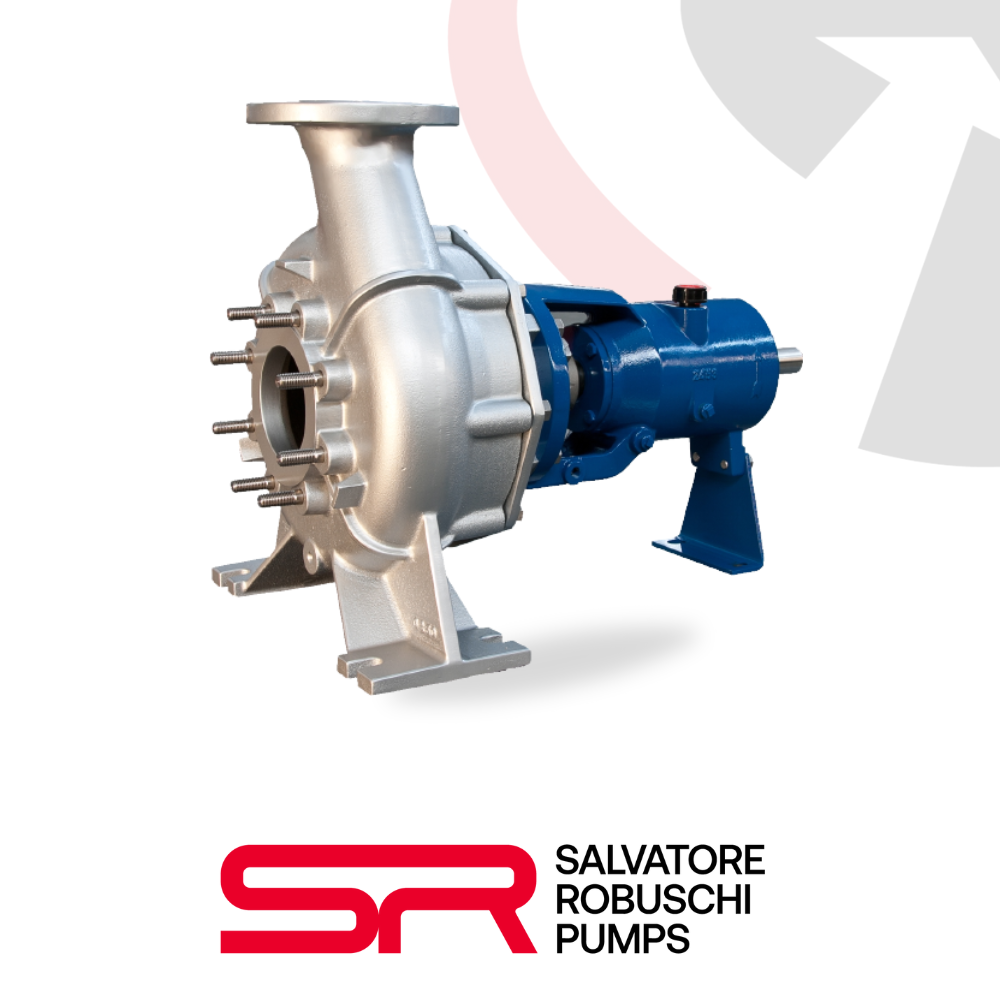

Simple and modular construction with a bearing bracket according to ISO 5199 norm. Discharge sizes from DN 65 to DN 300. Impeller with special blade geometry for low NPSH and high free passage. Heavy-duty shaft and bearings. Only 5 bearing brackets for the whole range. Only 1 casing cover fits every seal arrangement.
Use
RB pumps can handle slightly contaminated liquids in wastewater treatment plants, clean water for cooling towers or condensate recovery plants, and viscous liquids in evaporators in the food or chemical industry. They are also used in refineries, general industrial service, pulp and paper industry, foodstuffs industry, sea water desalination plants, absorption equipment in environmental engineering, power stations, steel industry, and hot water distribution.
Technical Specifications
Specification
Value
Maximum Flow Rate
2400 m³/h
Maximum Head
70 mwc
Maximum Pressure
10 BAR
Maximum Temperature
220°C
Materials
Standard: AISI 316 - Cast Iron GJL250
On request: Duplex, Superduplex, AISI 304, AISI 904, Hastelloy.
Hydraulic
Channel impeller
Unions
Standard: UNI EN 1092-1 PN 10
Construction Versions

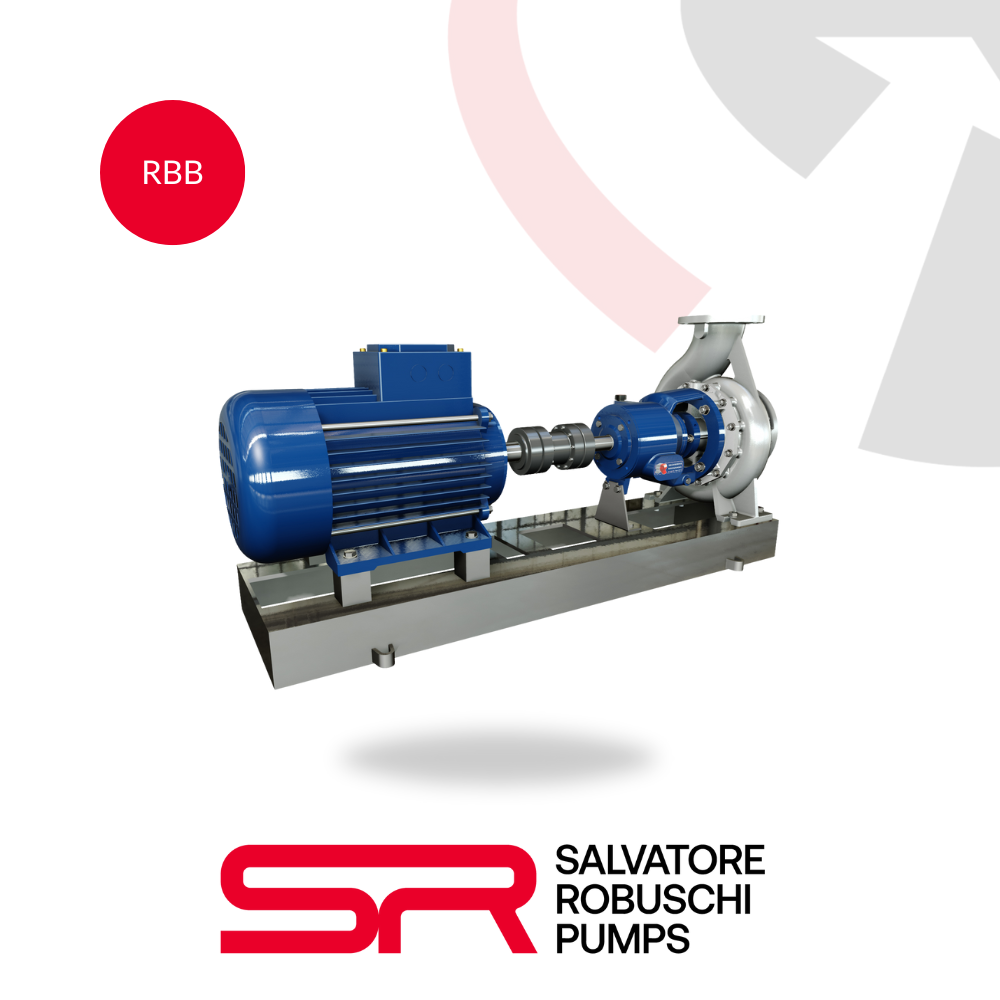

RBB: Independent frame with oil-lubricated bearings.

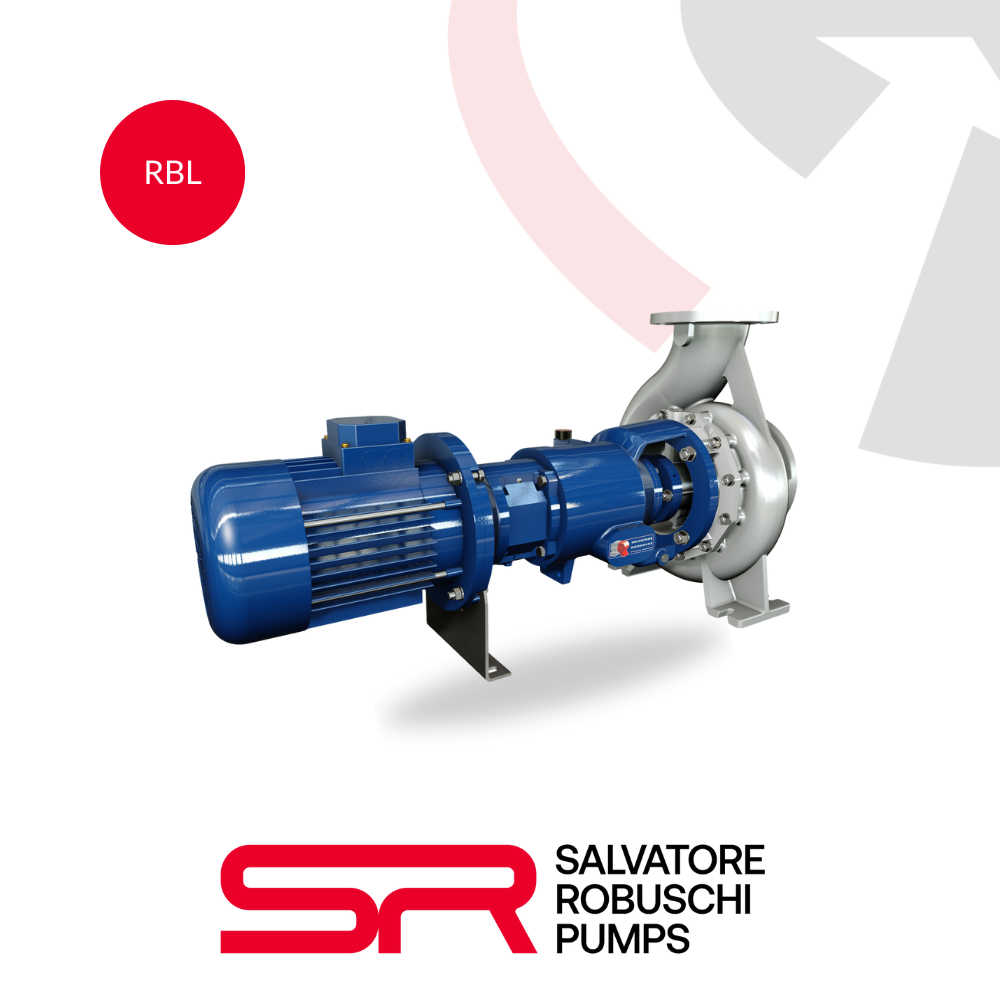

RBL: Lantern bracket with flex coupling and standard B5 motor.

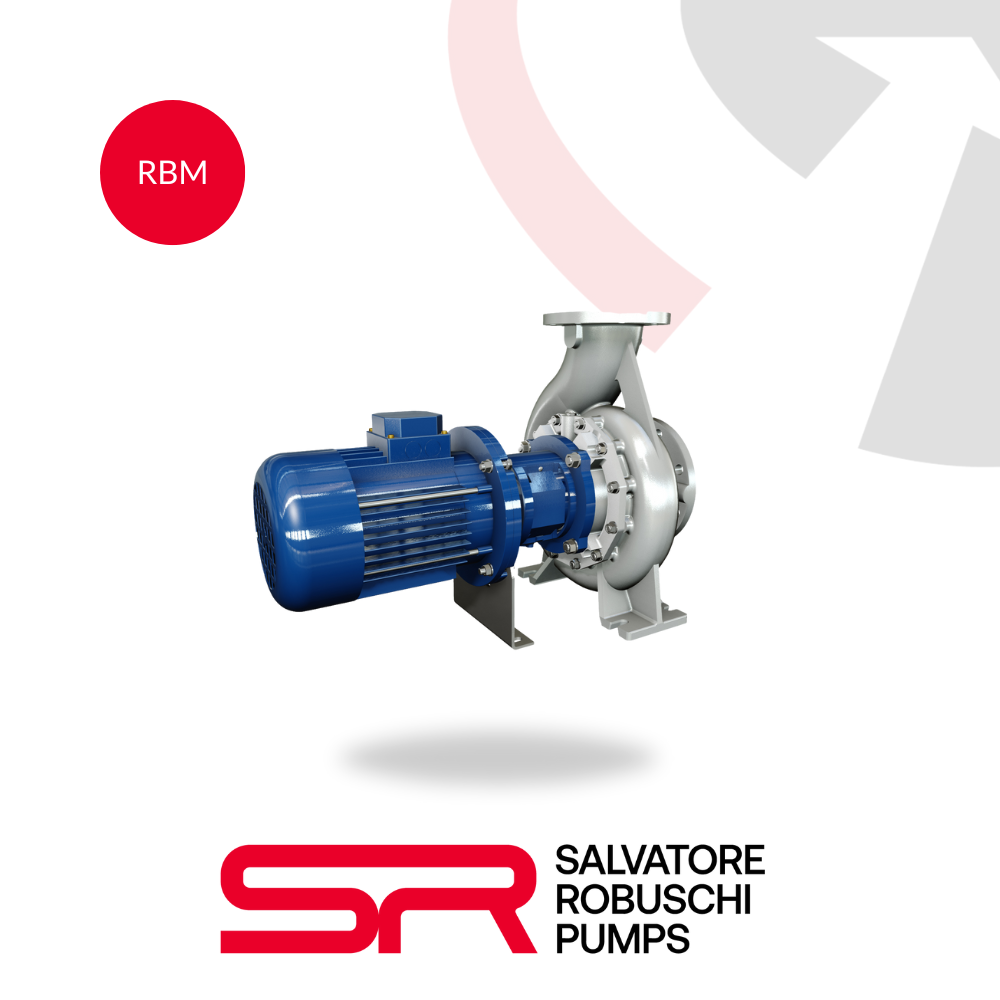

RBM: Close-Coupled with standard B5 electric motor.

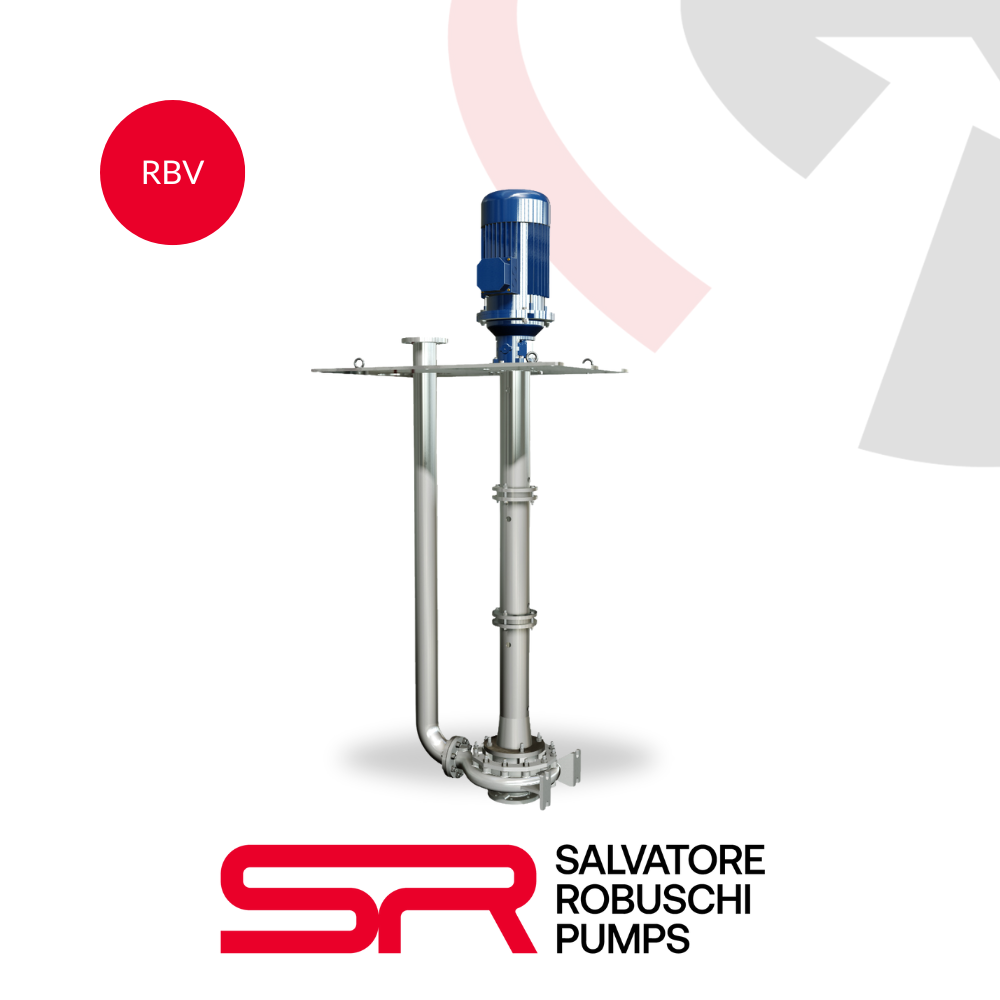

RBV: Vertical column.

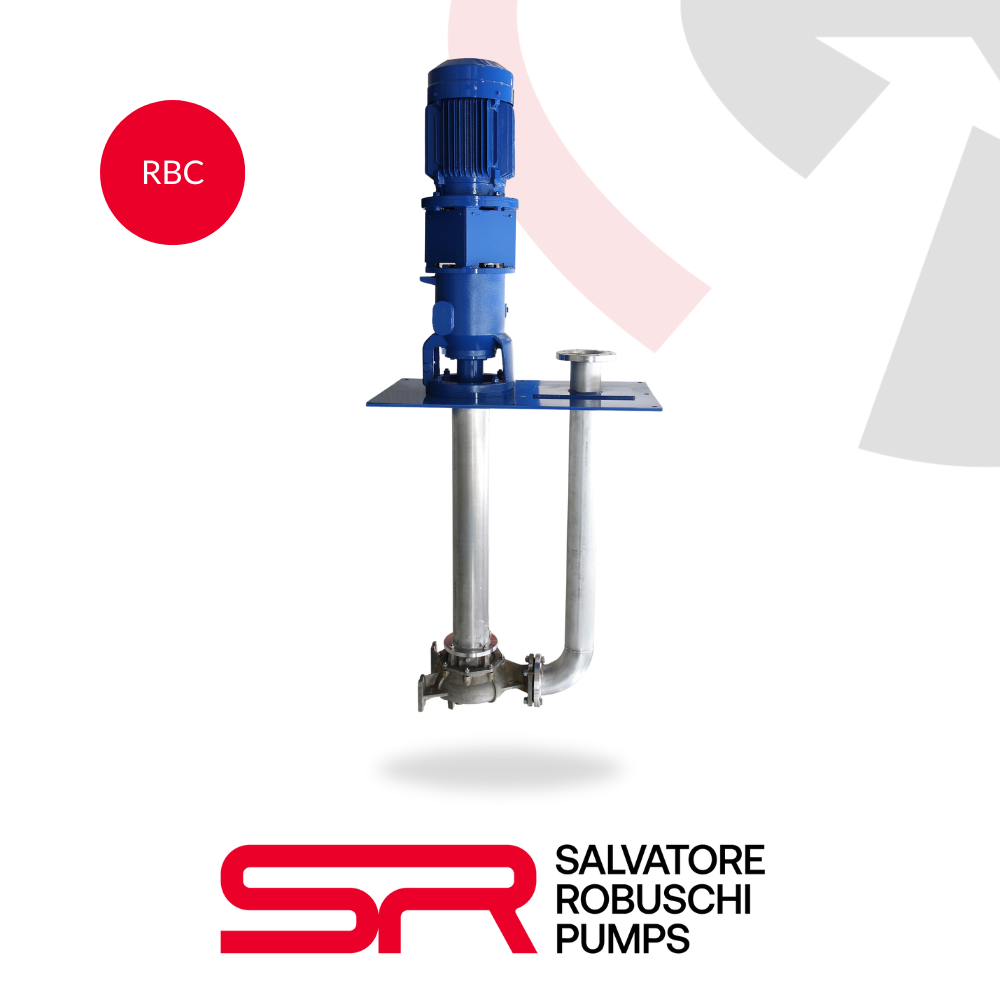

RBC: Cantilever Pump (on request).
Get a Quote Today
Interested in this pump? Contact our team for pricing and availability.
