| Estimated Delivery | Add | |||
|---|---|---|---|---|
| E6PP6X650A | E6PP6X650A | — |
£498.00
Save £125.00 (20% off)
|
|
| E6PP6C550A | E6PP6X550A | — |
£498.00
Save £125.00 (20% off)
|
|
| E6PP5B550A | E6PP5B550A | — |
£612.00
Save £153.00 (20% off)
|
|
| E6KP6X650A | E6KP6X650A | — |
£806.00
Save £201.00 (19% off)
|
|
| E6KP6X550A | E6KP6X550A | — |
£806.00
Save £201.00 (19% off)
|
Performance

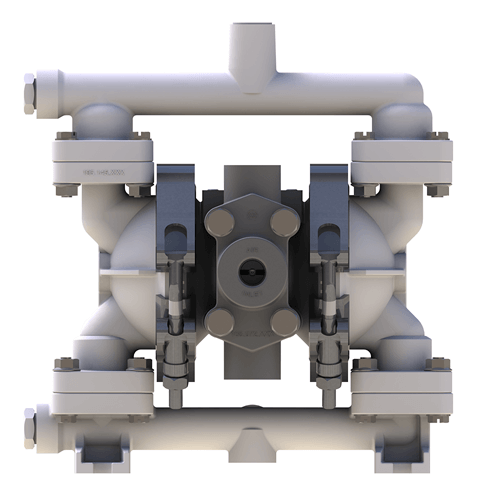

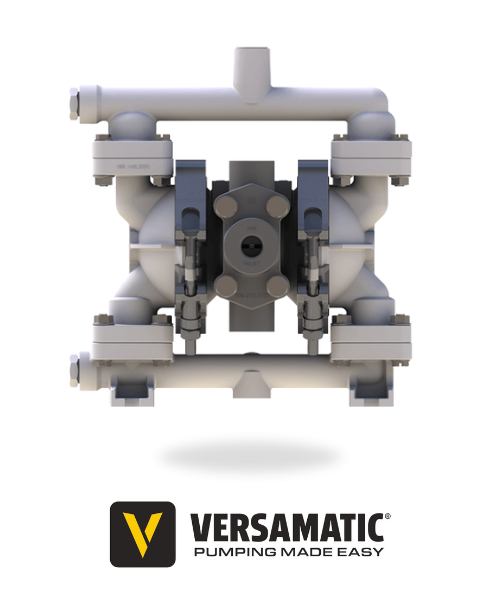

The Versamatic E6 air-operated double-diaphragm pump delivers reliable, non-stalling performance with flow rates from 0 to 49 gpm (0 to 185 l/min). Its patented air valve technology ensures lubrication-free operation, smooth on/off cycling and efficient air consumption in demanding process environments.
Applications
Engineered for versatility, E6 AODD pumps are used across a wide range of industries, including:
- Ceramics
- Chemical processing
- Construction
- Food and Beverage
- General manufacturing
- Marine
- Mining
- Oil and Gas
- Paints and coatings
- Pharmaceutical production
- Wastewater treatment
The E6 range is designed for challenging duties requiring reliable chemical resistance, safe fluid handling and stable performance.
Construction

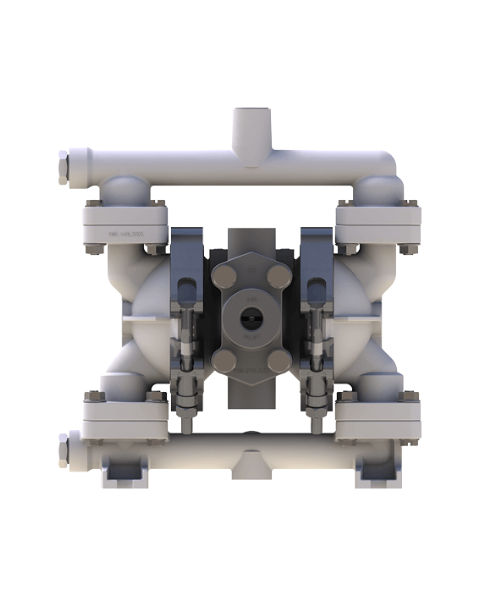

Built for long-term durability, the E6 features a positive-seal, leak-free design and is available in a variety of chemically resistant materials. Extended-life diaphragms, a robust air section and simple, low-cost maintenance make the pump ideal for continuous and intermittent industrial operation.
- Patented air distribution for consistent on/off reliability
- Durable, long-lasting wetted components
- Leak-free bolted or clamped construction
- Available in multiple material options
- Low maintenance requirements
Key Specifications
- Flow rate: 0–49 gpm (0–185 l/min)
- Port size: ¼ inch NPT (suction and discharge)
- Air inlet: ¼ inch NPT
- Air exhaust: ¼ inch NPT
- Suction lift (dry): 2.44 m (8 ft)
- Maximum solid size: 1 mm (1⁄32 inch)
- Maximum noise level: 78 dB(A)
-
Shipping weight:
Polypropylene: 1.5 kg
PVDF (Kynar): 1.8 kg
Delivery
Order the Versamatic E6 AODD Pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
Not sure which pump you need? Use the Versamatic Pump Selection Tool: Click here.
