| Model | Price | Add |
|---|---|---|
| 3CR 100 | 2104460 | £433.68 | |
| 4CR 100 | 2104470 | £495.04 | |
| 5CR 100 | 2104480 | £530.40 |

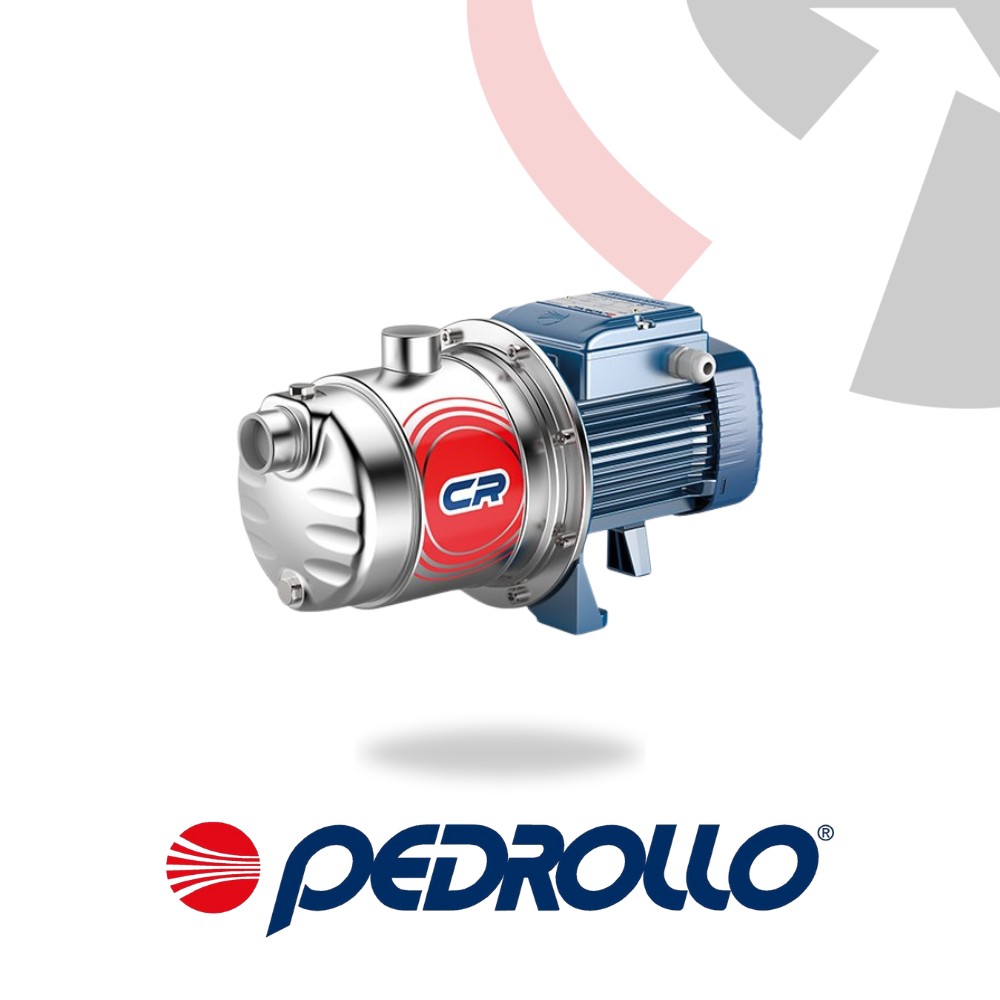

Pedrollo 2-5 CR | Horizontal Multistage Centrifugal Pumps
Quiet, Reliable Surface Pumps for Clean Water Transfer
Performance
The Pedrollo 2-5 CR series includes high-efficiency horizontal multistage pumps designed to transfer clean water in domestic and civil settings. With flow rates up to 130 l/min and heads up to 67 metres, they are ideal for pressure systems, irrigation, and tank fed water supply. Quiet operation and stainless steel construction make them suitable for long-term installations in residential and commercial systems.
Applications
- Water supply systems from tanks or wells
- Pressure boosting in domestic and small commercial buildings
- Garden and allotment irrigation
- Integration with pressure tanks and control sets
Construction
Designed for durability and corrosion resistance, the 2-5 CR range features stainless steel hydraulic components and reinforced technopolymer diffusers. The asynchronous motor is water-cooled and rated for continuous duty (S1), with a protection rating of IP X4.
Key Specifications
- Flow rate: up to 130 l/min (7.8 m³/h)
- Head: up to 67 m
- Manometric suction head: up to 7 m
- Liquid temperature: -10 °C to +60 °C
- Ambient temperature: up to +40 °C
- Max working pressure: 7 bar
- Motor type: 2- pole, asynchronous
- Protection class: IP X4
- Continuous duty: S1 rated
Materials
- Pump housing: AISI 304 stainless steel
- Impellers: AISI 304 stainless steel
- Diffusers: Noryl (technopolymer)
- Shaft: AISI 431 stainless steel
- Pump cover: AISI 304 stainless steel
