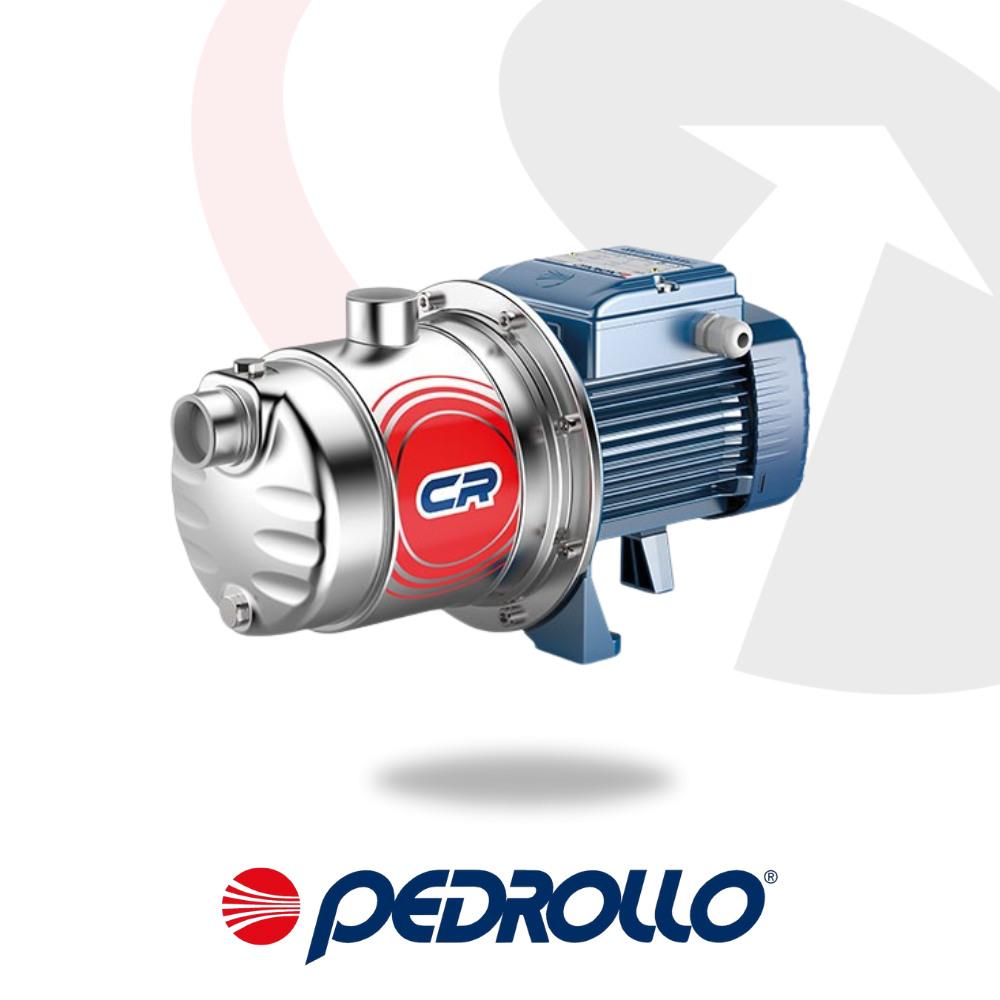

Pedrollo 2-5 CR CRM | Horizontal Multistage Centrifugal Pumps

Reliable, Quiet-Running Pumps for Clean Water Pressure Systems

Performance

The Pedrollo 2-5 CR series includes horizontal multistage centrifugal pumps engineered for the transfer of clean water in domestic and civil systems. These high-efficiency pumps are ideal for pressure boosting, garden irrigation, and tank-fed water supply. With heads up to 67 metres and flow rates up to 130 litres per minute, the CR series is well suited for integration with pressure sets or standalone operation.

Model Options

Each pump model is identified by its stage configuration and motor type:

• “CR” indicates a three-phase motor
• “CRm” indicates a single-phase motor

Applications

• Domestic water pressure boosting
• Tank-fed or well-based water supply
• Garden irrigation and allotments
• Small commercial pressure systems

Construction

Pedrollo CR pumps feature a durable stainless steel hydraulic assembly with reinforced Noryl™ diffusers and anti-wear rings. Designed for quiet operation and continuous duty (S1), these pumps are built to operate in clean water environments free from abrasive particles.

Key Specifications

• Flow rate: up to 130 l/min (7.8 m³/h)
• Head: up to 67 m
• Manometric suction head: up to 7 m
• Liquid temperature: -10 °C to +60 °C
• Ambient temperature: up to +40 °C
• Maximum working pressure: 7 bar
• Motor: 2-pole, asynchronous (single- or three-phase)
• Protection rating: IP X4

Materials

• Pump housing: AISI 304 stainless steel
• Impellers: AISI 304 stainless steel
• Diffusers: Noryl™ technopolymer
• Shaft: AISI 431 stainless steel
• Pump cover: AISI 304 stainless steel
