| Model | Price | Add |
|---|---|---|
| 2CPm 25/130N | 2101540 | £437.00 | |
| 2CP 25/130N | 2101600 | £466.00 | |
| 2CP 32/200C | 2101660 | £1,493.00 | |
| 2CP 32/200B | 2101670 | £1,540.00 | |
| 2CP 32/210B | 2101680 | £1,747.00 | |
| 2CP 32/210A | 2101690 | £1,864.00 | |
| 2CP 40/180C | 2101700 | £1,663.00 | |
| 2CP 40/180B | 2101710 | £1,747.00 | |
| 2CP 40/180A | 2101720 | £1,864.00 | |
| 2CP 40/200B | 2101730 | £3,104.00 | |
| 2CP 40/200A | 2101740 | £3,150.00 |

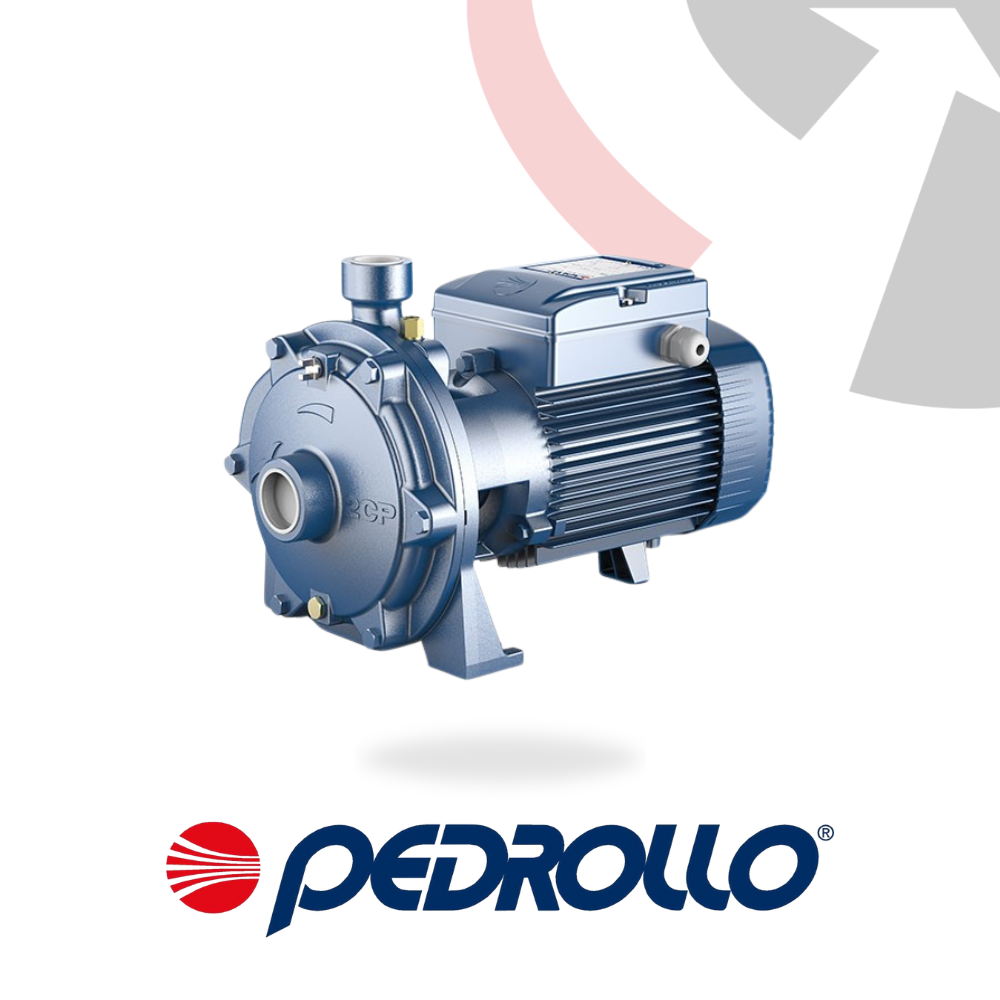

Pedrollo 2CP | High-Performance Twin-Impeller Centrifugal Pump
Reliable Water Pressure for Domestic, Civil and Industrial Systems
Performance
The Pedrollo 2CP series is a range of twin-impeller centrifugal pumps designed for high-demand water transfer. With flow rates up to 450 litres per minute and heads reaching 112 metres, it offers strong, stable performance for both continuous and intermittent duty. Suitable for use with clean water and non-aggressive liquids, the 2CP excels in boosting systems, pressure tanks and fire protection sets.
Applications
- Domestic and civil water distribution
- Booster sets with autoclaves or pressure tanks
- Fire-fighting systems and emergency backup
- Large-scale irrigation and industrial water movement
Construction
The 2CP is built with a robust cast iron body and high-resistance impellers in brass or stainless steel (model dependent). The pump is fitted with a 2-pole asynchronous motor and is suitable for continuous operation (S1 duty). Three-phase versions are inverter-ready, with IE3 efficiency class motors for improved energy savings.
Key Specifications
- Flow rate: up to 450 l/min (27 m³/h)
- Head: up to 112 m
- Manometric suction head: up to 7 m
- Liquid temperature: -10 °C to +90 °C
- Ambient temperature: -10 °C to +40 °C
- Max working pressure: 10 bar
- Protection rating: IPX4 (IPX5 available for select models)
- Insulation class: F
- Motor efficiency: IE2 (single-phase), IE3 (three-phase)
Available Options
- IPX5 protection on selected models (2CP32/200, 2CP40/180, 2CP32/210, 2CP40/200)
- Alternative mechanical seals upon request
- 60 Hz and non-standard voltages available on request
Order the Pedrollo 2CP from pumpsandgearboxesdirect.com with free UK mainland delivery.
