Ebara

1621150004 | 2CDX/I120/15

2CDX(L) | Single and Twin Impeller Centrifugal Pumps

2CDX(L) | Single and Twin Impeller Centrifugal Pumps

£731.66
£1,126.00 £731.66
Exclusive Online Price Sold out
Price excludes VAT + (Free UK Delivery)

CDX - 2CDX(L)

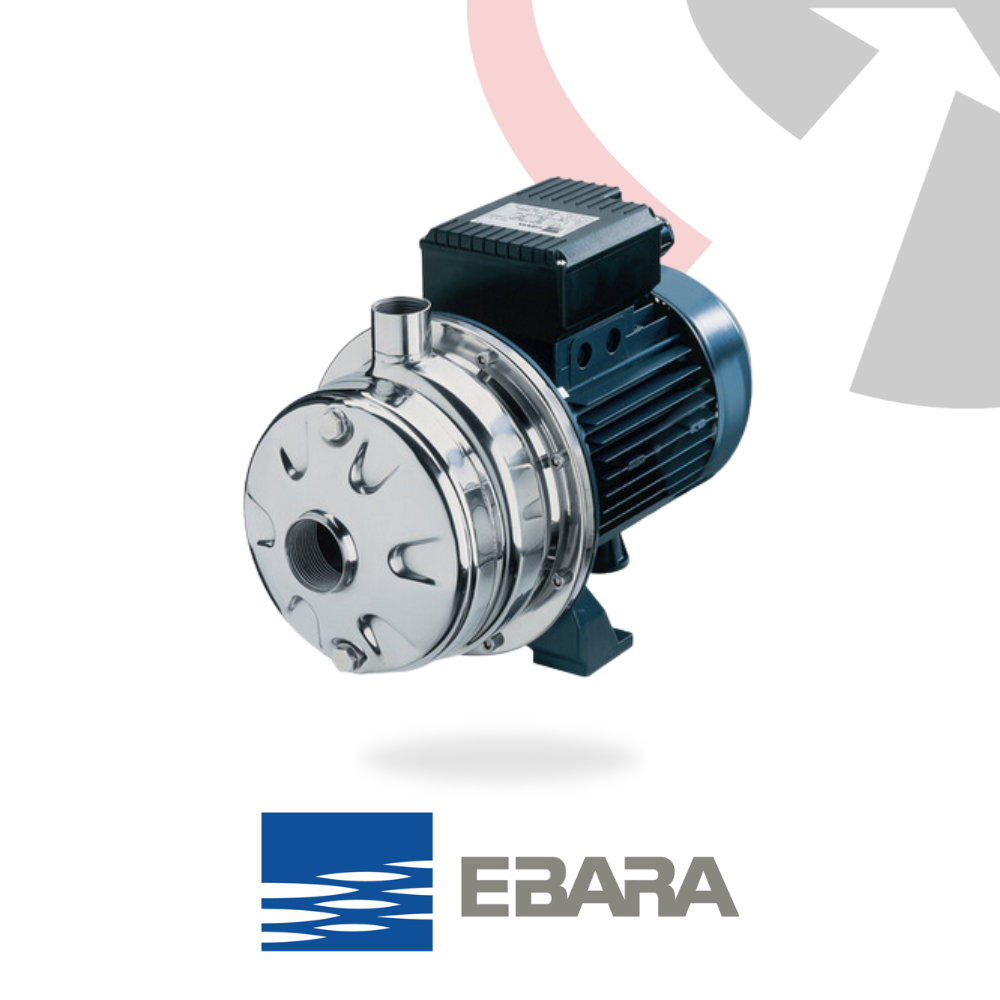

Ebara 2CDX(L) Twin Impeller Centrifugal Pump - Stainless Steel

Performance
The Ebara 2CDX(L) twin impeller centrifugal pump offers flow rates from 1.2 to 12.6 m³/h and heads from 27 to 71.5 m. Its twin impeller design ensures efficient water pressurisation and reliable liquid transfer for various UK applications.

Applications
Designed for UK domestic and industrial use, the 2CDX(L) handles clean water and compatible liquids effectively. Its suited for irrigation, washing systems, water treatment, and cooling circuits where stainless-steel centrifugal pumps are needed.

Construction
Built with AISI 304 (2CDX) or AISI 316L (2CDXL) stainless steel for the pump body, impellers, and shaft, the 2CDX(L) provides strong corrosion resistance. It features a range of mechanical seal options and motor support in aluminium (up to 1.5 kW) or cast iron (2.2 kW and above).

Key Specifications:

  • Flow rate: from 1.2 to 12.6 m³/h
  • Total head: from 71.5 to 27 m
  • Max. working pressure: 8 bar
  • Max. temperature of the liquid: -5°C ÷ +75°C for H, HS, HW, HSW versions, -5°C ÷ +90°C for std and E versions
  • Poles: 2
  • Insulation class: F
  • Protection degree: IP55

·         Voltage: Single-phase 1230V

+±10%, Three-phase 3230/400V +10%

  • Pump body: Stainless steel AISI 304 (EN 1.4301) (2CDX), Stainless steel AISI 316L (EN 1.4404) (2CDXL)
  • Impeller: Stainless steel AISI 304 (EN 1.4301) (2CDX), Stainless steel AISI 316L (EN 1.4404) (2CDXL)
  • Shaft: Stainless steel AISI 304 (EN 1.4301) (2CDX), Stainless steel AISI 316L (EN 1.4404) (2CDXL) and 2CDX 70/20, 120/20 -30-40, 200/30-40-50
  • Mechanical seal: Standard = Ceramic/Carbon/NBR, H = Graphite/Ceramic/FPM, HS = Silicon Carbide/Silicon Carbide/FPM, HW = Tungsten Carbide/Tungsten Carbide/FPM, HSW = Silicon Carbide/Tungsten Carbide/FPM, E = Graphite/Ceramic/EPDM
  • Motor support: Aluminium (up to and including 1.5 kW), cast iron (2.2 kW and above)

Delivery
Order the Ebara 2CDX(L) twin impeller centrifugal pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
