| Model | Price | Add |
|---|---|---|
| 1307200004I | 3LS/I32-125/1,1 | £1,339.00 | |
| 1307202404I | 3LS/I32-160/1,5 | £1,343.00 | |
| 1307300004I | 3LS/I32-160/2,2 | £1,399.00 | |
| 1317402404I | 3LS/I32-200/3,0 | £1,581.00 | |
| 1317550004I | 3LS/I32-200/4,0 | £1,861.00 | |
| 1317750006I | 3LS/I32-200/5,5 | £2,087.00 | |
| 1317750004I | 3LS/I32-200/7,5 | £2,343.00 | |
| 1327370004I | 3LS/I40-125/1,5 | £1,343.00 | |
| 1327270004I | 3LS/I40-125/2,2 | £1,364.00 | |
| 1327402404I | 3LS/I40-160/3,0 | £1,792.00 | |
| 1327550004I | 3LS/I40-160/4,0 | £2,024.00 | |
| 1337910006I | 3LS/I40-200/11,0 | £3,605.00 | |
| 1337752404I | 3LS/I40-200/5,5 | £2,322.00 | |
| 1337900004I | 3LS/I40-200/7,5 | £2,706.00 | |
| 1337200004I | 3LS/I50-125/2,2 | £1,403.00 | |
| 1337550004I | 3LS/I50-125/3,0 | £1,618.00 | |
| 1337400004I | 3LS/I50-125/4,0 | £1,693.00 | |
| 1337900006I | 3LS/I50-160/5.5 | £2,228.00 | |
| 1337890006I | 3LS/I50-160/7,5 | £2,596.00 | |
| 1337960006I | 3LS/I50-200/11,0 | £3,392.00 | |
| 1337980006I | 3LS/I50-200/15,0 | £4,205.00 | |
| 1337970006I | 3LS/I50-200/9,2 | £2,960.00 | |
| 1365120004I | 3LS/I65-125/4,0 | £2,347.00 | |
| 1365130004I | 3LS/I65-125/5,5 | £2,729.00 | |
| 1365140004I | 3LS/I65-125/7,5 | £3,022.00 | |
| 1366160004I | 3LS/I65-160/11 | £3,864.00 |

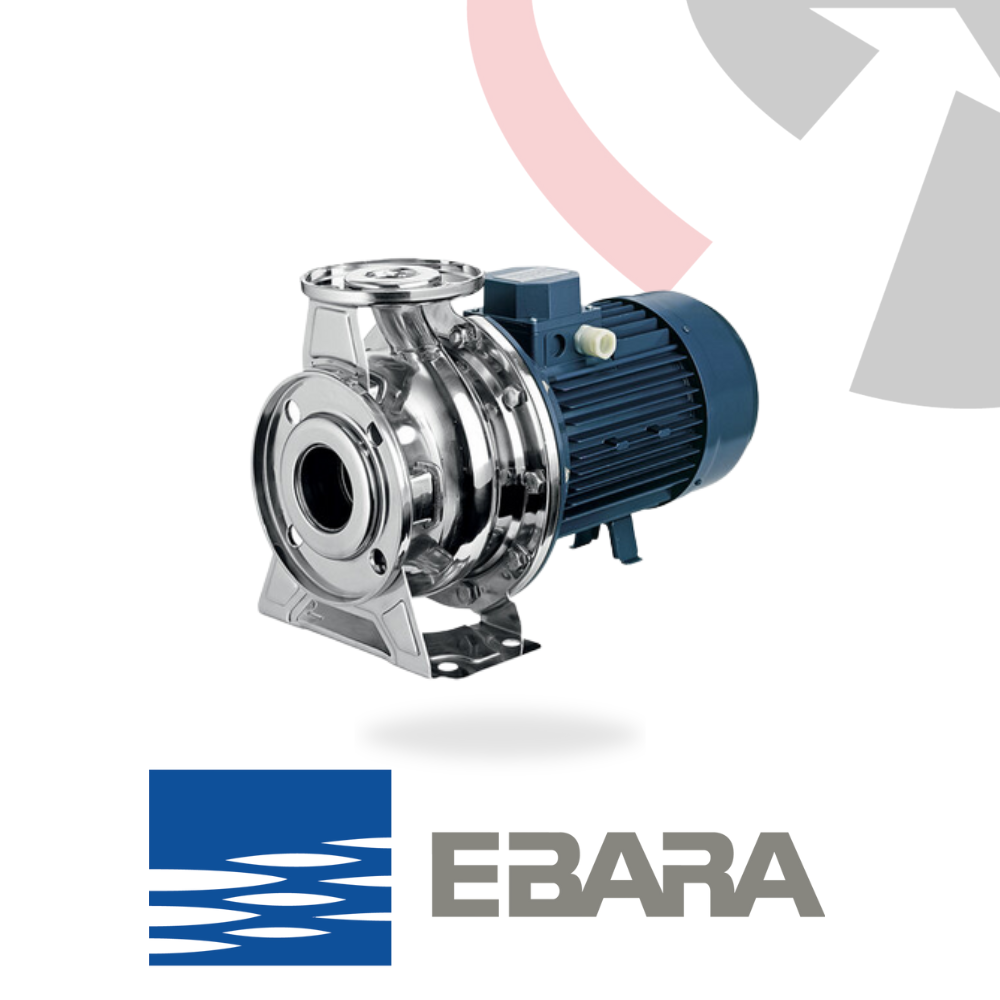

Ebara 3LS Series Centrifugal Pump AISI 316 Stainless Steel (2-Pole Motor)
Heavy-Duty Stainless Steel End-Suction Pump for Industrial, Commercial and Agricultural Water Systems
Performance:
The Ebara 3LS Series is a range of EN 733 standardised centrifugal pumps designed for high-performance water handling. Fitted with a 2-pole motor (2900 rpm), this version delivers high flow and pressure with excellent efficiency for continuous-duty use in demanding systems.
Applications:
This AISI 316L stainless steel pump is suitable for:
- Water supply and pressure boosting
- Heating and air conditioning systems (HVAC)
- Firefighting installations
- Irrigation and agricultural distribution
- Industrial washing and drainage
- Cooling towers and swimming pools
- Chemical and process fluid handling
The 3LS is ideal for aggressive or corrosive fluids, thanks to its high-grade materials and robust construction.
Construction:
Made from AISI 316L stainless steel with duplex steel shaft options in larger models, the 3LS Series offers exceptional chemical resistance and strength.
Key Specifications:
- Max pressure: 10 bar
- Motor type: 2-pole (2900 rpm)
- Temperature range (clear water):
- Standard, H, HW, HSW seals: -10°C to +110°C
- E, ES seals: -20°C to +120°C
Voltage:
Three-phase 230/400V ±10% (up to 4kW)
Three-phase 400/690V ±10% (from 5.5kW)
Protection class: IP55
Insulation class: F
Delivery:
Order the Ebara 3LS Series Centrifugal Pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
