Ebara Pumps

SKU:1277010004 | 3LS4/E32-125/0,25

Delivery Time: Contact office for lead times (some items are instock)

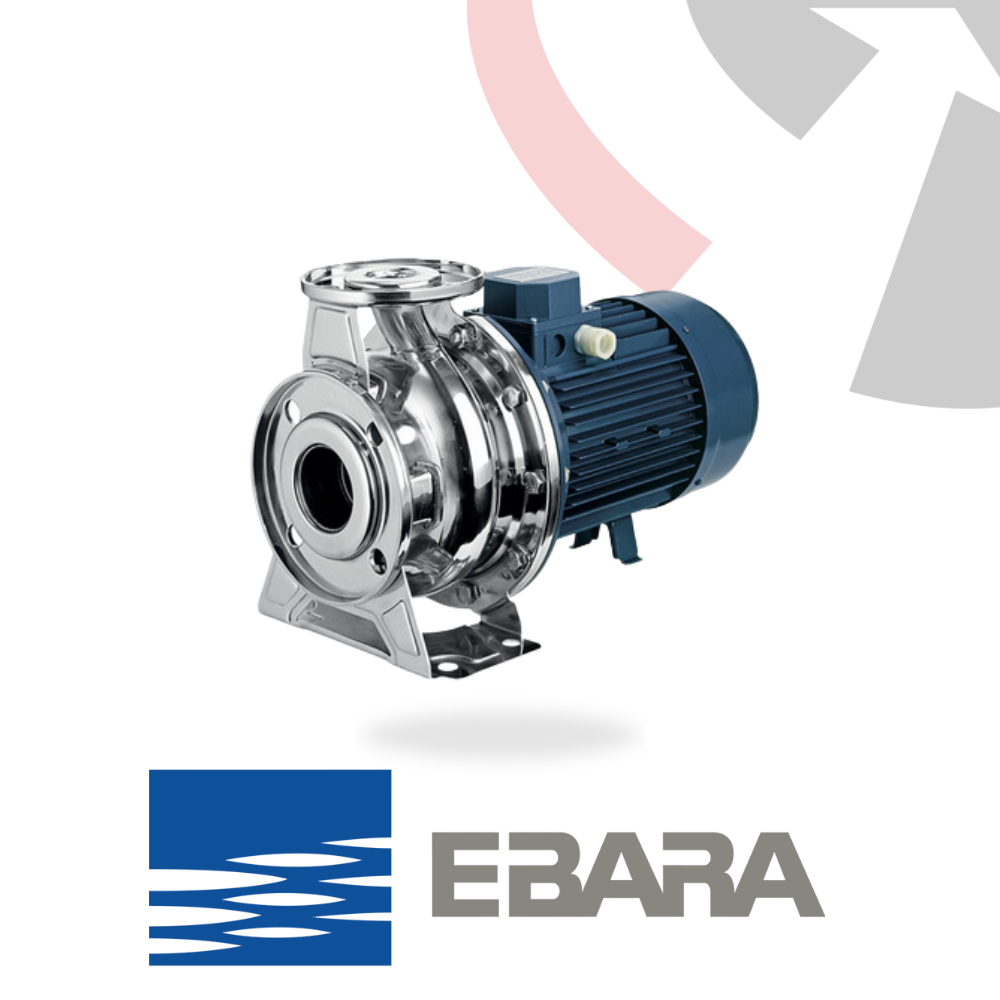

Ebara 3LS4 Series Centrifugal Pump – AISI 316 Stainless Steel (4-Pole Motor)

Reliable Stainless Steel End-Suction Pump for Smooth, Continuous Industrial Operation

Performance:
The Ebara 3LS4 Series is a range of EN 733 standardised centrifugal pumps equipped with a 4-pole motor (1450 rpm). This slower-speed configuration delivers smoother operation with lower noise and reduced wear, making it ideal for continuous-duty cycles in more sensitive systems.

Applications:
This AISI 316L stainless steel pump is suitable for:

Water supply and pressure boosting
Heating and air conditioning systems (HVAC)
Firefighting installations
Irrigation and agricultural distribution
Industrial washing and drainage
Cooling towers and swimming pools
Chemical and process fluid handling

The 3LS4 is especially well-suited to applications requiring longer pump life, lower NPSH, and minimal fluid turbulence. Its stainless steel build ensures resistance to aggressive or corrosive fluids.

Construction:
Manufactured from AISI 316L stainless steel, with duplex steel shaft options in larger models, the 3LS4 offers excellent durability and chemical compatibility. The 4-pole motor supports smoother, quieter performance, while the hydroformed volute and rigid coupling design simplify maintenance and ensure long service life.

Key Specifications:
Max pressure: 10 bar
Motor type: 4-pole (1450 rpm)

Temperature range (clear water):
Standard, H, HW, HSW seals: -10°C to +110°C
E, ES seals: -20°C to +120°C

Voltage:
Three-phase 230/400V ±10% (up to 4kW)
Three-phase 400/690V ±10% (from 5.5kW)

Protection class: IP55
Insulation class: F

Delivery:
