| Model | Price | Add |
|---|---|---|
| 1300200004I | 3M/I32-125/1,1 | £958.00 | |
| 1300202404I | 3M/I32-160/1,5 | £1,062.00 | |
| 1300300004I | 3M/I32-160/2,2 | £1,105.00 | |
| 1310402404I | 3M/I32-200/3,0 | £1,250.00 | |
| 1310550004I | 3M/I32-200/4,0 | £1,471.00 | |
| 1310750006I | 3M/I32-200/5,5 | £1,650.00 | |
| 1310900004I | 3M/I32-200/7.5 | £1,852.00 | |
| 1320370004I | 3M/I40-125/1,5 | £1,062.00 | |
| 1320270004I | 3M/I40-125/2,2 | £1,078.00 | |
| 1320402404I | 3M/I40-160/3,0 | £1,417.00 | |
| 1320550004I | 3M/I40-160/4,0 | £1,599.00 | |
| 1330910006I | 3M/I40-200/11 | £2,849.00 | |
| 1330752404I | 3M/I40-200/5,5 | £1,835.00 | |
| 1330900004I | 3M/I40-200/7,5 | £2,138.00 | |
| 1330500004I | 3M/I50-125/2,2 | £1,109.00 | |
| 1330550004I | 3M/I50-125/3,0 | £1,279.00 | |
| 1330400004I | 3M/I50-125/4,0 | £1,339.00 | |
| 1330900006I | 3M/I50-160/5,5 | £1,762.00 | |
| 1330890006I | 3M/I50-160/7,5 | £2,052.00 | |
| 1330960006I | 3M/I50-200/11 | £2,681.00 | |
| 1330980006I | 3M/I50-200/15 | £3,325.00 | |
| 1330970006I | 3M/I50-200/9,2 | £2,340.00 | |
| 1344120004I | 3M/I65-125/4,0 | £1,855.00 | |
| 1344130004I | 3M/I65-125/5,5 | £2,157.00 | |
| 1344140004I | 3M/I65-125/7,5 | £2,390.00 | |
| 1345160004I | 3M/I65-160/11 | £3,055.00 | |
| 1345140004I | 3M/I65-160/7,5 | £2,481.00 | |
| 1345150004I | 3M/I65-160/9,2 | £2,900.00 |

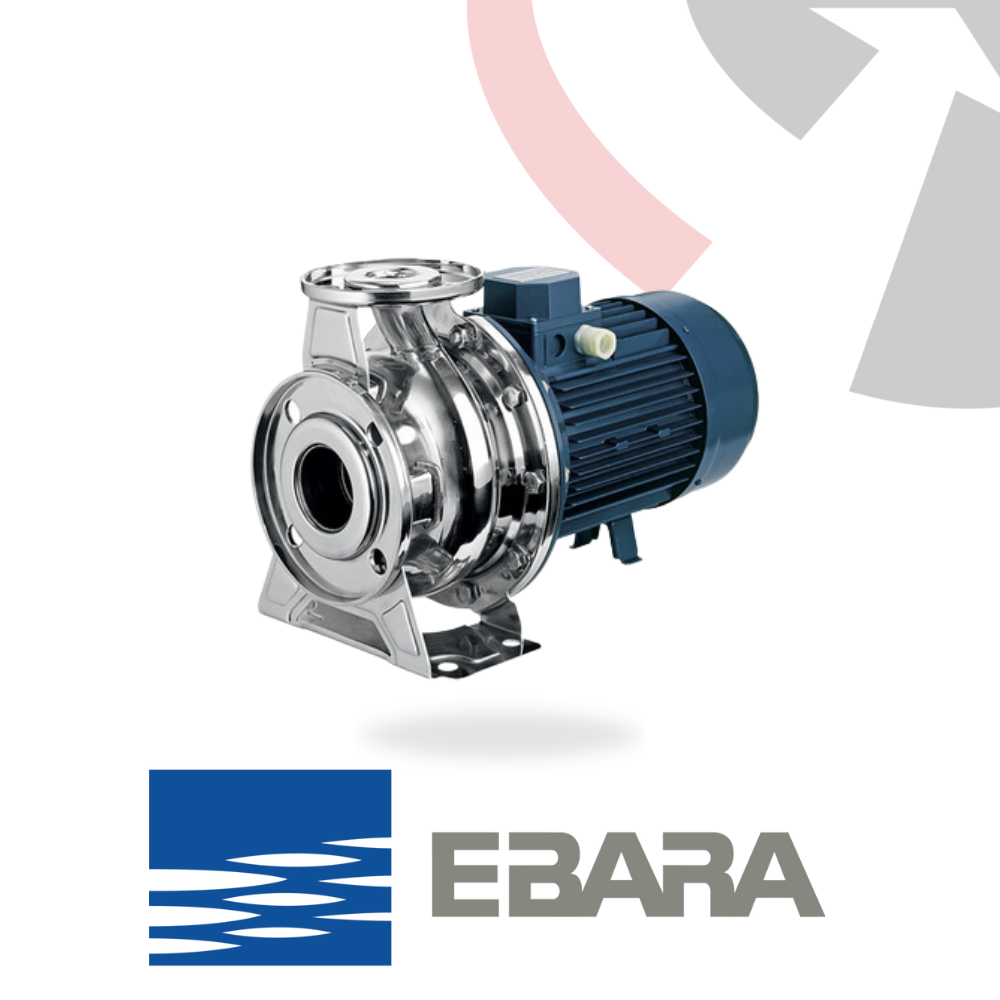

Ebara 3M Series Centrifugal Pump – AISI 304 Stainless Steel (2-Pole Motor)
High-Speed Centrifugal Pump for Water Pressure Boosting, HVAC and Industrial Systems
Performance
The Ebara 3M Series is a range of standardised centrifugal pumps built to EN 733 dimensions, equipped with high-speed 2-pole motors (2900 rpm) for increased flow and pressure. Designed for continuous-duty operation, this stainless steel pump delivers outstanding hydraulic performance with low energy consumption. Ideal for compact systems requiring strong and efficient water movement.
Applications
The 3M Series is suited to a wide range of fluid handling tasks in:
- Water supply and pressure boosting
- Heating and air conditioning (HVAC) systems
- Firefighting sets
- Irrigation and agriculture
- Industrial washing and process systems
- Cooling towers and swimming pools
- Drainage and circulation systems
Also available in AISI 316 for handling more aggressive or corrosive liquids.
Construction
Manufactured from corrosion-resistant AISI 304 stainless steel, the pump body, impeller and shaft are designed for long service life.
Key Specifications:
- Max pressure: 10 bar
- Motor type: 2-pole (2900 rpm)
- Temperature range (clear water):
- Standard seal: -10°C to +90°C
- H, HS, HW, HSW seals: up to +110°C
- E seal: up to +120°C
Motor voltage options:
- Single-phase 230V ±10%
- Three-phase 230/400V up to 4kW
- Three-phase 400/690V from 5.5kW
- Protection class: IP55
- Insulation class: F
- MEI rating: > 0.4
Delivery
Order the Ebara 3M Series Centrifugal Pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
