| Model | Price | Add |
|---|---|---|
| 01-10537 | A100B/KKPPP/TNU/TF/KTV/0512 | £1,791.00 | |
| 01-10715 | A100B/PPPPP/TNU/TF/PTV/0501 | £1,399.00 | |
| 01-10536 | A100B/PPPPP/TNU/TF/PTV/0512 | £1,020.00 | |
| 01-10393 | A100P/KKPPP/TNU/TF/KTV/0150 | £2,116.00 | |
| 01-10394 | A100P/KKPPP/TNU/TF/KTV/0151 | £2,116.00 | |
| 01-10395 | A100P/KKPPP/TNU/TF/KTV/0155 | £2,116.00 | |
| 01-11021 | A100P/KKPPP/VTS/VT/KTV/0151 | £2,156.00 | |
| 01-10915 | A100P/KKPPP/WFS/WF/KWF/0150 | £1,863.00 | |
| 01-10976 | A100P/KKPPP/WFS/WF/KWF/0155 | £1,863.00 | |
| 01-10978 | A100P/PPPPP/BNS/BN/PBN/0155 | £1,063.00 | |
| 01-10819 | A100P/PZPPP/TNL/TF/PTV/0686 | £2,033.00 | |
| 01-10363 | A100P/PPPPP/TNU/TF/PTV/0150 | £1,349.00 | |
| 01-10364 | A100P/PPPPP/TNU/TF/PTV/0151 | £1,349.00 | |
| 01-10365 | A100P/PPPPP/TNU/TF/PTV/0155 | £1,349.00 | |
| 01-10611 | A100P/PPPPP/TNU/TF/PTV/0160 | £1,349.00 | |
| 01-10820 | A100P/PPPPP/WFS/WF/PWF/0150 | £1,095.00 | |
| 01-10384 | A100P/PPPPP/WFS/WF/PWF/0151 | £1,095.00 | |
| 01-10433 | A100P/PPPPP/WFS/WF/PWF/0155 | £1,095.00 |
No matching variants found.

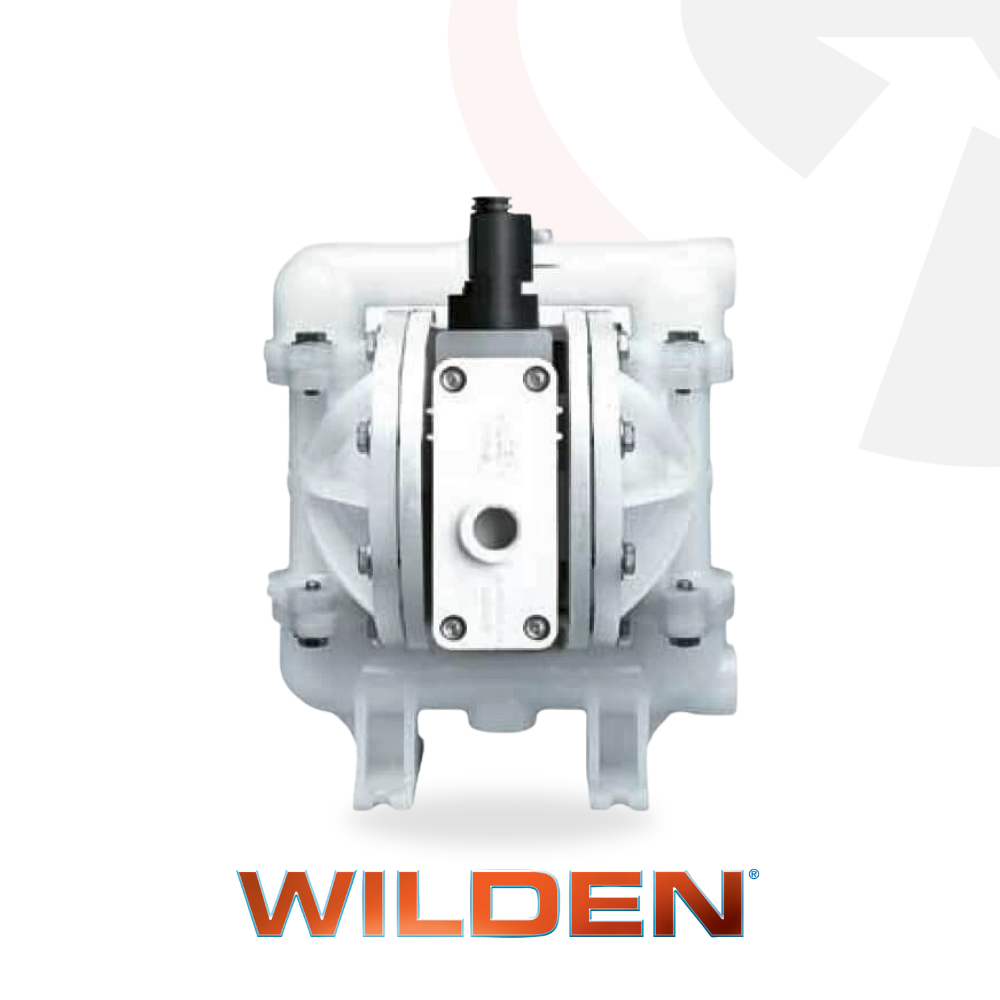

Wilden 13 mm (1/2") Accu-FloBolted Plastic AODD Pump - A100
Description
The Wilden 13 mm (1/2") Accu-FloBolted Plastic AODD Pump (A100) is engineered for precise applications such as batching, offering exceptional control through its integrated electronic solenoid system. This Air-Operated Double-Diaphragm (AODD) pump features a direct electrical interface that uses electrical impulses to stroke the pump, allowing for a variable stroke rate to meet your specific needs. With its robust bolted construction and compact design, the A100 is ideal for industries requiring accurate fluid transfer in smaller-scale operations.
Applications
- Batching processes
- Chemical dosing
- Fluid transfer in small-scale industrial systems
- Laboratory and testing applications
Features
- Integrated electronic solenoid control for precise stroke rate adjustments, ideal for batching and dosing.
- Direct electrical interface using electrical impulses instead of differential pressure for enhanced control.
- Multiple signal input voltage options: 24V DC, 12V DC, and 110V AC, with NEMA 5 compliance.
- Bolted construction for reliable containment and durability in demanding environments.
- High suction lift capability:
- Rubber: 6.6 m (21.5') dry, 9.0 m (29.5') wet
- PTFE: 5.7 m (18.7') dry, 9.3 m (30.6') wet
- Maximum flow rate:
- Rubber: 42.4 lpm (11.2 gpm)
- PTFE: 38.2 lpm (10.1 gpm)
- Handles solids up to 1.6 mm (1/16") for versatile fluid transfer.
- NPT/BSPT threaded connections for easy installation.

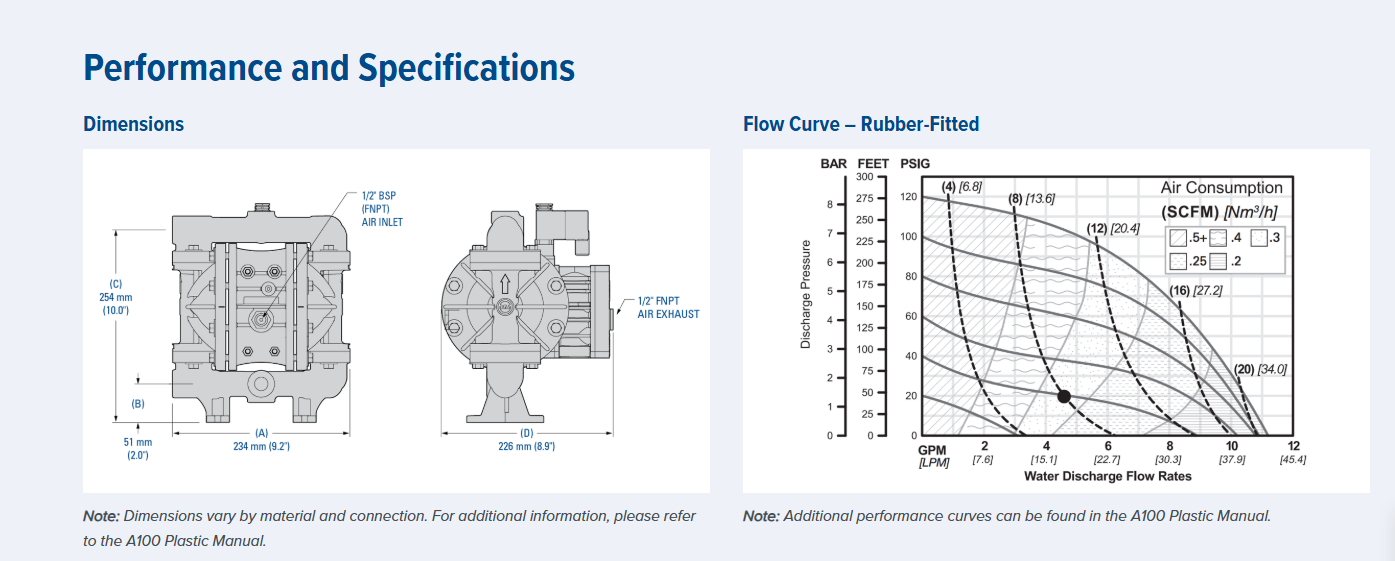

Technical Specifications
- Air Inlet: 1/4" FNPT
- Liquid Inlet: 13 mm (1/2")
- Liquid Discharge: 13 mm (1/2")
- Connection Type: NPT/BSPT (Threaded)
-
Max Suction Lift:
- Rubber: 6.6 m (21.5') Dry, 9.0 m (29.5') Wet
- PTFE: 5.7 m (18.7') Dry, 9.3 m (30.6') Wet
-
Max Flow Rate:
- Rubber: 42.4 lpm (11.2 gpm)
- PTFE: 38.2 lpm (10.1 gpm)
- Max Pressure: 8.6 bar (125 psi)
- Max Diameter Solids: 1.6 mm (1/16")
-
Displacement Per Stroke:
- Rubber: 0.11 L (0.03 gal)
- PTFE: 0.11 L (0.03 gal) (*1 cycle = 2 strokes)
Order the Wilden 13 mm (1/2") Accu-Flo„ Bolted Plastic AODD Pump (A100) from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
