| Estimated Delivery | Add | |||
|---|---|---|---|---|
| 01-10266 | A1P/KKPPP/TNU/TF/KTV/0150 | 01-10266 | A1P/KKPPP/TNU/TF/KTV/0150 | — |
£1,957.00
Save £490.00 (20% off)
|
|
| 01-10267 | A1P/KKPPP/TNU/TF/KTV/0151 | 01-10267 | A1P/KKPPP/TNU/TF/KTV/0151 | — |
£1,957.00
Save £490.00 (20% off)
|
|
| 01-10270 | A1P/KKPPP/TNU/TF/KTV/0155 | 01-10270 | A1P/KKPPP/TNU/TF/KTV/0155 | — |
£1,957.00
Save £490.00 (20% off)
|
|
| 01-10446 | A1P/KKPPP/WFS/WF/KWF/0151 | 01-10446 | A1P/KKPPP/WFS/WF/KWF/0151 | — |
£1,711.00
Save £428.00 (20% off)
|
|
| 01-10272 | A1P/PPPPP/TNU/TF/KTV/0150 | 01-10272 | A1P/PPPPP/TNU/TF/KTV/0150 | — |
£1,271.00
Save £318.00 (20% off)
|
|
| 01-10273 | A1P/PPPPP/TNU/TF/KTV/0151 | 01-10273 | A1P/PPPPP/TNU/TF/KTV/0151 | — |
£1,271.00
Save £318.00 (20% off)
|
|
| 01-10276 | A1P/PPPPP/TNU/TF/KTV/0155 | 01-10276 | A1P/PPPPP/TNU/TF/KTV/0155 | — |
£1,271.00
Save £318.00 (20% off)
|
|
| 01-10429 | A1P/PPPPP/VTS/VT/VT/0155 | 01-10429 | A1P/PPPPP/VTS/VT/VT/0155 | — |
£1,280.00
Save £320.00 (20% off)
|
|
| 01-10982 | A1P/PPPPP/WFS/TF/KWF/0150 | 01-10982 | A1P/PPPPP/WFS/TF/KWF/0150 | — |
£1,043.00
Save £261.00 (20% off)
|
|
| 01-10371 | A1P/PPPPP/WFS/WF/KWF/0150 | 01-10371 | A1P/PPPPP/WFS/WF/KWF/0150 | — |
£1,025.00
Save £256.00 (19% off)
|
|
| 01-10345 | A1P/PPPPP/WFS/WF/KWF/0151 | 01-10345 | A1P/PPPPP/WFS/WF/KWF/0151 | — |
£1,025.00
Save £256.00 (19% off)
|
|
| 01-10419 | A1P/PPPPP/WFS/WF/KWF/0155 | 01-10419 | A1P/PPPPP/WFS/WF/KWF/0155 | — |
£1,025.00
Save £256.00 (19% off)
|

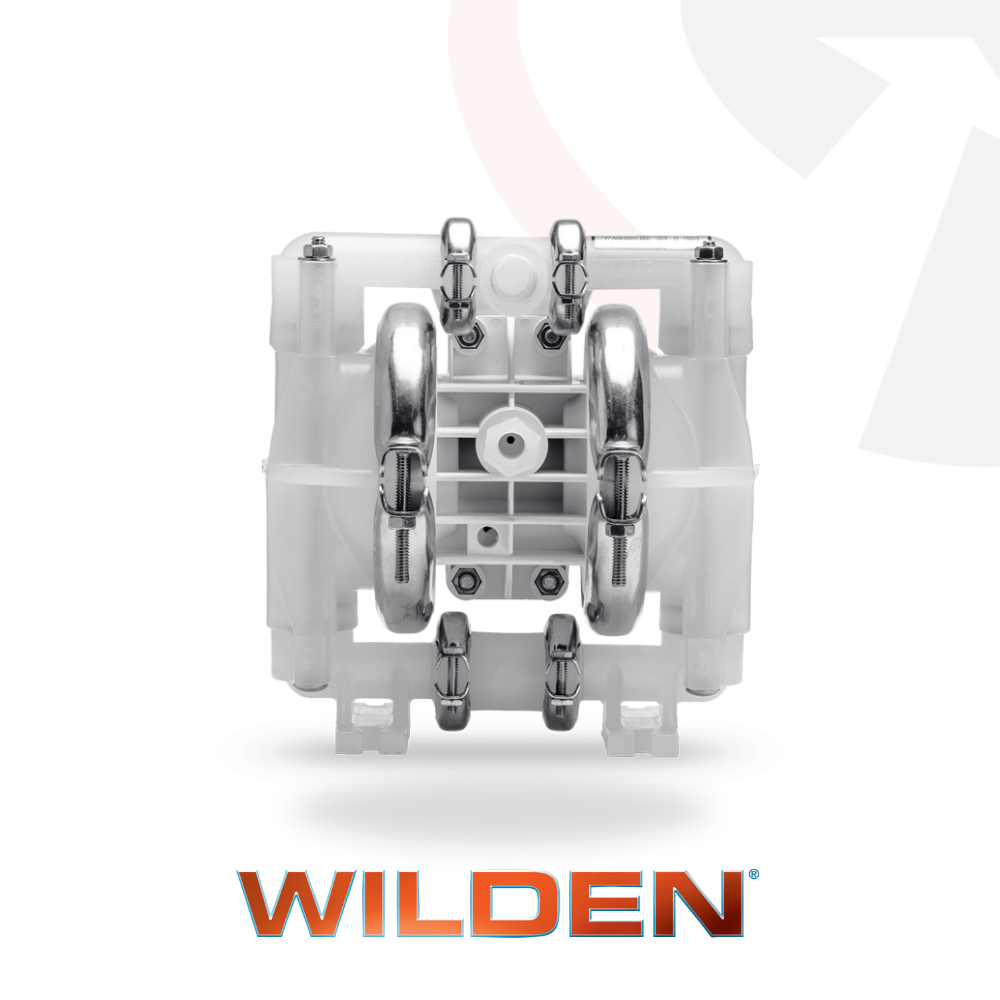

Wilden 13 mm (1/2") Accu-FloClamped Plastic AODD Pump - A1
The Wilden 13 mm (1/2") Accu-FloClamped Plastic AODD Pump (A1) is designed for precise electronic control in applications such as batching, chemical dosing, and blending. Part of the Wilden Accu-FloSeries, this Air-Operated Double-Diaphragm (AODD) pump features a direct electrical interface that uses electrical impulses to stroke the pump, providing a variable stroke rate for exacting fluid transfer. Its lightweight plastic construction with clamped design ensures durability and corrosion resistance, making the A1 ideal for industries requiring accurate fluid transfer in compact, chemical-compatible systems.
Applications
- Chemical dosing
- Adaptive dosing
- Batching processes
- Blending
- Systems and skids
Features
- Integrated electronic solenoid control with a direct electrical interface for precise stroke rate adjustments, perfect for batching and dosing.
- Utilises electrical impulses instead of differential pressure, allowing for a variable stroke rate tailored to your application.
- Multiple signal input voltage options: 24V DC, 12V DC, 24V AC, and 110V AC, with NEMA 5, NEMA 7, or ATEX compliance.
- Clamped plastic construction for corrosion resistance and reliable operation in chemical environments.
- High suction lift capability:
- Rubber: 6.05 m (20') dry, 8.99 m (29') wet
- PTFE: 5.18 m (17') dry, 8.99 m (29') wet
- Maximum flow rate:
- Rubber: 39 lpm (10.3 gpm)
- PTFE: 39 lpm (10.3 gpm)
- Handles solids up to 1.6 mm (1/16") for versatile fluid transfer.
- NPT/BSPT threaded connections for straightforward installation.
Technical Specifications
- Air Inlet: 1/4" FNPT
- Liquid Inlet: 13 mm (1/2")
- Liquid Discharge: 13 mm (1/2")
- Connection Type: NPT/BSPT (Threaded)
-
Max Suction Lift:
- Rubber: 6.05 m (20') Dry, 8.99 m (29') Wet
- PTFE: 5.18 m (17') Dry, 8.99 m (29') Wet
-
Max Flow Rate:
- Rubber: 39 lpm (10.3 gpm)
- PTFE: 39 lpm (10.3 gpm)
- Max Pressure: 8.6 bar (125 psi)
- Max Diameter Solids: 1.6 mm (1/16")
-
Displacement Per Stroke:
- Rubber: 0.12 L (0.031 gal)
- PTFE: 0.11 L (0.028 gal) (*1 cycle = 2 strokes)
Delivery
Order the Wilden 13 mm (1/2") Accu-FloClamped Plastic AODD Pump (A1) from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
