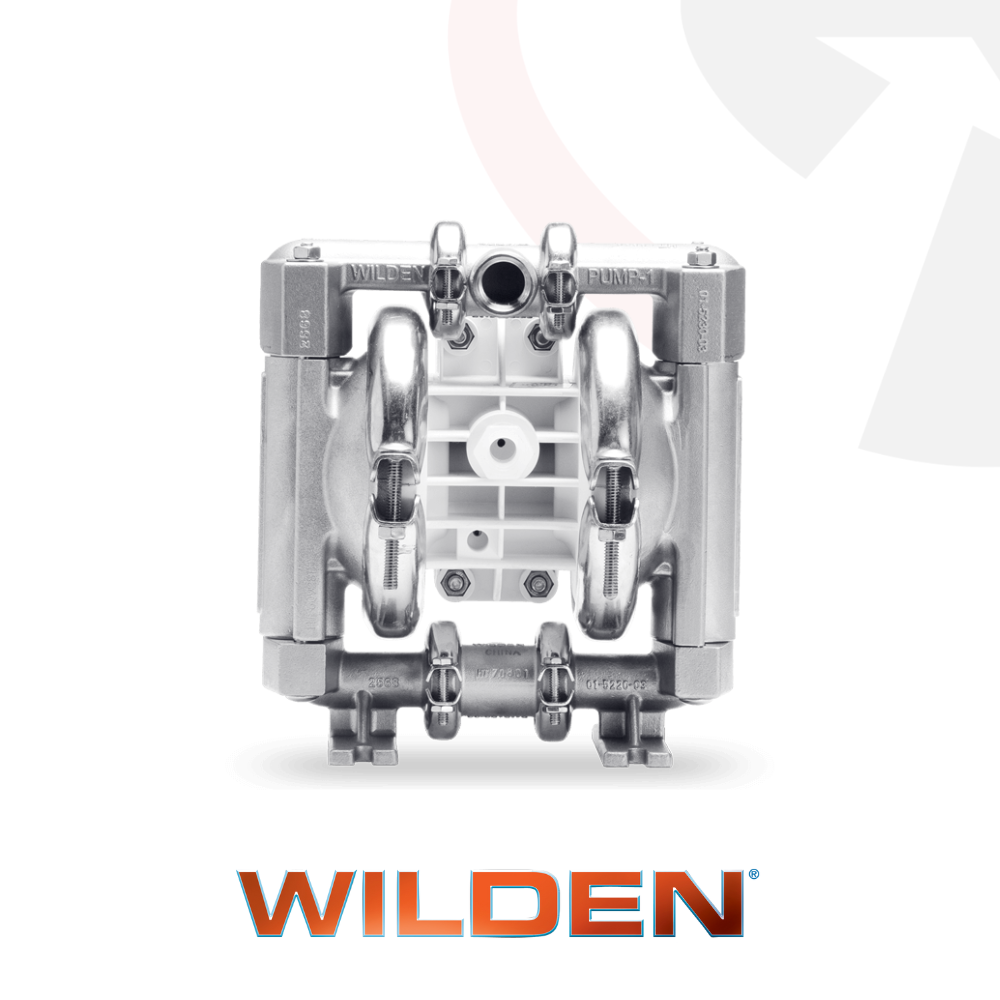

Wilden 13 mm (1/2") Accu-FloClamped Metal AODD Pump - A1

Description
The Wilden 13 mm (1/2") Accu-FloClamped Metal AODD Pump (A1) is designed for precise electronic control in applications such as batching, chemical dosing, and blending. Part of the Wilden Accu-FloSeries, this Air-Operated Double-Diaphragm (AODD) pump features a direct electrical interface that uses electrical impulses to stroke the pump, providing a variable stroke rate for exacting fluid transfer. Its robust clamped construction ensures durability, making the A1 ideal for industries requiring reliable performance in compact systems.

Applications

• Chemical dosing
• Adaptive dosing
• Batching processes
• Blending
• Systems and skids

Features

• Integrated electronic solenoid control with a direct electrical interface for precise stroke rate adjustments, perfect for batching and dosing.
• Utilises electrical impulses instead of differential pressure, allowing for a variable stroke rate tailored to your application.
• Multiple signal input voltage options: 24V DC, 12V DC, 24V AC, and 110V AC, with NEMA 5, NEMA 7, or ATEX compliance.
• Clamped construction for robust and reliable operation in demanding environments.
• High suction lift capability:
  • Rubber: 6.6 m (21.6') dry, 9.7 m (31.8') wet
  • PTFE: 5.7 m (18.7') dry, 9.2 m (30.1') wet
• Maximum flow rate:
  • Rubber: 40.5 lpm (10.7 gpm)
  • PTFE: 42 lpm (11 gpm)
• Handles solids up to 1.6 mm (1/16") for versatile fluid transfer.
• NPT/BSPT threaded connections for straightforward installation.

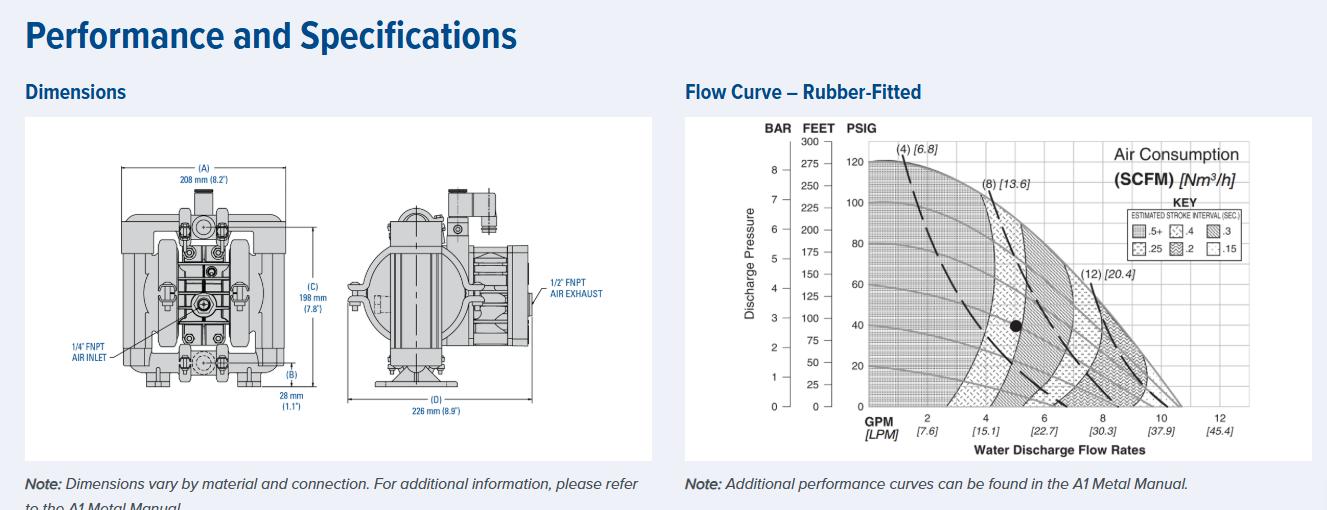

Technical Specifications

• Air Inlet: 1/4" FNPT
• Liquid Inlet: 13 mm (1/2")
• Liquid Discharge: 13 mm (1/2")
• Connection Type: NPT/BSPT (Threaded)
• Max Suction Lift:
  • Rubber: 6.6 m (21.6') Dry, 9.7 m (31.8') Wet
  • PTFE: 5.7 m (18.7') Dry, 9.2 m (30.1') Wet
• Max Flow Rate:
  • Rubber: 40.5 lpm (10.7 gpm)
  • PTFE: 42 lpm (11 gpm)
• Max Pressure: 8.6 bar (125 psi)
• Max Diameter Solids: 1.6 mm (1/16")
• Displacement Per Stroke:
  • Rubber: 0.12 L (0.031 gal)
  • PTFE: 0.09 L (0.024 gal) (*1 cycle = 2 strokes)
