| Estimated Delivery | Add | |||
|---|---|---|---|---|
| 01-10728 | A1P/AAPPP/BNS/BN/ABN/0151 | 01-10728 | A1P/AAPPP/BNS/BN/ABN/0151 | — |
£1,214.00
Save £303.00 (19% off)
|
|
| 01-10260 | A1P/AAPPP/TNU/TF/ATF/0150 | 01-10260 | A1P/AAPPP/TNU/TF/ATF/0150 | — |
£1,427.00
Save £356.00 (19% off)
|
|
| 01-10261 | A1P/AAPPP/TNU/TF/ATF/0151 | 01-10261 | A1P/AAPPP/TNU/TF/ATF/0151 | — |
£1,427.00
Save £356.00 (19% off)
|
|
| 01-10264 | A1P/AAPPP/TNU/TF/ATF/0155 | 01-10264 | A1P/AAPPP/TNU/TF/ATF/0155 | — |
£1,427.00
Save £356.00 (19% off)
|
|
| 01-10368 | A1P/AAPPP/WFS/WF/AWF/0151 | 01-10368 | A1P/AAPPP/WFS/WF/AWF/0151 | — |
£1,245.00
Save £311.00 (19% off)
|

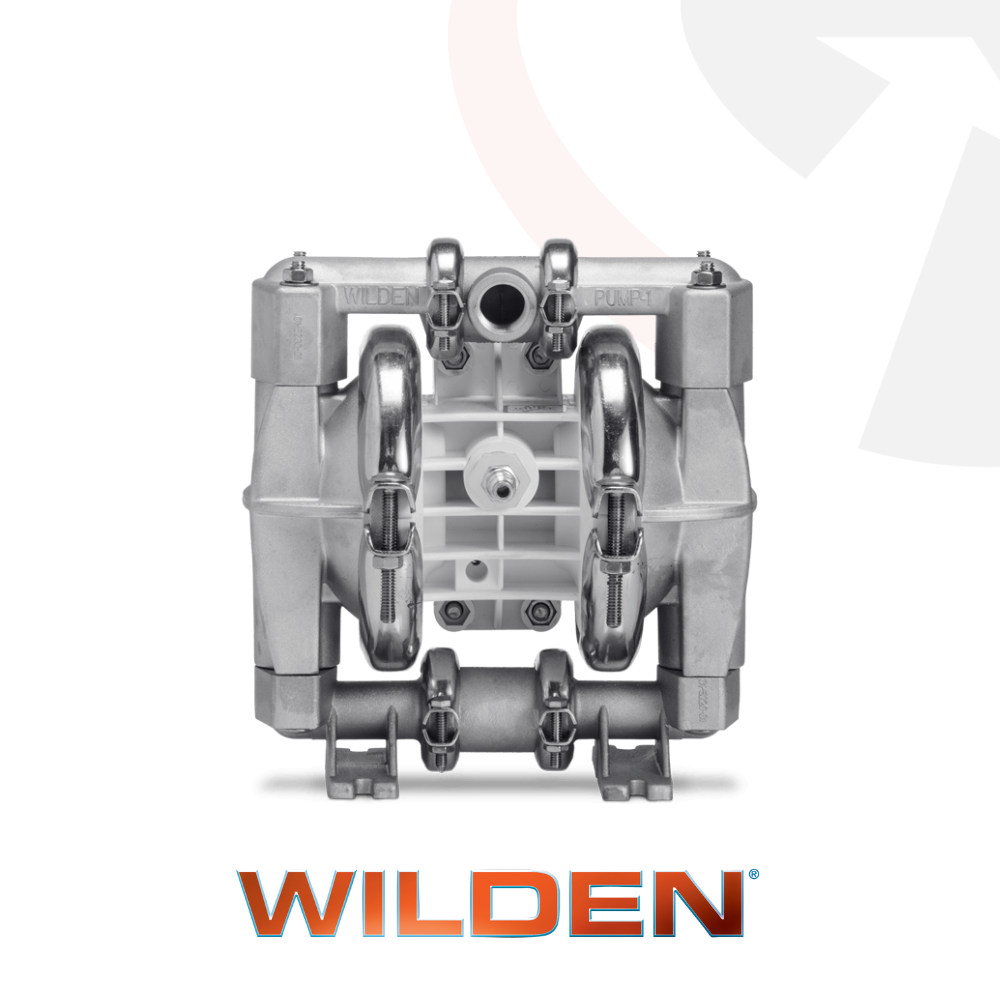

Wilden 13 mm (1/2") Accu-FloClamped Metal AODD Pump - A1
Description
The Wilden 13 mm (1/2") Accu-FloClamped Metal AODD Pump (A1) is designed for precise electronic control in applications such as batching, chemical dosing, and blending. Part of the Wilden Accu-FloSeries, this Air-Operated Double-Diaphragm (AODD) pump features a direct electrical interface that uses electrical impulses to stroke the pump, providing a variable stroke rate for exacting fluid transfer. Its robust clamped construction ensures durability, making the A1 ideal for industries requiring reliable performance in compact systems.
Applications
- Chemical dosing
- Adaptive dosing
- Batching processes
- Blending
- Systems and skids
Features
- Integrated electronic solenoid control with a direct electrical interface for precise stroke rate adjustments, perfect for batching and dosing.
- Utilises electrical impulses instead of differential pressure, allowing for a variable stroke rate tailored to your application.
- Multiple signal input voltage options: 24V DC, 12V DC, 24V AC, and 110V AC, with NEMA 5, NEMA 7, or ATEX compliance.
- Clamped construction for robust and reliable operation in demanding environments.
- High suction lift capability:
- Rubber: 6.6 m (21.6') dry, 9.7 m (31.8') wet
- PTFE: 5.7 m (18.7') dry, 9.2 m (30.1') wet
- Maximum flow rate:
- Rubber: 40.5 lpm (10.7 gpm)
- PTFE: 42 lpm (11 gpm)
- Handles solids up to 1.6 mm (1/16") for versatile fluid transfer.
- NPT/BSPT threaded connections for straightforward installation.

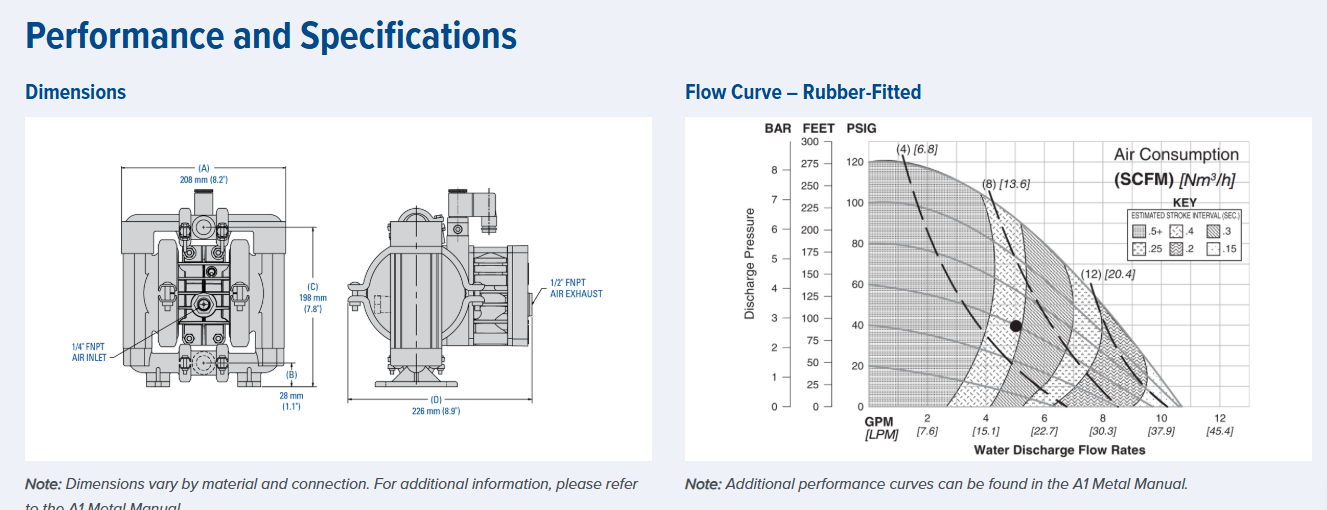

Technical Specifications
- Air Inlet: 1/4" FNPT
- Liquid Inlet: 13 mm (1/2")
- Liquid Discharge: 13 mm (1/2")
- Connection Type: NPT/BSPT (Threaded)
-
Max Suction Lift:
- Rubber: 6.6 m (21.6') Dry, 9.7 m (31.8') Wet
- PTFE: 5.7 m (18.7') Dry, 9.2 m (30.1') Wet
-
Max Flow Rate:
- Rubber: 40.5 lpm (10.7 gpm)
- PTFE: 42 lpm (11 gpm)
- Max Pressure: 8.6 bar (125 psi)
- Max Diameter Solids: 1.6 mm (1/16")
-
Displacement Per Stroke:
- Rubber: 0.12 L (0.031 gal)
- PTFE: 0.09 L (0.024 gal) (*1 cycle = 2 strokes)
Delivery
Order the Wilden 13 mm (1/2") Accu-FloClamped Metal AODD Pump (A1) from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
