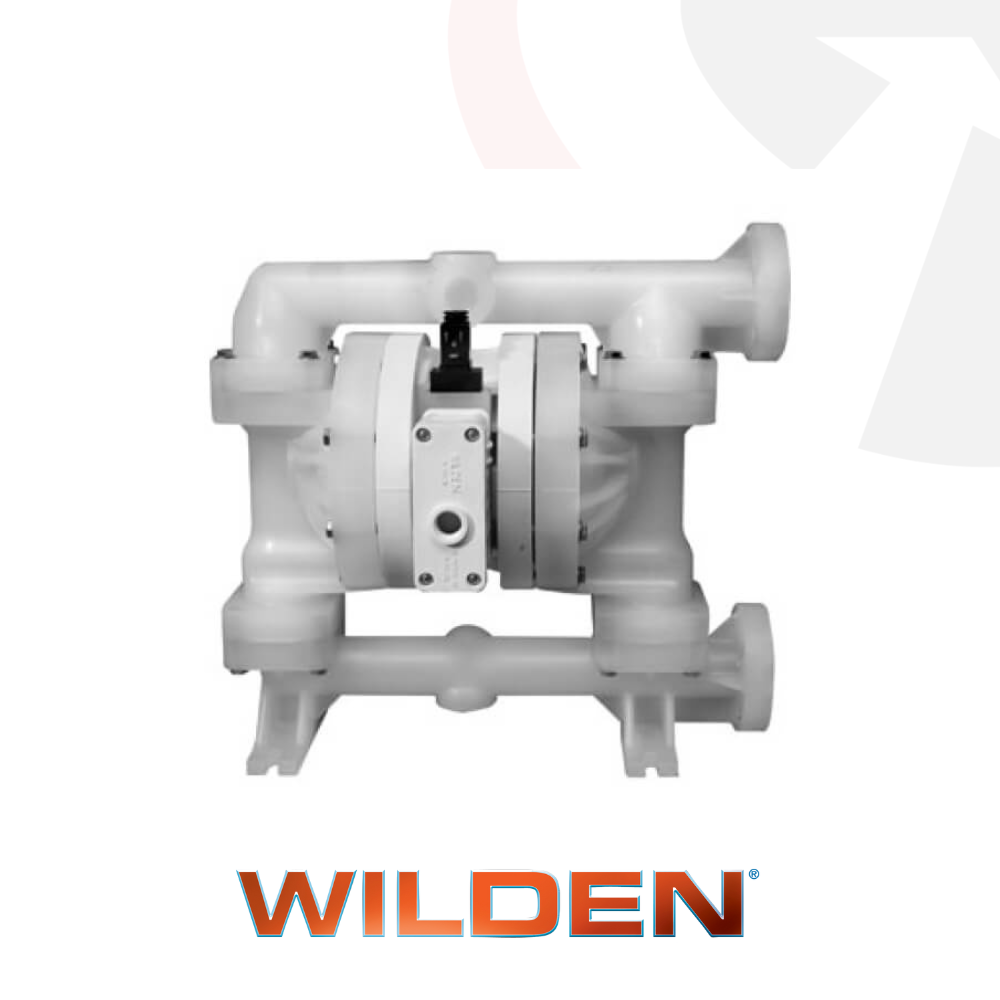

Wilden 25 mm (1") Accu-FloBolted Plastic AODD Pump - A200
Description
The Wilden 25 mm (1") Accu-FloBolted Plastic AODD Pump (A200) is engineered for precise electronic control in applications requiring higher flow rates, such as batching, chemical dosing, and blending. Part of the Wilden Accu-FloSeries, this Air-Operated Double-Diaphragm (AODD) pump features a direct electrical interface that uses electrical impulses to stroke the pump, providing a variable stroke rate for exacting fluid transfer. With an impressive maximum flow rate of 170 lpm (45 gpm), the A200 offers enhanced throughput for demanding applications. Its bolted plastic construction ensures corrosion resistance and durability, making it ideal for industries needing reliable performance in chemical-compatible systems.
Applications
- Chemical dosing
- Adaptive dosing
- Batching processes
- Blending
- Systems and skids
Features
- High-capacity flow rate of 170 lpm (45 gpm), ideal for applications requiring greater throughput.
- Integrated electronic solenoid control with a direct electrical interface for precise stroke rate adjustments, perfect for batching and dosing.
- Utilises electrical impulses instead of differential pressure, allowing for a variable stroke rate tailored to your application.
- Multiple signal input voltage options: 24V DC, 12V DC, 24V AC, and 110V AC, with NEMA 5, NEMA 7, or ATEX compliance.
- Bolted plastic construction for corrosion resistance and reliable operation in chemical environments.
- High suction lift capability:
- Rubber: 4.8 m (15.9') dry, 9.3 m (30.6') wet
- PTFE: 4.8 m (15.9') dry, 9.3 m (30.6') wet
- Handles solids up to 4.8 mm (3/16") for versatile fluid transfer.
- DIN/ANSI flanged connections for secure installation.

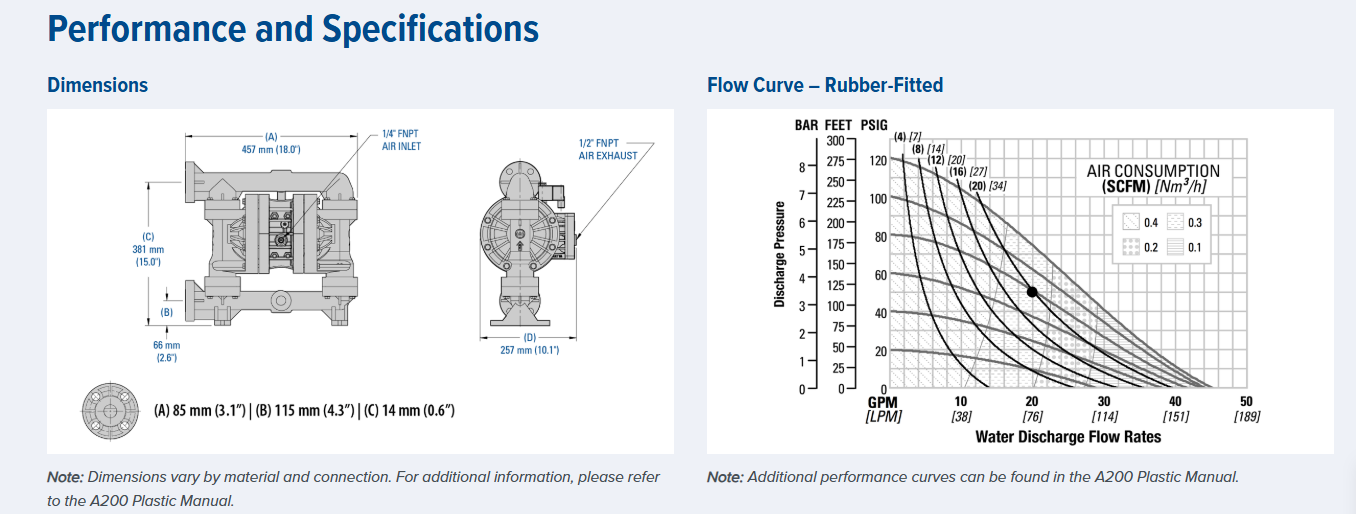

Technical Specifications
- Air Inlet: 1/4" FNPT
- Liquid Inlet: 25 mm (1")
- Liquid Discharge: 25 mm (1")
- Connection Type: DIN/ANSI (Flanged)
-
Max Suction Lift:
- Rubber: 4.8 m (15.9') Dry, 9.3 m (30.6') Wet
- PTFE: 4.8 m (15.9') Dry, 9.3 m (30.6') Wet
-
Max Flow Rate:
- Rubber: 170 lpm (45 gpm)
- PTFE: 170 lpm (45 gpm)
- Max Pressure: 8.6 bar (125 psi)
- Max Diameter Solids: 4.8 mm (3/16")
-
Displacement Per Stroke:
- Rubber: 0.34 L (0.09 gal)
- PTFE: 0.34 L (0.09 gal) (*1 cycle = 2 strokes)
Delivery
Order the Wilden 25 mm (1") Accu-FloBolted Plastic AODD Pump (A200) from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
