| Estimated Delivery | Add | |||
|---|---|---|---|---|
| 02-10848 | A2P/PKPPP/WFS/WF/PWF/0265 | 02-10848 | A2P/PKPPP/WFS/WF/PWF/0265 | — |
£1,582.00
Save £395.00 (19% off)
|
|
| 02-11809 | A2P/PKPPP/WFS/WF/PWF/0263 | 02-11809 | A2P/PKPPP/WFS/WF/PWF/0263 | — |
£1,581.00
Save £396.00 (20% off)
|
|
| 02-12176 | A2P/PKPPP/WFS/TF/KTV/0263 | 02-12176 | A2P/PKPPP/WFS/TF/KTV/0263 | — |
£1,662.00
Save £415.00 (19% off)
|
|
| 02-12407 | A2P/PKPPP/VTS/VT/PTV/0263 | 02-12407 | A2P/PKPPP/VTS/VT/PTV/0263 | — |
£1,965.00
Save £491.00 (19% off)
|
|
| 02-10616 | A2P/PKPPP/TNU/TF/PTV/0265 | 02-10616 | A2P/PKPPP/TNU/TF/PTV/0265 | — |
£1,979.00
Save £495.00 (20% off)
|
|
| 02-10614 | A2P/PKPPP/TNU/TF/PTV/0263 | 02-10614 | A2P/PKPPP/TNU/TF/PTV/0263 | — |
£1,979.00
Save £495.00 (20% off)
|
|
| 02-10612 | A2P/PKPPP/TNU/TF/PTV/0261 | 02-10612 | A2P/PKPPP/TNU/TF/PTV/0261 | — |
£1,979.00
Save £495.00 (20% off)
|
|
| 02-12154 | A2P/PKPPP/TEU/TF/PTV/0454 | 02-12154 | A2P/PKPPP/TEU/TF/PTV/0454 | — |
£2,034.00
Save £509.00 (20% off)
|
|
| 02-12316 | A2P/PKPPP/NES/NE/PBN/0263 | 02-12316 | A2P/PKPPP/NES/NE/PBN/0263 | — |
£1,494.00
Save £373.00 (19% off)
|
|
| 02-12134 | A2P/KKPPP/WFS/WF/KWF/0265 | 02-12134 | A2P/KKPPP/WFS/WF/KWF/0265 | — |
£2,855.00
Save £714.00 (20% off)
|
|
| 02-11311 | A2P/KKPPP/VTS/VT/KTV/0261 | 02-11311 | A2P/KKPPP/VTS/VT/KTV/0261 | — |
£3,240.00
Save £810.00 (20% off)
|
|
| 02-10608 | A2P/KKPPP/TNU/TF/KTV/0263 | 02-10608 | A2P/KKPPP/TNU/TF/KTV/0263 | — |
£3,254.00
Save £814.00 (20% off)
|
|
| 02-10606 | A2P/KKPPP/TNU/TF/KTV/0261 | 02-10606 | A2P/KKPPP/TNU/TF/KTV/0261 | — |
£3,254.00
Save £814.00 (20% off)
|

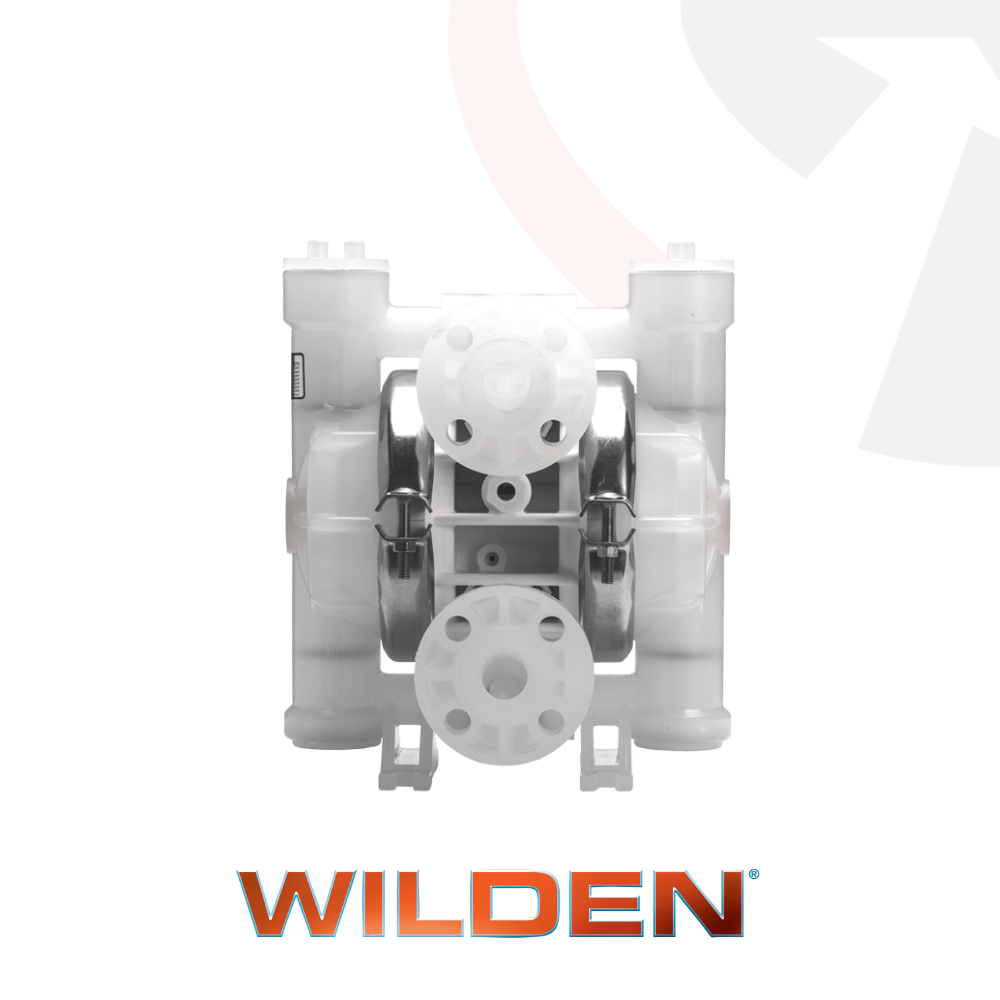

Wilden 25 mm (1") Accu-FloClamped Plastic AODD Pump - A2
Description
The Wilden 25 mm (1") Accu-FloClamped Plastic AODD Pump (A2) is designed for precise electronic control in applications such as batching, chemical dosing, and blending. Part of the Wilden Accu-FloSeries, this Air-Operated Double-Diaphragm (AODD) pump features a direct electrical interface that uses electrical impulses to stroke the pump, providing a variable stroke rate for exacting fluid transfer. Its clamped plastic construction ensures corrosion resistance and ease of maintenance, making the A2 ideal for industries requiring accurate fluid transfer in chemical-compatible systems.
Applications
- Chemical dosing
- Adaptive dosing
- Batching processes
- Blending
- Systems and skids
Features
- Integrated electronic solenoid control with a direct electrical interface for precise stroke rate adjustments, perfect for batching and dosing.
- Utilises electrical impulses instead of differential pressure, allowing for a variable stroke rate tailored to your application.
- Multiple signal input voltage options: 24V DC, 12V DC, 24V AC, and 110V AC, with NEMA 5, NEMA 7, or ATEX compliance.
- Clamped plastic construction for corrosion resistance and simplified maintenance in chemical environments.
- High suction lift capability:
- Rubber: 6.2 m (20.4') dry, 9 m (29.5') wet
- PTFE: 5.2 m (17') dry, 9 m (29.5') wet
- Maximum flow rate:
- Rubber: 136 lpm (36 gpm)
- PTFE: 110 lpm (29 gpm)
- Handles solids up to 3.2 mm (1/8") for versatile fluid transfer.
- DIN/ANSI flanged connections for secure installation.

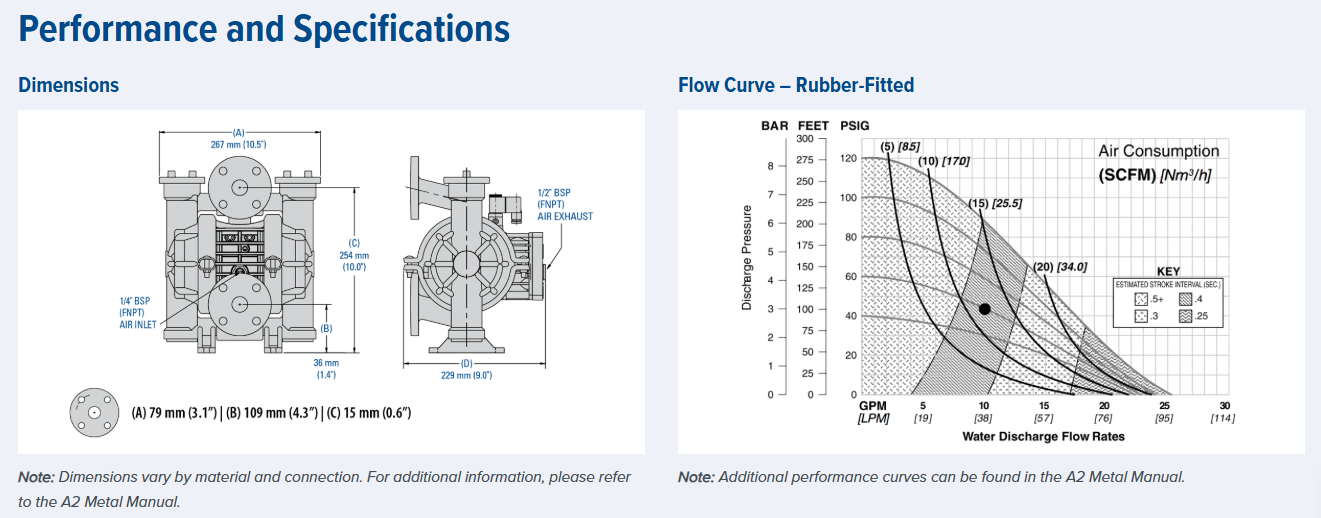

Technical Specifications
- Air Inlet: 1/4" FNPT
- Liquid Inlet: 25 mm (1")
- Liquid Discharge: 25 mm (1")
- Connection Type: DIN/ANSI (Flanged)
-
Max Suction Lift:
- Rubber: 6.2 m (20.4') Dry, 9 m (29.5') Wet
- PTFE: 5.2 m (17') Dry, 9 m (29.5') Wet
-
Max Flow Rate:
- Rubber: 136 lpm (36 gpm)
- PTFE: 110 lpm (29 gpm)
- Max Pressure: 8.6 bar (125 psi)
- Max Diameter Solids: 3.2 mm (1/8")
-
Displacement Per Stroke:
- Rubber: 0.12 L (0.030 gal)
- PTFE: 0.11 L (0.028 gal) (*1 cycle = 2 strokes)
Delivery
Order the Wilden 25 mm (1") Accu-FloClamped Plastic AODD Pump (A2) from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
