| Model | Price | Add |
|---|---|---|
| 1100060004I | AGA/A0.60T | £216.00 | |
| 1100060000E | AGA/E0.60M | £216.00 | |
| 1100060100E | AGA/E0.60MGO | £242.00 | |
| 1100090000E | AGA/E0.75M | £225.00 | |
| 1100090100E | AGA/E0.75MGO | £249.00 | |
| 1100100000E | AGA/E1.00M | £242.00 | |
| 1100100100E | AGA/E1.00MGO | £264.00 | |
| 1110150000E | AGA/E1.50M | £396.00 | |
| 1110200000E | AGA/E2.00M | £456.00 | |
| 1100100004I | AGA/I1.00T | £269.00 | |
| 1100100104I | AGA/I1.00TGO | £336.00 | |
| 1110150004I | AGA/I1.50T | £418.00 | |
| 1110200004I | AGA/I2.00T | £484.00 | |
| 1110300004I | AGA/I3.00T | £498.00 | |
| 1100090004I | AGA0.75T | £225.00 | |
| 1120150000E | AGC/E1.50M | £418.00 | |
| 1120200000E | AGC/E2.00M | £468.00 | |
| 1120150004I | AGC/I1.50T | £418.00 | |
| 1120200004I | AGC/I2.00T | £484.00 | |
| 1120300004I | AGC/I3.00T | £501.00 |

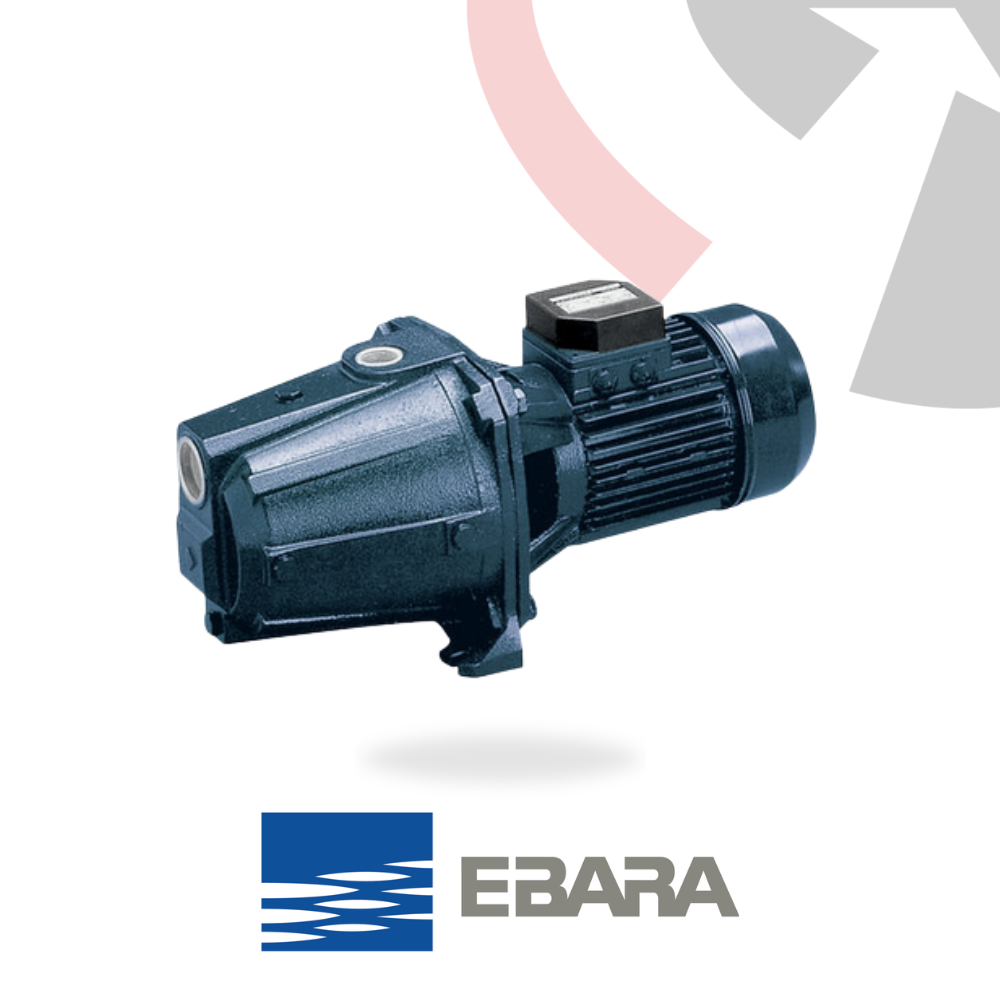

Ebara AGA - AGC Self-Priming Centrifugal Pump - Cast Iron
Performance
The Ebara AGA - AGC self-priming centrifugal pump delivers flow rates from 0.3 to 9.6 m³/h and total heads from 16.5 to 68 m. Its Venturi unit ensures efficient suction up to 8 m, providing reliable water transfer for residential UK applications.
Applications
Designed for UK domestic and irrigation use, the AGA - AGC is ideal for domestic pressurisation, small-scale garden irrigation, and vehicle washing. Its suited for handling clean water in general residential and light civil settings.
Construction
Featuring a cast iron pump body, the AGA - AGC is lightweight and easy to transport. The impeller is PPE+PS with glass fibres for AGA 0.60-0.75-1.00 models, and brass for the rest of the range. It includes a stainless steel shaft, a Ceramic/Carbon/NBR mechanical seal, and motor support in aluminium or cast iron depending on the model.
Key Specifications:
- Flow rate: from 0.3 to 9.6 m³/h
- Total head: from 16.5 to 68 m
- Max. working pressure: 6 bar for AGA 0.60-0.75-1.00, 10 bar for the rest of the range
- Max. temperature of the liquid: 45°C
- Max. suction depth: 8 m
- Poles: 2
- Insulation class: F
- Protection degree: IP44
- Voltage: Single-phase 1230V ±10%, Three-phase 3230/400V +10%
- Pump body: Cast iron
- Impeller: PPE+PS with glass fibres for AGA 0.60-0.75-1.00, brass for the rest of the range
- Shaft: Stainless steel AISI 303 (EN 1.4305) (part in contact with liquid)
- Mechanical seal: Ceramic/Carbon/NBR (standard)
- Motor support: Aluminium for AGA 0.60-0.75-1.00, Cast iron for the rest of the range
Delivery
Order the Ebara AGA - AGC self-priming centrifugal pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
