Pedrollo Pumps

SKU:BCm 10/50 | 2301440

Delivery Time: 3-5 Days Delivery

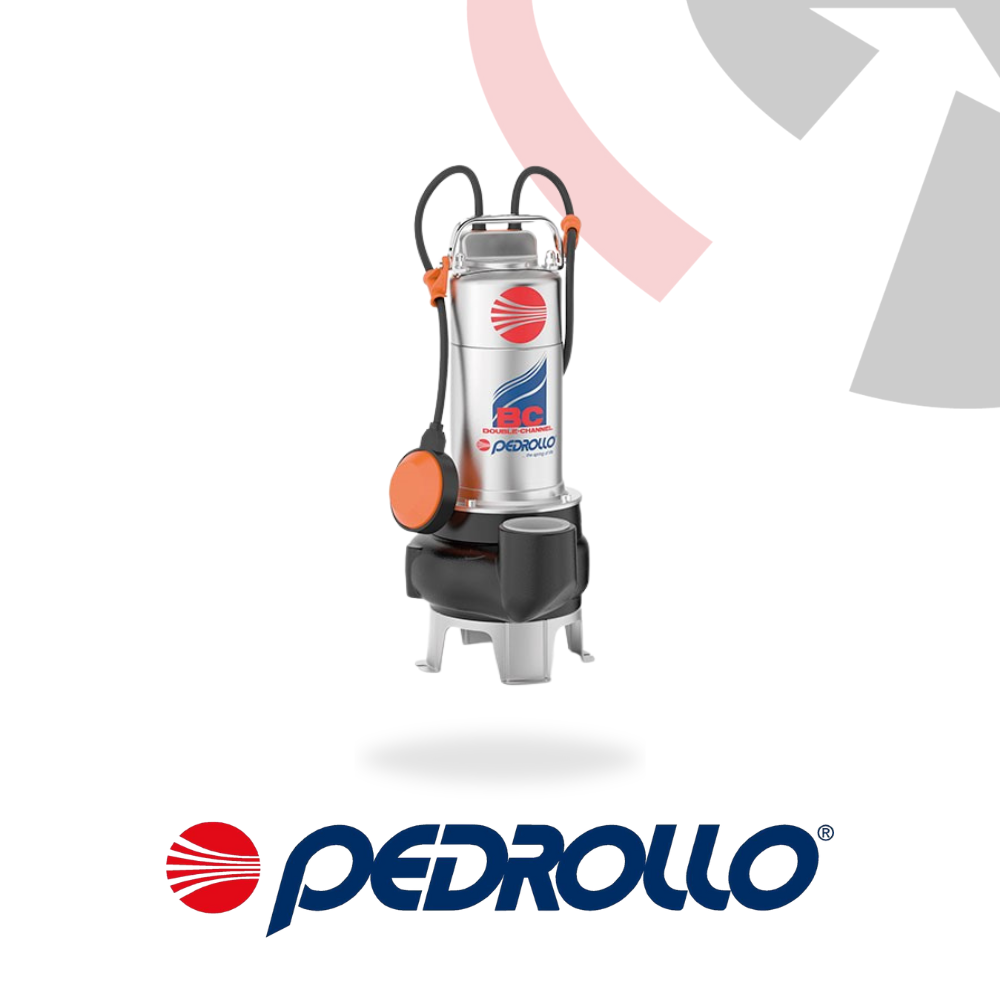

Pedrollo BC Submersible Sewage Pumps

Compact Submersible Pump for Domestic Wastewater and Drainage

Performance

The Pedrollo BC series offers robust submersible solutions for draining dirty and sewage water. With flow rates up to 850 l/min (51 m³/h) and heads up to 17 metres, these pumps are equipped with a two-channel stainless steel impeller capable of handling solids up to 50 mm in diameter. Designed for continuous-duty in challenging environments, they are suitable for both temporary and permanent installations.

Applications

• Drainage of wastewater and sewage in residential, civil and industrial areas
• Pumping sludge-mixed water or surface runoff
• Ideal for properties with flood risk or complex drainage needs

Construction

• Pump housing: Cast iron
• Impeller: Precision-cast stainless steel AISI 304 (two-channel)
• Motor sleeve: Stainless steel AISI 304
• Shaft: Stainless steel AISI 431
• Motor: 2-pole asynchronous motor
• Ingress protection: IP68

Key Specifications

• Max flow rate: 850 l/min (51 m³/h)
• Max head: 17 m
• Max liquid temperature: +40°C
• Suspended solids capacity: up to Ø 50 mm
• Max submersion depth: 5 m (with correct cable length)
• Minimum immersion for continuous use:
  • 290 mm for BC 10/50
  • 330 mm for BC 15/50
  • 360 mm for BC 20/50

Additional Features

• Supplied with:
  • 5 m power cable for BC 10
  • 10 m power cable for BC 15 and BC 20
  • Float switch included with single-phase versions
• Available on request with:
  • Extended cable lengths
  • Alternative voltages or 60 Hz frequency

Order the Pedrollo BC Submersible Pump from pumpsandgearboxesdirect.com for free UK mainland delivery.
