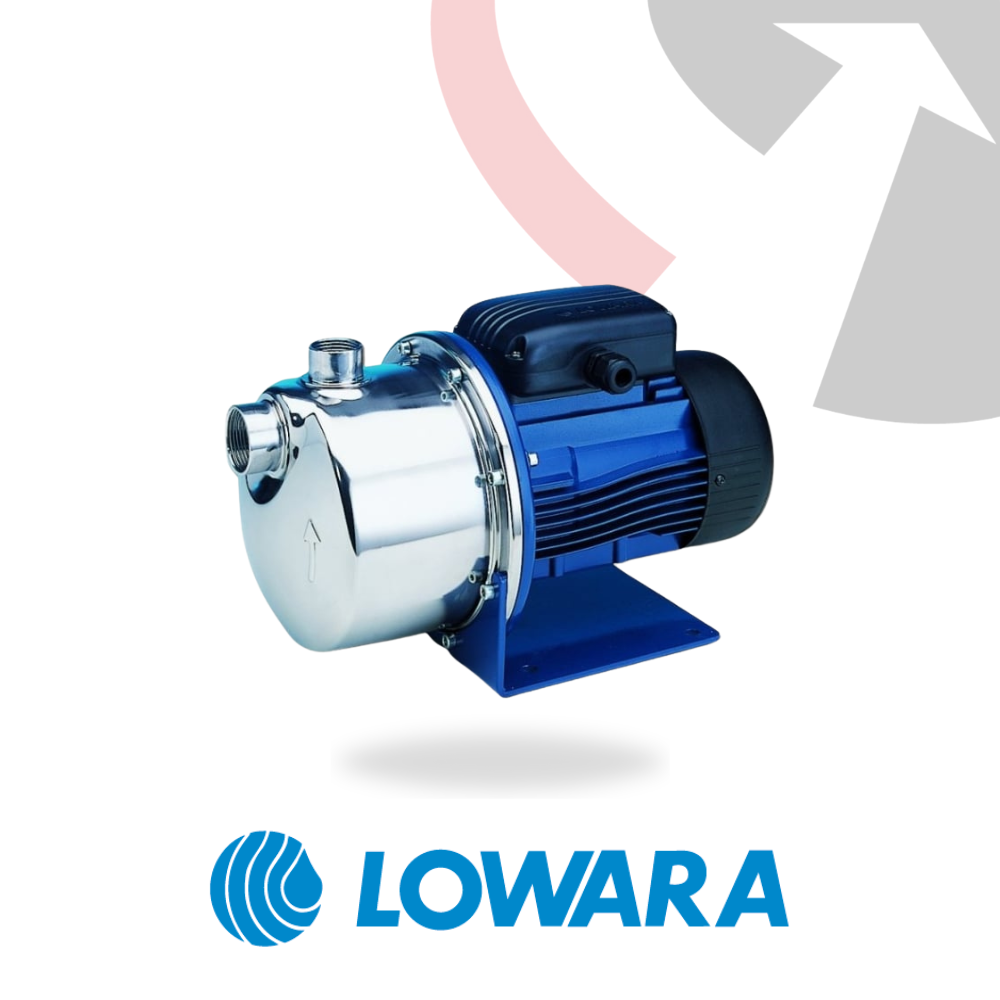

Lowara BG Series – Self-Priming Centrifugal Pumps

Specifications

PUMP

• Delivery: up to 4.20 m³/h
• Head: up to 53 m
• Maximum working pressure: 8 bar (PN 8)
• Maximum total lift: 8 m
• Temperature of pumped liquid: -10°C to +40°C
• Maximum ambient temperature: +40°C
• Motor power: from 0.37 kW to 1.1 kW

MOTOR

• Asynchronous, squirrel cage rotor, enclosed construction in aluminium casing, external ventilation
• Protection: IP55
• Class 155 (F) insulation
• Performances according to EN 60034-1
• Maximum ambient temperature: 40°C
• Standard voltage:
  • Single-phase version: 220-240 V 50 Hz, 2 poles with built-in automatic reset overload protection
  • Three-phase version: 220-240/380-415 V 50 Hz; overload protection to be provided by the user

Construction Features

• Close-coupled self-priming centrifugal pumps with built-in ejector system, designed to remain primed even in the presence of water-dissolved gases
• Extensive use of pressed stainless steel ensures a high-performance, durable, and lightweight pump
• “Garden” version available with handle, cable with plug, and terminal box with built-in switch

Market Sectors

• Civil, Agricultural, Industrial

Applications

• Water distribution
• Pressure boosting
• Irrigation
• Washing
• Rainwater collection
• Industrial washing machines and commercial dishwashers
• Swimming pools
• Fountains
