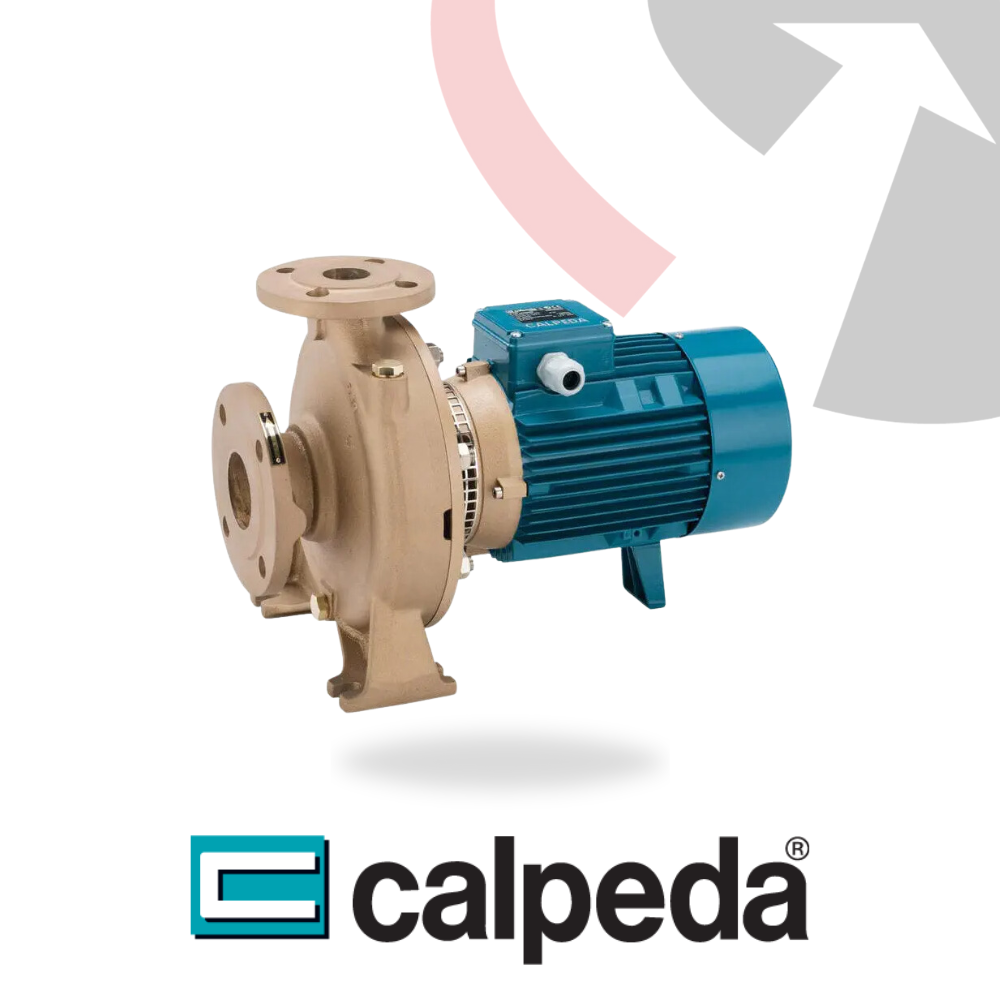

Calpeda BNM Bronze Close-Coupled Centrifugal Pumps:
Robust bronze pumps for clean water transfer in domestic, marine, and industrial systems
Flow: Up to 66 m³/h
Head: Up to 114 m
Power: 0.37 to 9.2 kW
Performance:
The Calpeda BNM series includes bronze close-coupled centrifugal pumps with a single impeller, ideal for clean water handling in chemically treated, coastal, or aggressive water environments. These pumps are built for long-term reliability, especially in marine, industrial, and HVAC applications where corrosion resistance is essential.
Applications:
Recommended for:
-
Clean water circulation and supply systems
-
Heating, cooling, and air-conditioning circuits
-
Marine and coastal installations
-
Process and light industrial use
-
Irrigation systems
Construction:
-
Single-impeller centrifugal pump
-
Bronze pump casing and lantern bracket (CC480K EN 1982)
-
Threaded ports ISO 228/1 (BS 2779)
-
Brass or bronze impellers (depending on model)
-
AISI 316 stainless steel shaft
-
Carbon-ceramic mechanical seal
-
Fully painted for added protection
Operating Conditions:
Liquid temperature: -10 °C to +90 °C
Ambient temperature: Up to 40 °C
Total suction lift: Up to 7 m
Max working pressure: 10 bar
Continuous duty (S3 60% for single-phase up to 1.8 kW)
Motor:
2-pole induction motor, 50 Hz (n ≈ 2900 rpm)
Three-phase: 230/400 V (up to 3 kW), 400/690 V (from 4 kW)
Single-phase (BNMM): 230 V ±10% with thermal protection
Insulation class F, protection IP54
IE2 class for single-phase up to 1.1 kW
IE3 class for three-phase motors (IE2 up to 0.65 kW)
