CA | CAM | Self-Priming liquid ring Pumps

Calpeda CA | CAM Self-Priming Liquid Ring Pumps

Compact liquid ring pumps for handling air-entrained water and unstable suction conditions.

Flow: 0.12 to 2.4 m³/h
Head: 6.5 to 53 m
Power: 0.15 to 0.75 kW

Performance:
The Calpeda CA and CAM are self-priming liquid ring pumps with a star impeller and anti-lock wear ring, designed for consistent performance in systems with entrained air or unstable suction flow. These close-coupled pumps maintain reliable priming and are supplied fully painted for protection and longevity.

Applications:
Suitable for:

• Pumping clean, non-abrasive, non-aggressive liquids

• Water containing air or gas

• Drawing water from wells

• Pressure boosting (subject to local regulations)

Construction:

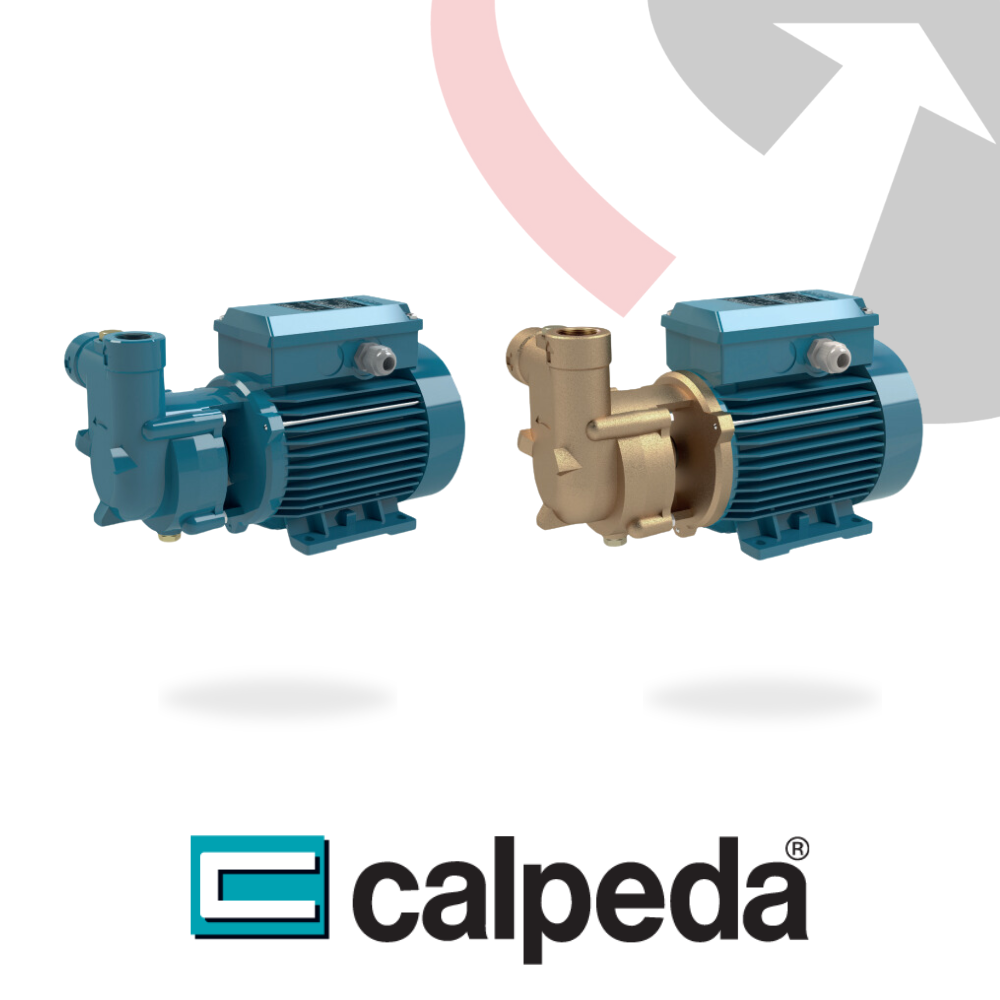

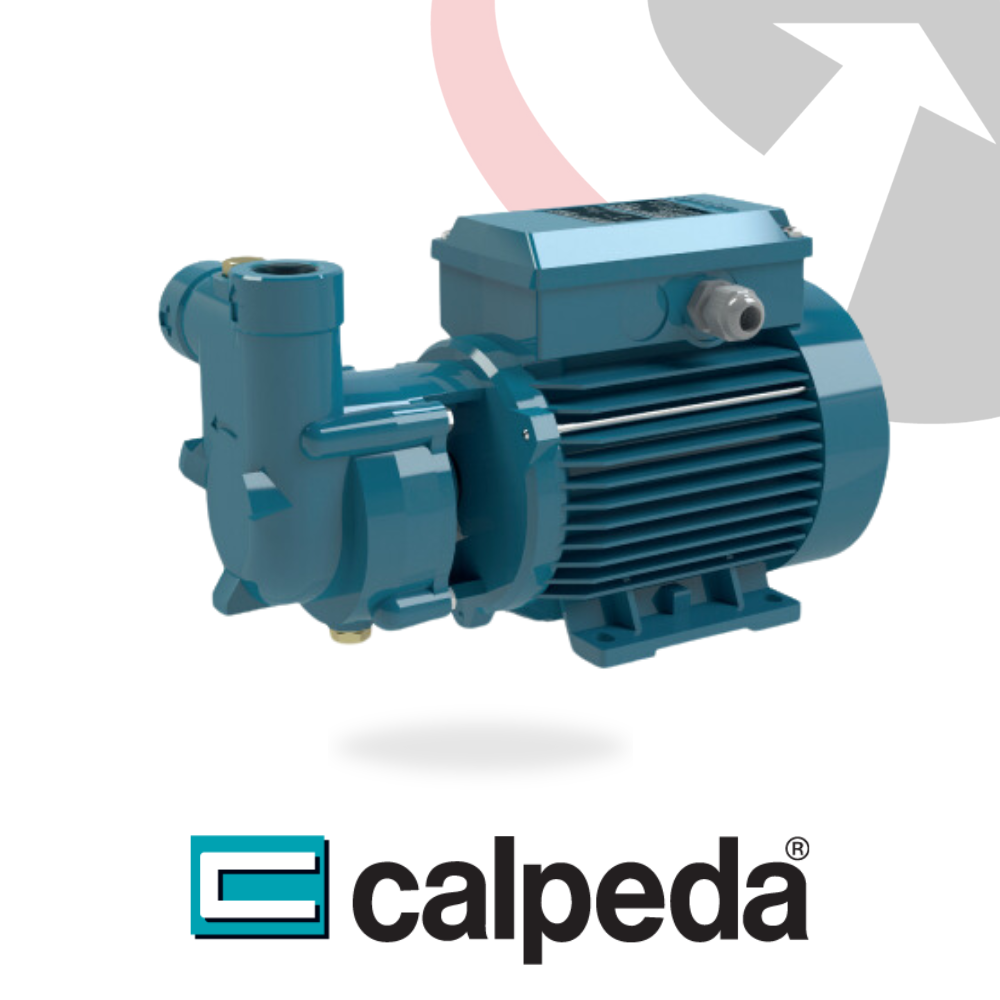

• CA: Cast iron pump casing and lantern bracket

• B-CA: Bronze pump casing and lantern bracket

• Self-priming liquid ring system with wear-resistant components

• Fully painted finish for corrosion protection

Operating Conditions:
Liquid temperature: -10 °C to +90 °C
Ambient temperature: Up to 40 °C
Negative suction pressure: Up to 9 m
Max working pressure: 6 bar
Continuous duty

Delivery:
Available now with free UK mainland delivery from Pumps & Gearboxes Direct.
