| Model | Price | Add |
|---|---|---|
| 1210090000E | CDA/A0.75M | £261.00 | |
| 1210090100E | CDA/A0.75MGO | £308.00 | |
| 1210090004I | CDA/A0.75T | £261.00 | |
| 1210200000E | CDA/A2.00M | £449.00 | |
| 1210150000E | CDA/B1.50M | £406.00 | |
| 1210100004I | CDA/I1.00T | £271.00 | |
| 1210100104I | CDA/I1.00TGO | £340.00 | |
| 1210150004I | CDA/I1.50T | £431.00 | |
| 1210200004I | CDA/I2.00T | £498.00 | |
| 1210300004I | CDA/I3.00T | £564.00 | |
| 1210400004I | CDA/I4.00T | £800.00 | |
| 1210550004I | CDA/I5.50T | £846.00 | |
| 1210100000E | CDA1.00M | £276.00 | |
| 1210100100E | CDA1.00MGO | £323.00 |

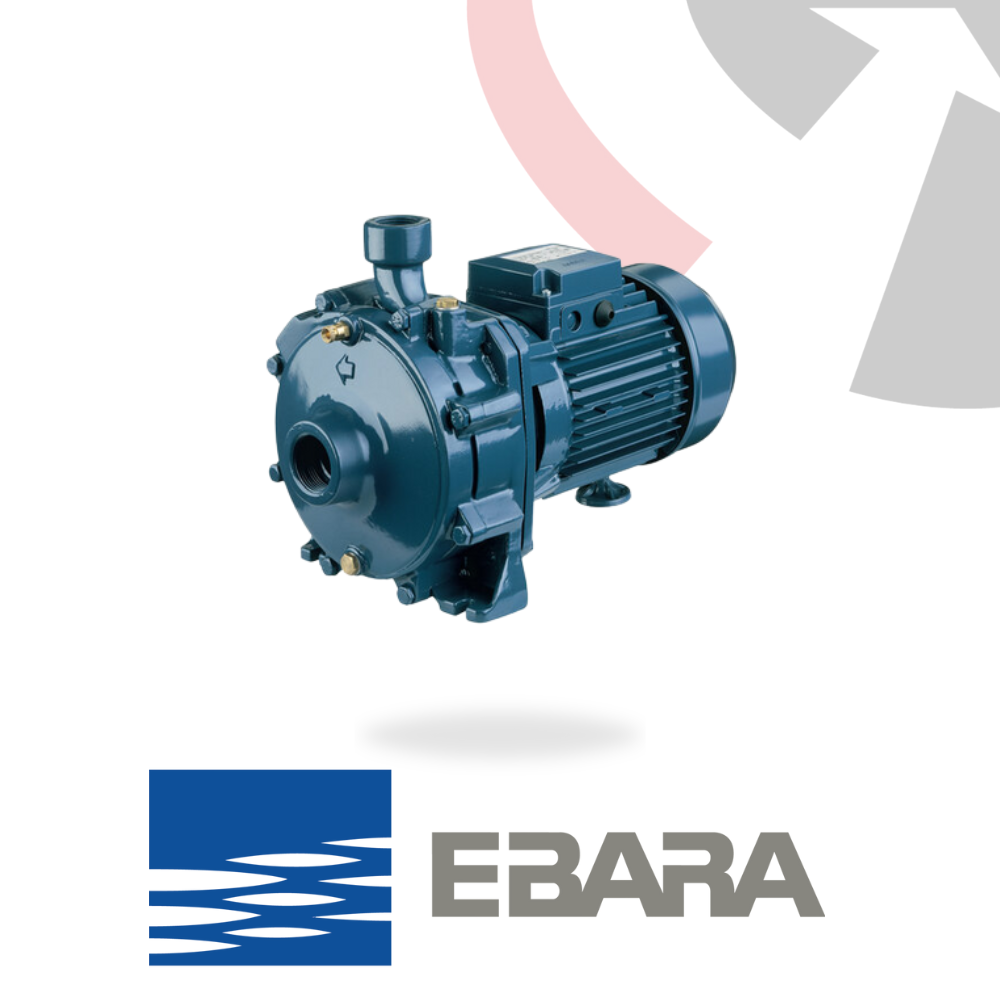

Ebara CDA Twin Impeller Centrifugal Pump - Cast Iron
Performance
The Ebara CDA twin-impeller centrifugal pump delivers enhanced performance with its compact design. Its twin impeller configuration boosts water pressure efficiently, making it suitable for a range of domestic and industrial applications in the UK.
Applications
Designed for UK domestic and commercial use, the CDA is ideal for the pressurisation of domestic installations, small-scale irrigation, and washing systems, including vehicle washing. Its suited for handling non-aggressive liquids in civil and industrial settings.
Construction
Featuring a cast iron pump body, the CDA offers durability and comes with a twin impeller in PPE+PS with glass fibres (CDA 0.75-1.00) or brass (rest of the range). The shaft is stainless steel (AISI 303 or 304), paired with a Ceramic/Carbon/NBR mechanical seal and motor support in aluminium or cast iron, depending on the model.
Key Specifications:
- Max. Working pressure: 6 bar for CDA 0.75-1.00, 10 bar for the rest of the range
- Max. Temperature of the liquid: +40°C for CDA 0.75-1.00, +90°C for the rest of the range
- Poles: 2
- Insulation class: F
- Protection degree: IP44
- Voltage: Single-phase 1230V ±10%, Three-phase 3230/400V +10%
- Pump body: Cast iron
- Impeller: in PPE+PS with glass fibres for CDA 0.75 - 1.00, in brass for the rest of the range
- Shaft: in AISI 303 (EN 1.4305) per CDA 0.75 - 1.00 - 1.50 - 2.00 - 3.00, in AISI 304 (EN 1.4301) per CDA 4.00 - 5.50
- Mechanical seal: Ceramic/Carbon/NBR (standard)
- Motor support: in aluminium for CDA 0.75 - 1.00, in cast iron for the rest of the range
Delivery
Order the Ebara CDA twin impeller centrifugal pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
