Ebara

SKU:1625090004 | CDX/A120/07

CDX - 2CDX(L)

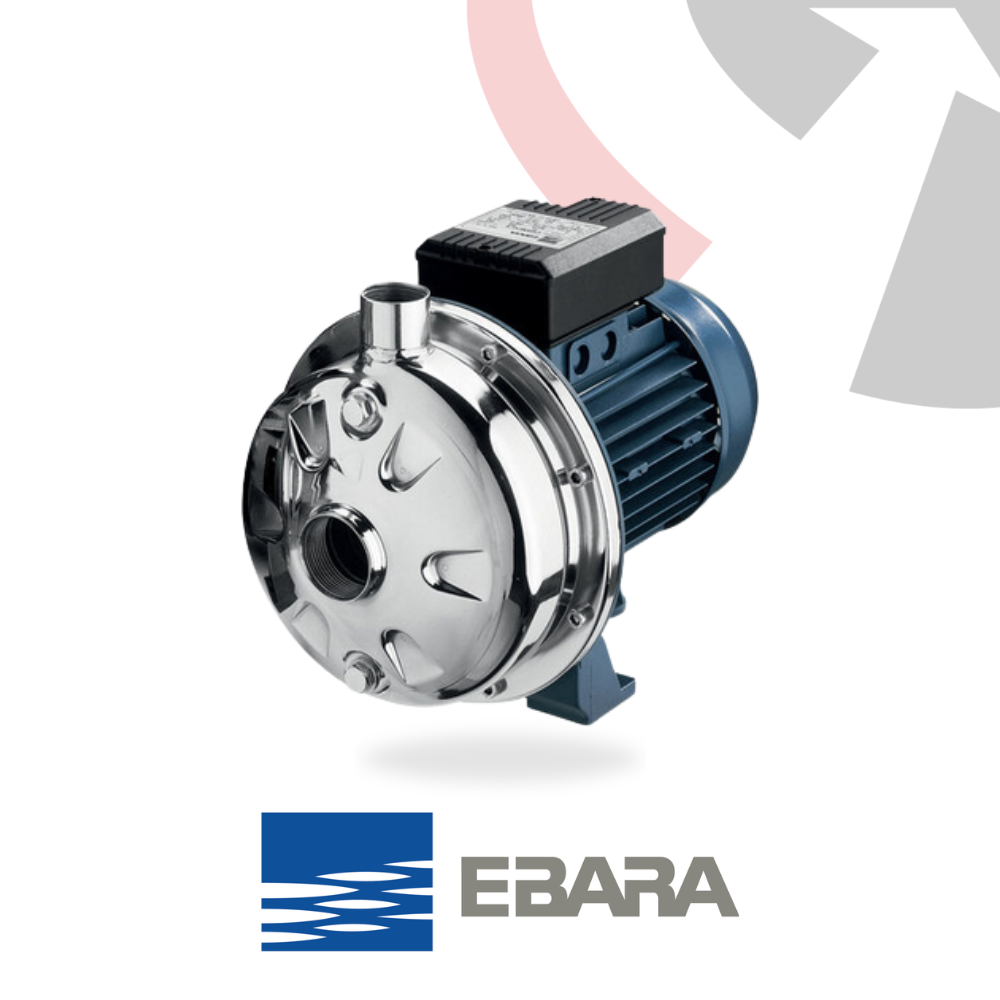

Ebara CDX(L) Single Impeller Centrifugal Pump - Stainless Steel

Performance
The Ebara CDX(L) single impeller centrifugal pump delivers flow rates from 1.2 to 15 m³/h and total heads from 12.5 to 37.5 m. Its hydroformed stainless steel design ensures efficient water pressurisation and reliable liquid transfer for UK applications.

Applications
Built for UK domestic and light industrial use, the CDX(L) excels in clean water pressurisation, irrigation, and washing systems. Its ideal for handling non-aggressive liquids in water treatment, cooling towers, and general water supply tasks.

Construction
Featuring a pump body and impeller in AISI 304 stainless steel (CDX) or AISI 316L (CDXL), the CDX(L) offers robust corrosion resistance. It includes a stainless-steel shaft (AISI 303 for CDX, AISI 316L for CDXL) and multiple mechanical seal options with an aluminium motor support.

Key Specifications:

• Flow rate: from 1.2 to 15 m³/h
• Total head: from 37.5 to 12.5 m
• Max. working pressure: 8 bar
• Max. temperature of the liquid: -5°C ÷ +75°C for H, HS, HW, HSW versions, -5°C ÷ +90°C for std and E versions
• MEI: > 0.4
• Poles: 2
• Insulation class: F
• Protection degree: IP55

·         Voltage: Single-phase 1230V +10%, Three-phase 3230/400V +10%

• Pump body: Stainless steel AISI 304 (EN 1.4301) (CDX), Stainless steel AISI 316L (EN 1.4404) (CDXL)
• Impeller: Stainless steel AISI 304 (EN 1.4301) (CDX), Stainless steel AISI 316L (EN 1.4404) (CDXL)
• Shaft: Stainless steel AISI 303 (EN 1.4305) (CDX), Stainless steel AISI 316L (EN 1.4404) (CDXL)
• Mechanical seal: Standard = Ceramic/Carbon/NBR, H = Graphite/Ceramic/FPM, HS = Silicon Carbide/Silicon Carbide/FPM, HW = Tungsten Carbide/Tungsten Carbide/FPM, HSW = Silicon Carbide/Tungsten Carbide/FPM, E = Graphite/Ceramic/EPDM
• Motor support: Aluminium

Delivery
Order the Ebara CDX(L) single impeller centrifugal pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
