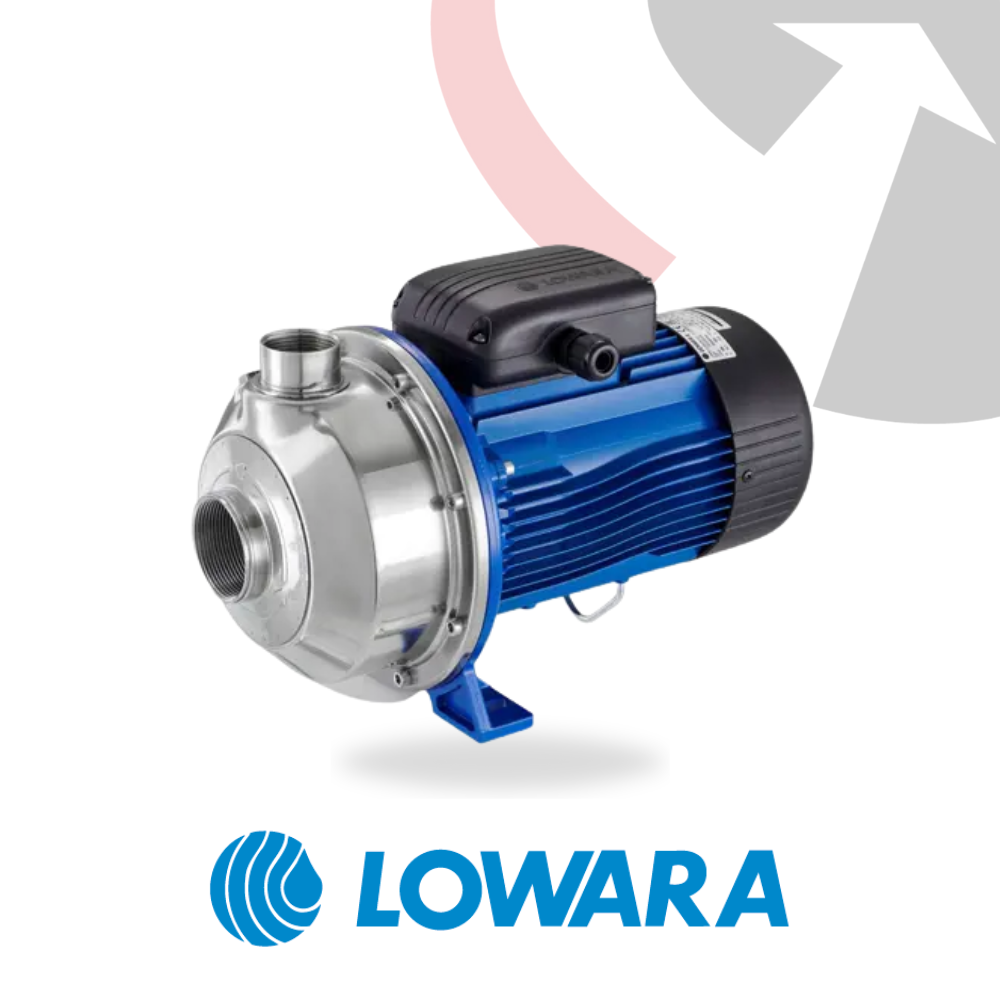

CEA | CEAM Single and Twin Impeller Centrifugal Electric Lowara Pumps

£711.00

~~£1,016.00~~ £711.00

Exclusive Online Price Sold out

Price excludes VAT + (Free UK Delivery)

Quantity

CEA - CEAM

Delivery Time: For lead times on this product, please contact the office.

Description

Lowara CEA & CIE Stainless Steel Centrifugal Pumps

Product Features

Stainless steel construction in AISI 304 or AISI 316
Flow rates up to 31 m³/h
Head up to 32 m
Suitable for domestic, commercial, and industrial applications

General Specifications

Model	CEA / CIE
Flow Rate	Up to 31 m³/h
Head	Up to 32 m
Power Supply	Single-phase & Three-phase (50 & 60 Hz)
Power Range	0.37 kW – 3 kW
Max Operating Pressure	8 bar (PN8)
Liquid Temperature Range	-10°C to 110°C (depending on model)

Pump Specifications

Flow Rate: Up to 31 m³/h
Head: Up to 32 m
Max Ambient Temperature: 45°C
Liquid Temperature Range:

CEA (NBR Elastomers): -10°C to +85°C
CEA..N & CEA..V (FKM Elastomers): -10°C to +110°C
CIE: -10°C to +110°C

Max Operating Pressure: 8 bar (PN 8)
Rotation: Counter-clockwise (facing the suction port)
Hydraulic Performance: ISO 9906:2012 (Grade 3B)

Motor Specifications

Type: Asynchronous, squirrel cage rotor
Cooling: External ventilation
Protection Class:
IP55 (EN 60034-1 Motor)
IPX5 (EN 60335-1 Electric Pump)
Insulation Class: F (155°C)
Standard Voltages:
Single-phase: 220-240V, 50 Hz
Three-phase: 220-240/380-415V, 50 Hz

Applications

CEA (AISI 304 Stainless Steel)

Water supply
Irrigation
Circulation of hot, cold, and refrigerated water
General domestic & industrial applications

CEA..N (AISI 316 Stainless Steel)

Reverse osmosis systems (demineralized water use)
Industrial washing
Thermal waters
Chlorine dosing for swimming pools

CIE Series

Heating systems
Cooling systems
Ventilation systems
