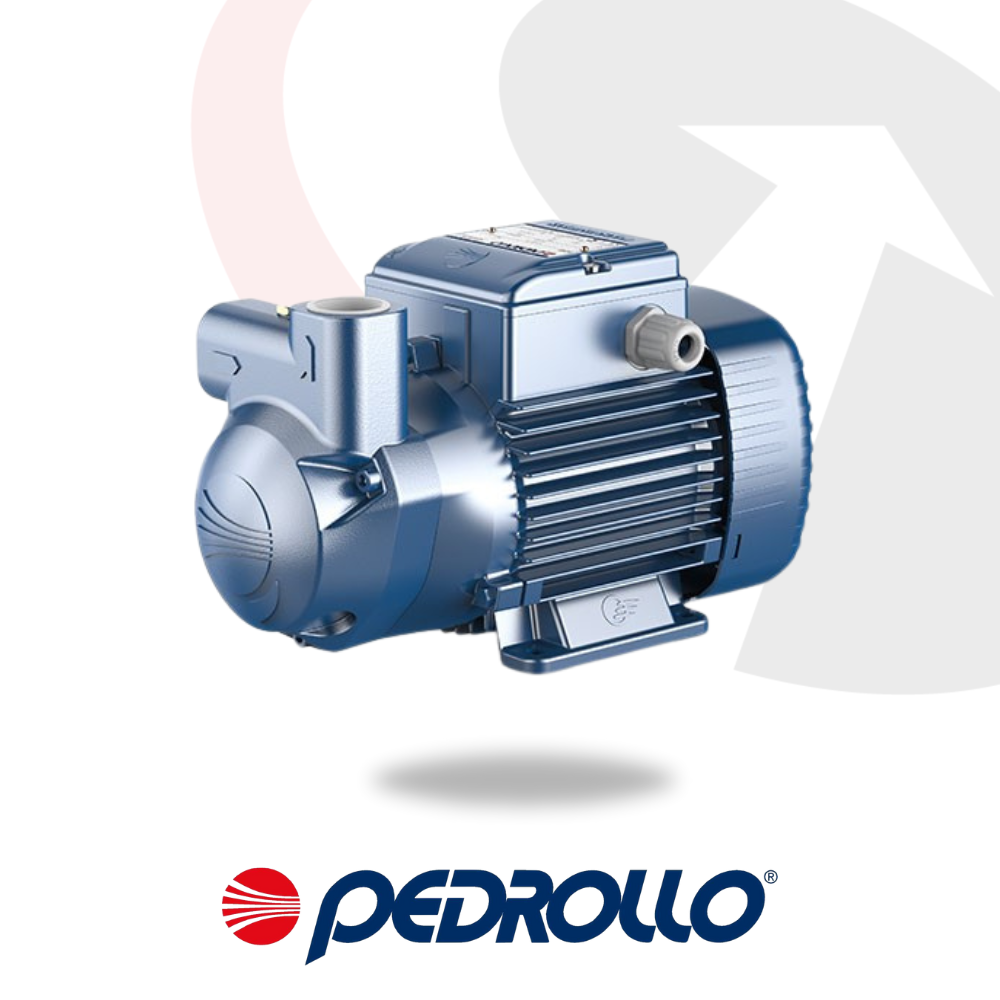

Pedrollo CKm 50 Self-Priming Liquid Ring Pump
Compact Diesel and Water Pump for Domestic, Agricultural, and Industrial Applications
Performance
The Pedrollo CKm 50 is a self-priming liquid ring pump designed to handle clean water, diesel, or naphtha. With a flow rate of up to 40 l/min and head up to 35 metres, this pump excels where compact, high-performance solutions are needed for irregular or aerated liquid flow.
Applications
- Pumping diesel and naphtha (up to +55 °C)
- Water transfer in agricultural and industrial setups
- Suitable for clean, non-abrasive, non- corrosive liquids
- Ideal where air-mixed liquid flow is present
Construction
Engineered for reliability and ease of use, the CKm 50 features a cast iron body, brass open-vane impeller, and aluminium motor bracket with anti-locking shim function. The self-priming design allows for suction lifts up to 9 metres.
Key Specifications
- Flow rate: Up to 40 l/min (2.4 m³/h)
- Head: Up to 35 m
- Suction head: Up to 9 m
- Liquid temperature: -10 °C to +90 °C (Diesel/naphtha: max +55 °C)
- Ambient temperature: Up to +40 °C
- Max working pressure: 6 bar
Construction Materials
- Pump body: Cast iron
- Impeller: Brass (open radial vanes)
- Motor bracket: Aluminium with brass cover
- Shaft: Stainless steel AISI 431
- Seal: Ceramic / Graphite / Viton
Motor
- Single-phase (CKm): 230 V - 50 Hz with built-in thermal protection
- Three-phase (CK): 230/400 V - 50 Hz
- Efficiency class: IE2 (single-phase), IE3 (three-phase)
- Protection rating: IP X4
- Insulation class: F
- Duty type: Continuous service (S1)
