CO | COM

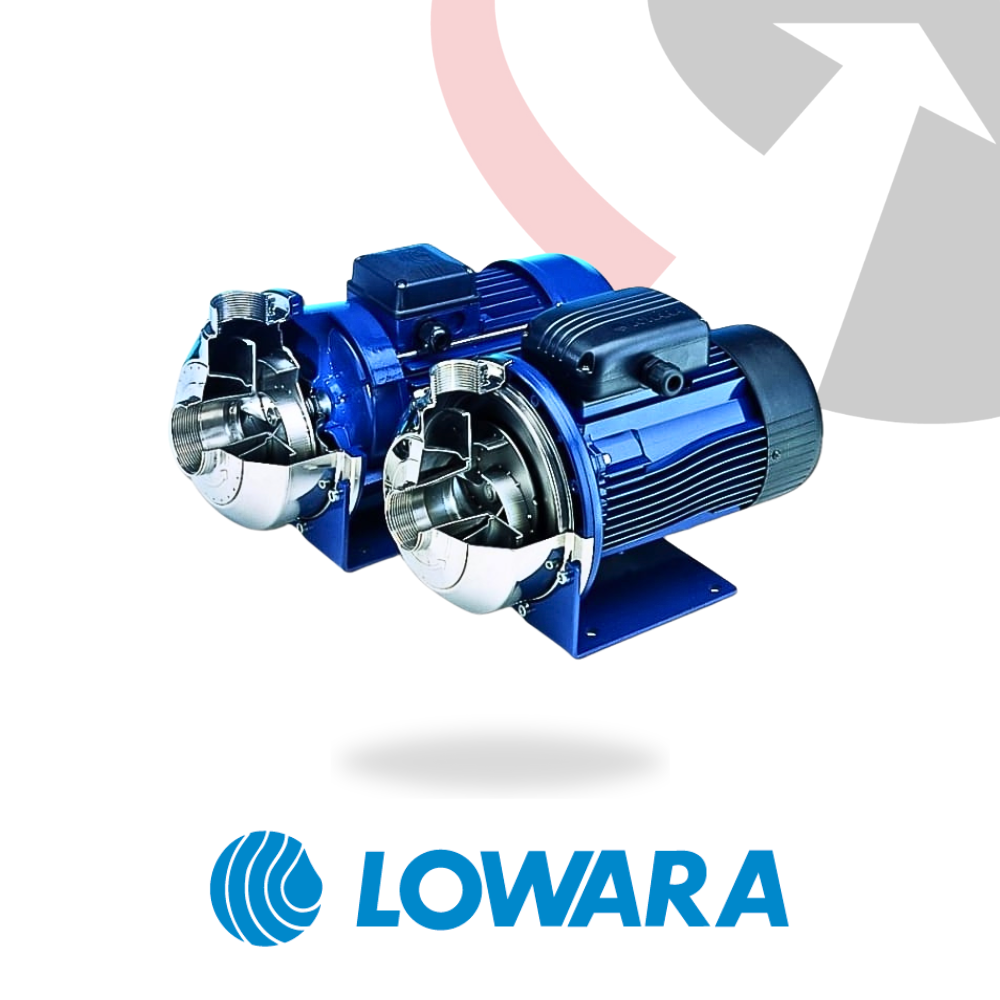

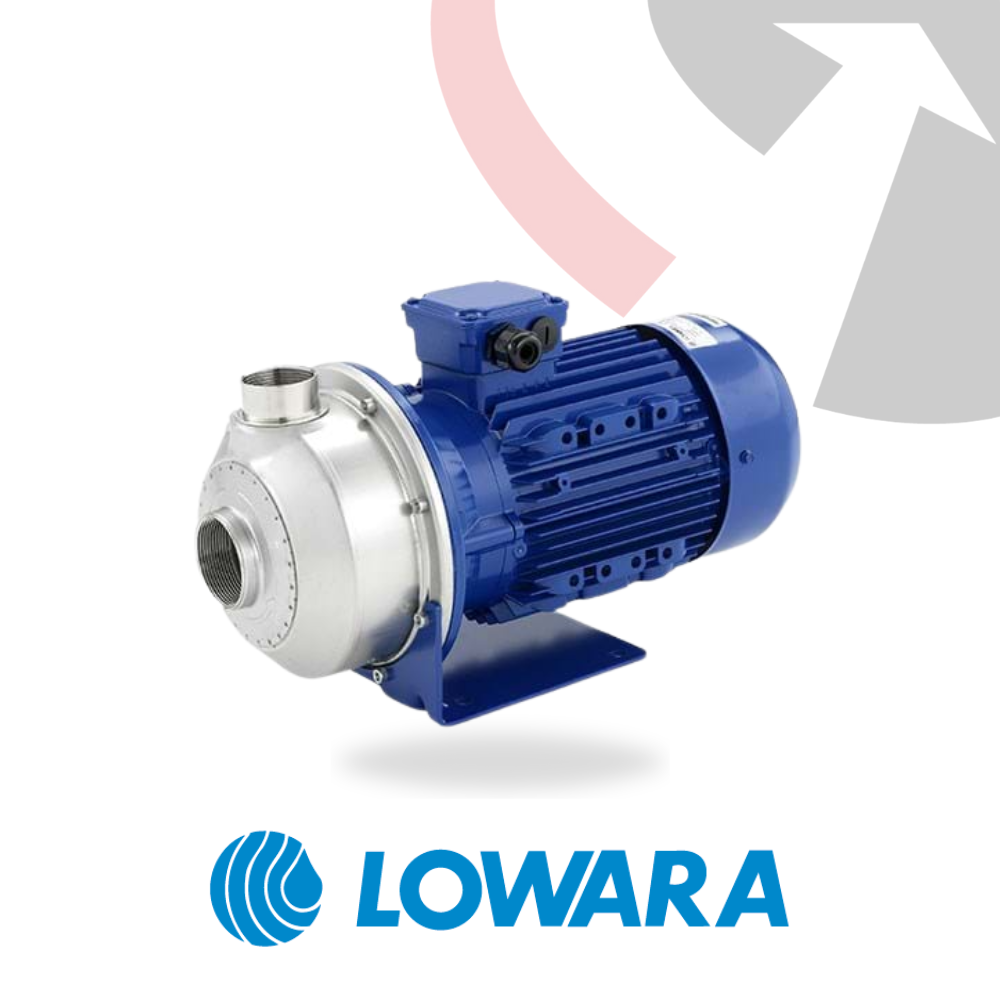

The Lowara CO and COM stainless steel open impeller centrifugal pumps are designed for reliable transfer of moderately aggressive liquids containing suspended solids. The AISI 316 construction, combined with an accessible open impeller, gives you efficient performance, easy cleaning and reduced risk of clogging in demanding industrial and commercial duties.

These pumps are a strong choice where hygiene, wash down or process reliability matter, such as food and beverage plants, packaging lines, wash systems and light industrial processes.

Performance

• Flow rates up to 54 m³/h (900 l/min), depending on model
• Head up to 24 m
• Maximum operating pressure: 8 bar (PN8)
• Maximum ambient temperature: 40°C
• Liquid temperature range: -10°C to +110°C
• Suspended solids handling capability:
  • CO350: up to 11 mm
  • CO500: up to 20 mm
• AISI 316L stainless steel wetted parts for moderately aggressive or contaminated liquids

Applications

• Washing and surface treatment: metal parts cleaning lines, food industry washing equipment, textile dyeing plants
• Packaging and food handling: washing produce before packaging and general wash down duties
• Industrial processes: circulation and transfer of moderately viscous and lightly aggressive liquids
• Commercial equipment: industrial washing machines and commercial dishwashers

The open impeller design and stainless steel build help to reduce downtime, simplify cleaning and support consistent performance in busy wash and process areas.

Construction

• Close coupled, single impeller centrifugal pump
• Threaded suction and discharge ports to Rp ISO 7
• Back pull out design for quick and simple maintenance
• AISI 316L stainless steel open impeller with four pressed vanes welded to a base disc
• No internal diffusers or cavities for easier cleaning and reduced risk of product build up
• Pump body tightened with eight screws, allowing rotation of the discharge head for flexible pipework connections

Mechanical seal options

• Standard version: carbon and ceramic seal faces with FPM elastomers
• "K" version: silicon carbide and tungsten carbide seal faces with FPM elastomers for enhanced durability in demanding duties

Motor specifications

• Asynchronous squirrel cage motor enclosed in an aluminium casing
• External ventilation for effective cooling
• Protection class: IP55
• Insulation class: 155 (F)
• Complies with EN 60034-1 performance standards
• Condensate drain plugs fitted to all motors

Power supply

• Single phase:
  • 220–240 V, 50 Hz, 2 pole
  • Built in automatic overload protection up to 1.5 kW
  • User provided overload protection required for higher power ratings
• Three phase:
  • 220–240 / 380–415 V, 50 Hz, 2 pole
  • Overload protection to be provided by the installer or panel

Key specifications

• Flow rate: up to 54 m³/h (900 l/min)
• Head: up to 24 m
• Suspended solids handling: 11 mm (CO350) or 20 mm (CO500)
• Liquid temperature range: -10°C to +110°C
• Maximum ambient temperature: 40°C
• Maximum operating pressure: 8 bar (PN8)
• Materials in contact with liquid: AISI 316L stainless steel

Delivery

Free UK mainland delivery is included with all Lowara CO and COM stainless steel open impeller centrifugal pumps, helping you keep projects moving without hidden extras.
