Pedrollo

SKU:CPm 100 | 2100760

Delivery Time: 3-5 Days Delivery

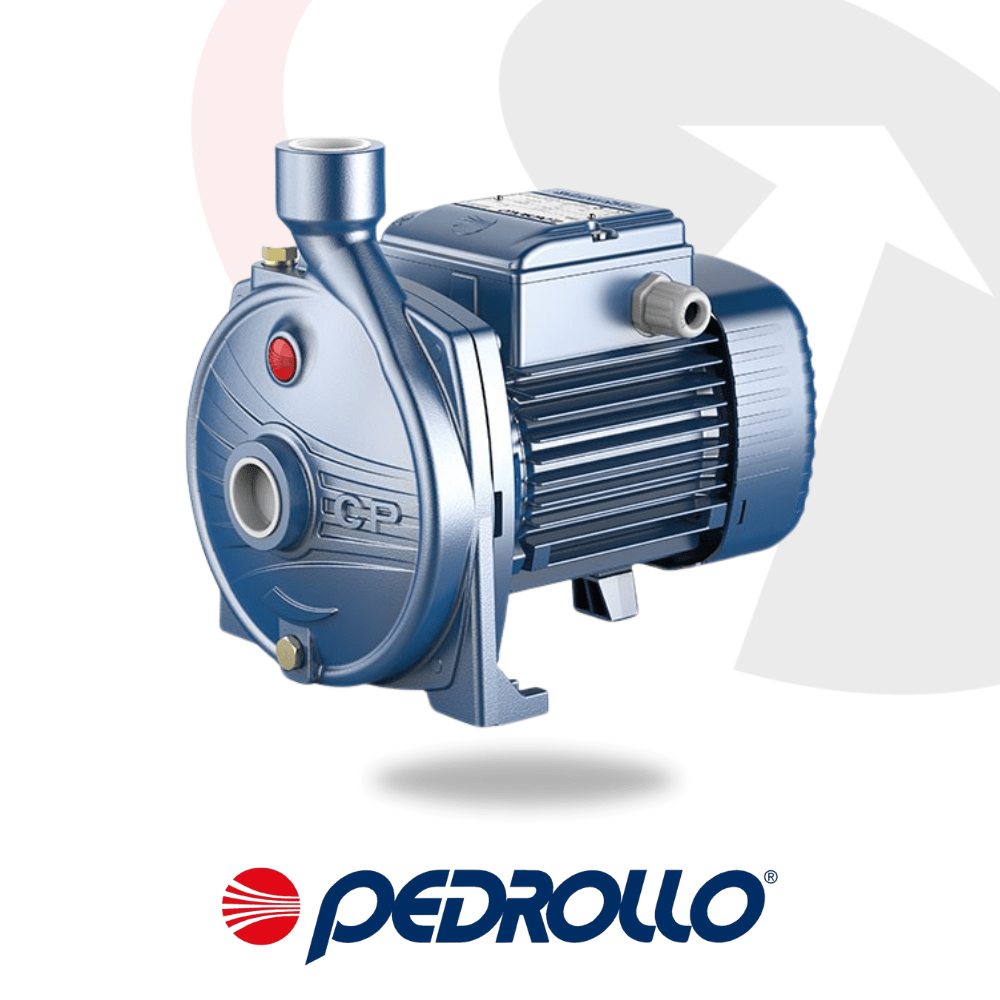

Pedrollo CP Series Centrifugal Pump

Reliable Clean Water Transfer for Domestic and Civil Systems

Performance:
The Pedrollo CP Series delivers dependable performance with flow rates up to 160 l/min (9.6 m³/h) and heads up to 56 metres. Designed for clean water transfer, these pumps are an ideal solution for consistent pressure and reliable supply in small to medium domestic and civil systems.

Applications:
Perfect for:
Water distribution with pressure tanks
Irrigation of orchards and gardens
Transferring clean fluids in domestic, civil or light commercial settings
General-purpose water supply where reliability and ease of use are key

Construction:
Built with robust materials and engineered for long life, the CP Series features an AISI 304 stainless steel impeller with a 10-year guarantee, ensuring strength and corrosion resistance. Compact and easy to install, these pumps offer quiet and efficient operation across a wide range of uses.

Electric Motor:

• Equipped with high-performance motors suitable for inverter use:

• Three-phase models: IE3 efficiency class

• Single-phase models: IE2 efficiency class


Class F insulation and IPX4 protection ensure stable, quiet performance

Key Specifications:

• Flow rate: Up to 160 l/min (9.6 m³/h)

• Head: Up to 56 m

• Suction head: Up to 7 m

• Liquid temperature: -10°C to +90°C

• Ambient temperature: Up to +40°C

Max working pressure:

6 bar (CP 100, 130, 132, 150, 158)
10 bar (CP 170, 190, 200)

Options Available on Request:
Alternative mechanical seal options
60 Hz voltage and frequency variants
IPX5 protection for selected models

Delivery:
Order the Pedrollo CP Series Centrifugal Pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
