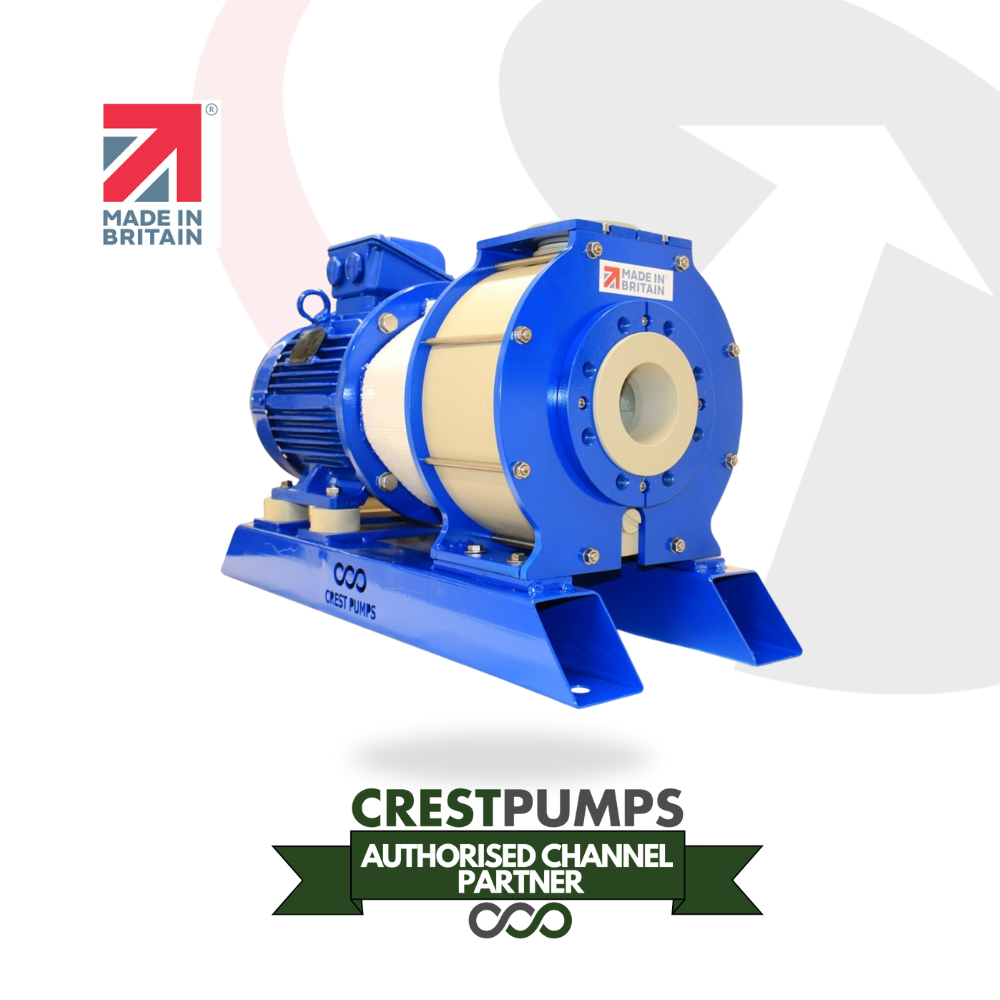

Crest Pumps EOV 50-32-125-3kw Viton Centrifugal Pump

Crest Pumps EOV 50-32-125-3kw Viton Centrifugal Pump

Price on Request | Free Delivery

SKU:EOV 50-32-125-3kw

Crest Pumps EOV 50-32-125-3kw Viton

HORIZONTAL END SUCTION, MECHANICALLY SEALED, CENTRIFUGAL PUMPS

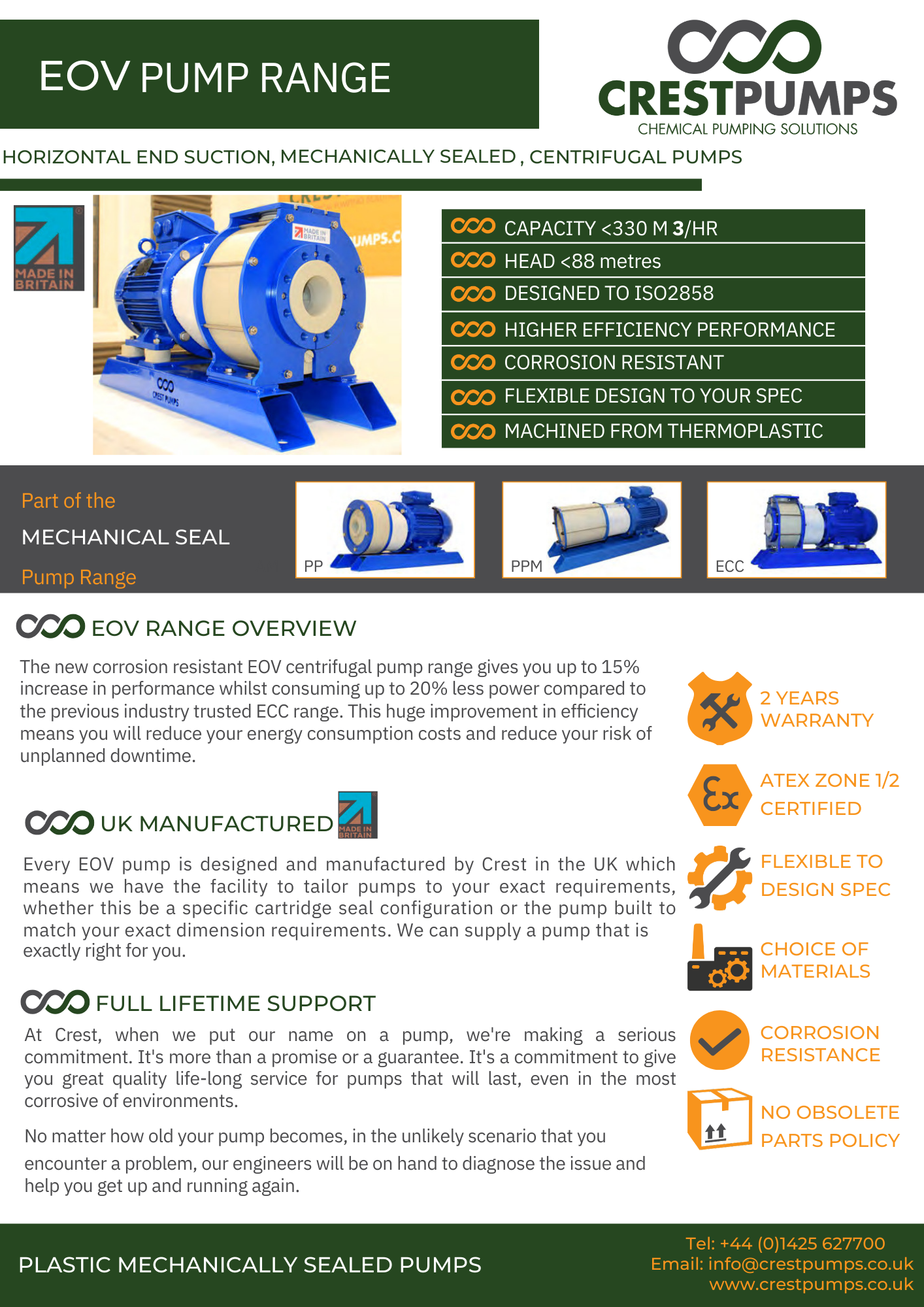

The new corrosion resistant EOV centrifugal pump range gives you up to 15% increase in performance whilst consuming up to 20% less power compared to the previous industry trusted ECC range.

The EOV 50-32-125-3kw Viton centrifugal pump is designed for chemical processing and industrial applications. Featuring a 50mm suction and 32mm discharge, this pump operates at a speed of 2900 RPM. It delivers a rated flow of 15 m³/h, with a maximum flow of 24 m³/h, and achieves a head of up to 24 meters. The motor has a power output of 2.2 kW, and the Viton seal provides excellent chemical resistance.

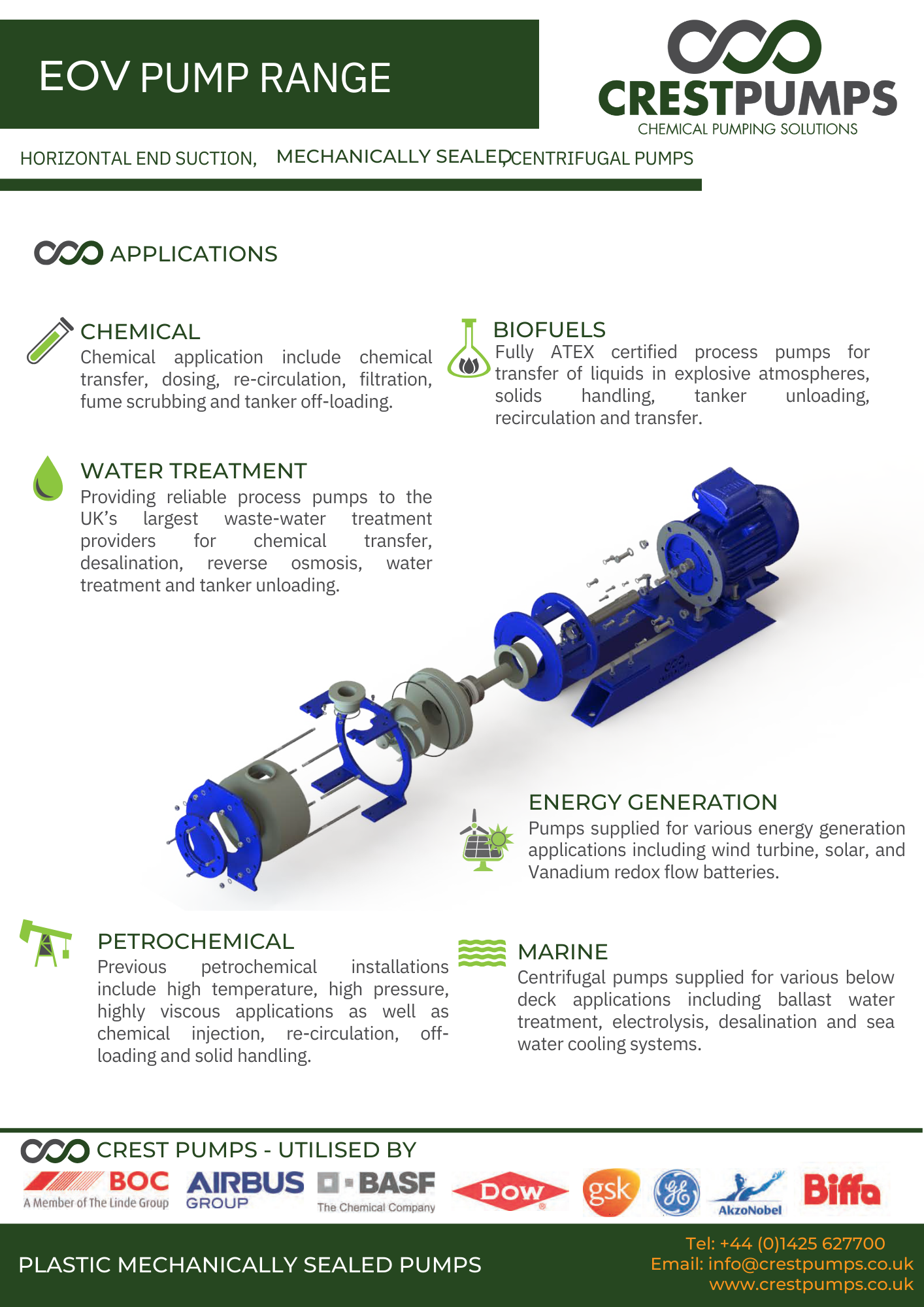

APPLICATIONS:

CHEMICAL
Chemical application include chemical transfer, dosing, re-circulation, filtration, fume scrubbing and tanker off-loading.

WATER TREATMENT
Providing reliable process pumps to the UK’s largest waste-water treatment providers for chemical transfer, desalination, reverse osmosis, water treatment and tanker unloading.

BIOFUELS
Fully ATEX certified process pumps for transfer of liquids in explosive atmospheres, solids handling, tanker unloading, recirculation and transfer.

ENERGY GENERATION
Pumps supplied for various energy generation applications including wind turbine, solar, and Vanadium redox flow batteries.

MARINE
Centrifugal pumps supplied for various below deck applications including ballast water treatment, electrolysis, desalination and sea water cooling systems.

PETROCHEMICAL
Previous petrochemical installations include high temperature, high pressure, highly viscous applications as well as chemical injection, re-circulation, off-loading and solid handling.

MOTOR TO COVER 1.3 SG AT MAX. IMPELLER
PTFE EXTERNAL SEAL - SIC/SIC
POLYPROPYLENE WETTED PARTS / MILD STEEL FRAME AND BASE MATERIALS
SAFE AREA IE3 WEG MOTORS
BS4504 / DIN STANDARD FLANGES

Specification Value
Suction 50 mm
Discharge 32 mm
Speed 2900 RPM
Rated Flow 15 m³/h
Max Flow 24 m³/h
Rated Head 20 m
Max Head 24 m
Motor Output 2.2 kW
Seal Type Viton
