| Model | Price | Add |
|---|---|---|
| 60180067 | CM-CM-G-DCM-DCM-G | 60180067 CM 40-1300 T-IE3 | £1,420.00 | |
| 60180068 | CM 40-1450 T-IE3 | £1,602.00 | |
| 60180063 | CM 40-440 T-IE3 | £835.00 | |
| 60180064 | CM 40-540 T-IE3 | £840.00 | |
| 60180065 | CM 40-670 T-IE3 | £859.00 | |
| 60180066 | CM 40-870 T-IE3 | £865.00 | |
| 60180072 | CM 50-1000 T-IE3 | £926.00 | |
| 60180073 | CM 50-1270 T-IE3 | £1,854.00 | |
| 60180074 | CM 50-1420 T-IE3 | £1,854.00 | |
| 60180069 | CM 50-510 T-IE3 | £889.00 | |
| 60180070 | CM 50-630 T-IE3 | £916.00 | |
| 60180071 | CM 50-780 T-IE3 | £920.00 | |
| 1D6211G7X | CM-G 100-1020/A/BAQE/3-IE3 | £2,180.00 | |
| 1D6311G8X | CM-G 100-1320/A/BAQE/4-IE3 | £2,305.00 | |
| 1D6311G9X | CM-G 100-1650/A/BAQE/5,5-IE3 | £2,977.00 | |
| 1D6411GAX | CM-G 100-2050/A/BAQE/7,5 - IE3 | £3,518.00 | |
| 1D6411GBX | CM-G 100-2550/A/BAQE/11 - IE3 | £3,948.00 | |
| 1D6511GCX | CM-G 100-3290/A/BAQE/15 - IE3 | £4,516.00 | |
| 1D6511GDX | CM-G 100-3680/A/BAQE/18,5 - IE3 | £4,948.00 | |
| 1D6511GEX | CM-G 100-4100/A/BAQE/22 - IE3 | £5,807.00 | |
| 1D6111G3W | CM-G 100-510/A/BAQE/0,75-IE3 | £1,819.00 | |
| 1D6111G4W | CM-G 100-650/A/BAQE/1,1-IE3 | £1,876.00 | |
| 1D6211G5W | CM-G 100-660/A/BAQE/1,5-IE3 | £1,980.00 | |
| 1D6211G6W | CM-G 100-865/A/BAQE/2,2-IE3 | £2,149.00 | |
| 1D7311G8X | CM-G 125-1075/A/BAQE/4-IE3 | £2,813.00 | |
| 1D7311G9X | CM-G 125-1270/A/BAQE/5,5-IE3 | £3,485.00 | |
| 1D7311GAX | CM-G 125-1560/A/BAQE/7,5 - IE3 | £4,025.00 | |
| 1D7411GBX | CM-G 125-2100/A/BAQE/11 - IE3 | £4,456.00 | |
| 1D7411GCX | CM-G 125-2550/A/BAQE/15 - IE3 | £5,023.00 | |
| 1D7511GDX | CM-G 125-3200/A/BAQE/18,5 - IE3 | £5,452.00 | |
| 1D7511GEX | CM-G 125-3600/A/BAQE/22 - IE3 | £6,314.00 | |
| 1D7511GFX | CM-G 125-4022/A/BAQE/30 - IE3 | £7,676.00 | |
| 1D8411GAX | CM-G 150-1322/A/BAQE/7,5 - IE3 | £4,647.00 | |
| 1D8411GBX | CM-G 150-1600/A/BAQE/11 - IE3 | £5,188.00 | |
| 1D8411GCX | CM-G 150-1950/A/BAQE/15 - IE3 | £5,618.00 | |
| 1D8411GDX | CM-G 150-2200/A/BAQE/18,5 - IE3 | £6,186.00 | |
| 1D8411GEX | CM-G 150-2405/A/BAQE/22 - IE3 | £6,616.00 | |
| 1D8411G9X | CM-G 150-955/A/BAQE/5,5-IE3 | £3,976.00 | |
| 1D4311G4W | CM-G 65-1080/A/BAQE/1,1-IE3 | £1,332.00 | |
| 1D4311G5W | CM-G 65-1200/A/BAQE/1,5-IE3 | £1,435.00 | |
| 1D4311G6W | CM-G 65-1530/A/BAQE/2,2-IE3 | £1,607.00 | |
| 1D4311G7X | CM-G 65-1680/A/BAQE/3-IE3 | £1,638.00 | |
| 1D4211G3W | CM-G 65-920/A/BAQE/0,75-IE3 | £1,277.00 | |
| 1D5211G6W | CM-G 80-1050/A/BAQE/2,2-IE3 | £1,857.00 | |
| 1D5311G7X | CM-G 80-1530/A/BAQE/3-IE3 | £1,889.00 | |
| 1D5311G8X | CM-G 80-1700/A/BAQE/4-IE3 | £2,013.00 | |
| 1D5411G9X | CM-G 80-2410/A/BAQE/5,5-IE3 | £2,684.00 | |
| 1D5511GAX | CM-G 80-2700/A/BAQE/7,5 - IE3 | £3,227.00 | |
| 1D5511GBX | CM-G 80-3420/A/BAQE/11 - IE3 | £3,656.00 | |
| 1D5111G3W | CM-G 80-650/A/BAQE/0,75-IE3 | £1,527.00 | |
| 1D5211G4W | CM-G 80-740/A/BAQE/1,1-IE3 | £1,581.00 | |
| 1D5211G5W | CM-G 80-890/A/BAQE/1,5-IE3 | £1,686.00 | |
| 1D4111GXC | CM-G 65- 420/A/BAQE/0.25 | £956.00 | |
| 1D4111G1C | CM-G 65- 540/A/BAQE/0.37 | £982.00 | |
| 1D4111G2C | CM-G 65- 660/A/BAQE/0.55 | £1,007.00 | |
| 1D4211G2C | CM-G 65- 760/A/BAQE/0.55 | £1,034.00 | |
| 1D4411G8X | CM-G 65-2380/A/BAQE/4-IE3 | £1,760.00 | |
| 1D5111G2C | CM-G 80-550/A/BAQE/0,55 | £1,265.00 |
Performance

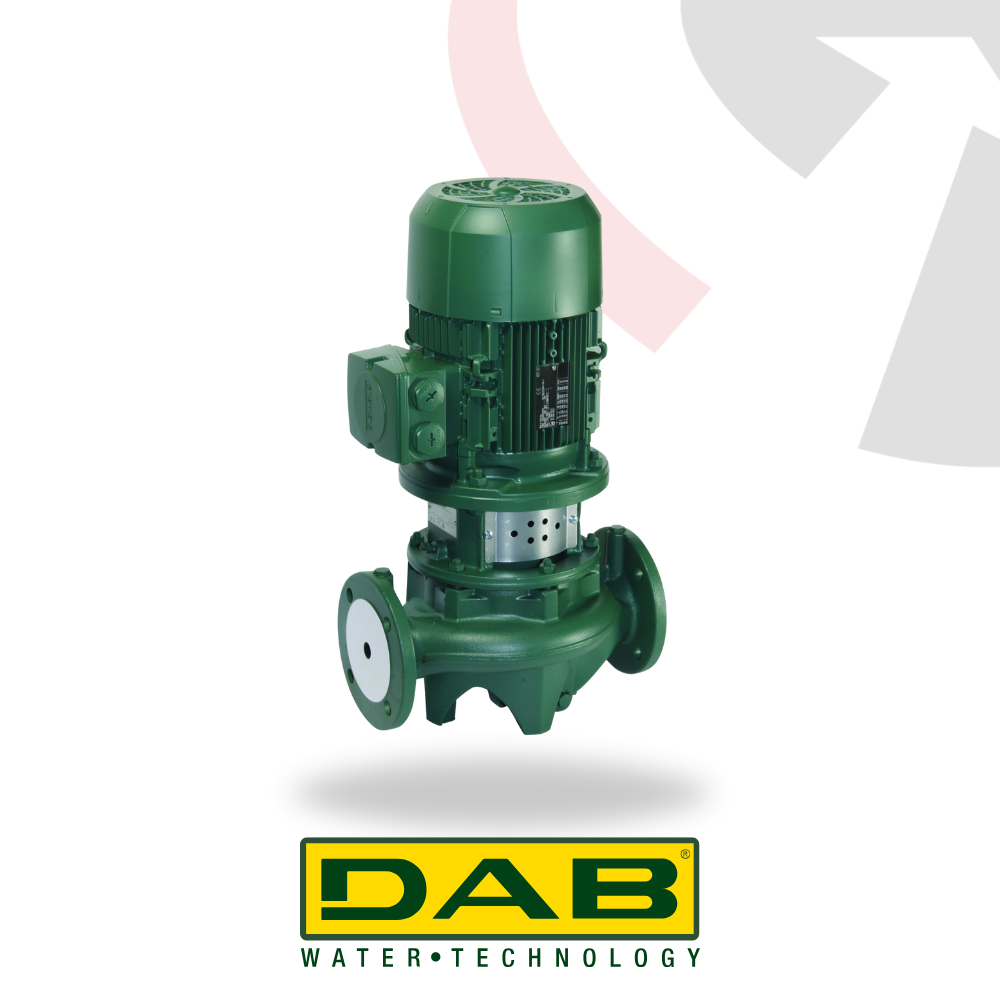

The DAB CM series is a range of single in-line circulation pumps designed for consistent flow in medium to large scale heating, cooling and sanitary systems. With flow rates from 1.2 to 420 m³/h and heads up to 41 metres, they provide reliable performance for demanding residential and commercial applications.
Applications
Ideal for hot and cold water circulation in heating, air conditioning, refrigeration and sanitary systems. The CM range is suitable for potable water applications and systems containing up to 30 percent glycol.
Construction
CM pumps feature flanged PN 16 connections, a cast iron pump body and motor support plus stainless steel shafts. Depending on the model, impellers are manufactured from cast iron or technopolymer.
- CM: Monobloc pump with the motor directly coupled to the impeller.
- CM-G: Includes a coupling for easier disassembly and motor servicing, ideal for larger systems or where maintenance access is important.
All units are equipped with externally ventilated three phase asynchronous motors that require external overload protection in line with UK electrical regulations.
Key Specifications
- Flow rate: 1.2 to 420 m³/h
- Head: up to 41 metres
-
Liquid temperature:
- DN 40 to DN 50: –10°C to +130°C
- All other sizes: –10°C to +140°C
-
Max system pressure:
- DN 40 to DN 50: 10 bar
- All other sizes: 16 bar
- Max ambient temperature: 40°C
- Flanging: PN 16
- Protection rating: IP55
- Insulation class: F
- Glycol compatibility: up to 30 percent
Delivery
Free UK mainland delivery from pumpsandgearboxesdirect.com.
