DAB Pumps

SKU:60179895 | CP 40/1900 T - IE3

Delivery Time: 2-4 Days on Supplier INSTOCK

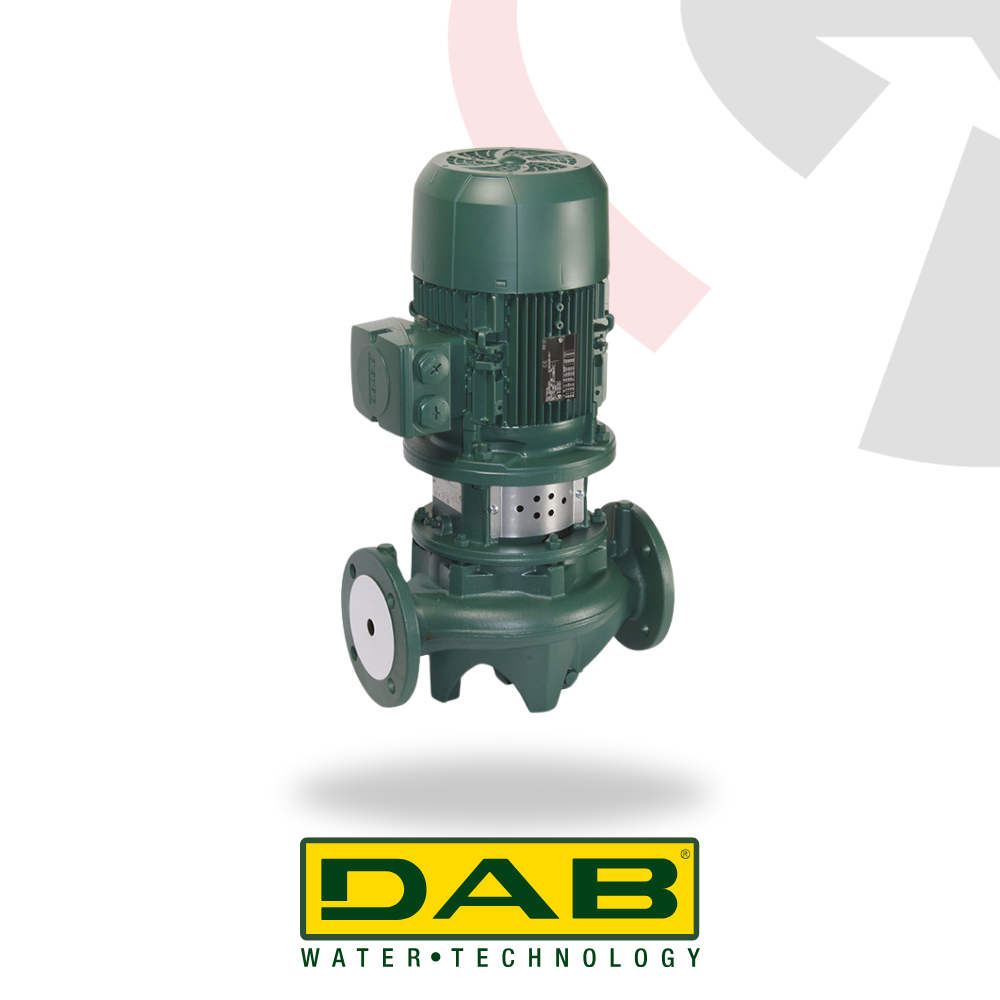

DAB CP | CP-G Inline Circulation Pumps

Performance
The DAB CP | CP-G series offers high-performance inline circulation for demanding heating, cooling, and sanitary systems. With flow rates from 3.6 to 420 cubic metres per hour and heads up to 102 metres, these single in-line pumps are engineered for consistent performance in large-scale installations.

Applications
Designed for heating circuits, air conditioning, refrigeration, and sanitary water systems, the CP | CP-G pumps are ideal for commercial and industrial settings. They are suitable for clean water and mixtures containing up to 30 percent glycol.

Construction
All models feature PN 16 flanged ports with threaded holes for pressure gauges. The pump body and motor support are cast iron, while impellers are available in either cast iron or technopolymer, depending on model. Each unit uses a three-phase, externally ventilated asynchronous motor with a stainless steel shaft, IP55 protection rating, and class F insulation. Remote overload protection is required to comply with local electrical standards.

• CP-G models feature a coupling between the motor and pump for easier servicing.

Key Specifications

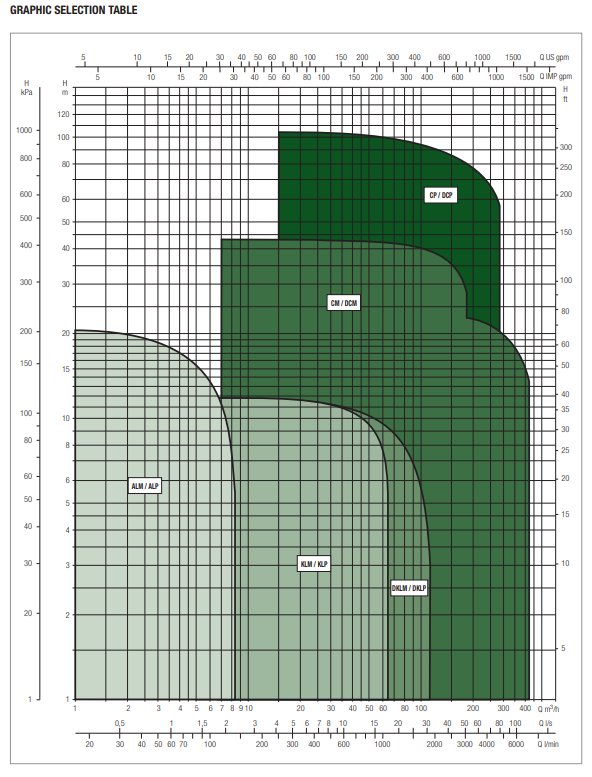

Flow rate: 3.6 to 420 cubic metres per hour
Head: Up to 102 metres

Maximum operating pressure:
DN 40 to DN 50: 10 bar
All other sizes: 16 bar

Liquid temperature:
DN 40 to DN 50: Minus 10 to plus 130 degrees Celsius
All other sizes: Minus 10 to plus 140 degrees Celsius

Maximum ambient temperature: 40 degrees Celsius
Flanging: PN 16
Protection class: IP55
Insulation class: F
Glycol compatibility: Up to 30 percent

Power Source and Classification
This pump is powered by alternating current (AC) and is suitable for use in heating systems, water circulation, and commercial building services.
