| Model | Motor Power | Power Supply | Float Switch | Control Type | Max Flow Rate | Max Head | Delivery | Price | Add |
|---|---|---|---|---|---|---|---|---|---|
| 60122690 | FEKA BVP 700 M-A | 60122690H FEKA BVP 700 M-A | 0.55 kW | Single phase 230/1/50 | Yes | Automatic | 300 l/min | 7m | check stock | £346.00 | |
| 60122691 | FEKA BVP 750 M-A | 60122691H FEKA BVP 750 M-A | 0.75 kW | Single phase 230/1/50 | Yes | Automatic | 300 l/min | 8.2m | 2 - 5 Days | £381.00 |
Performance

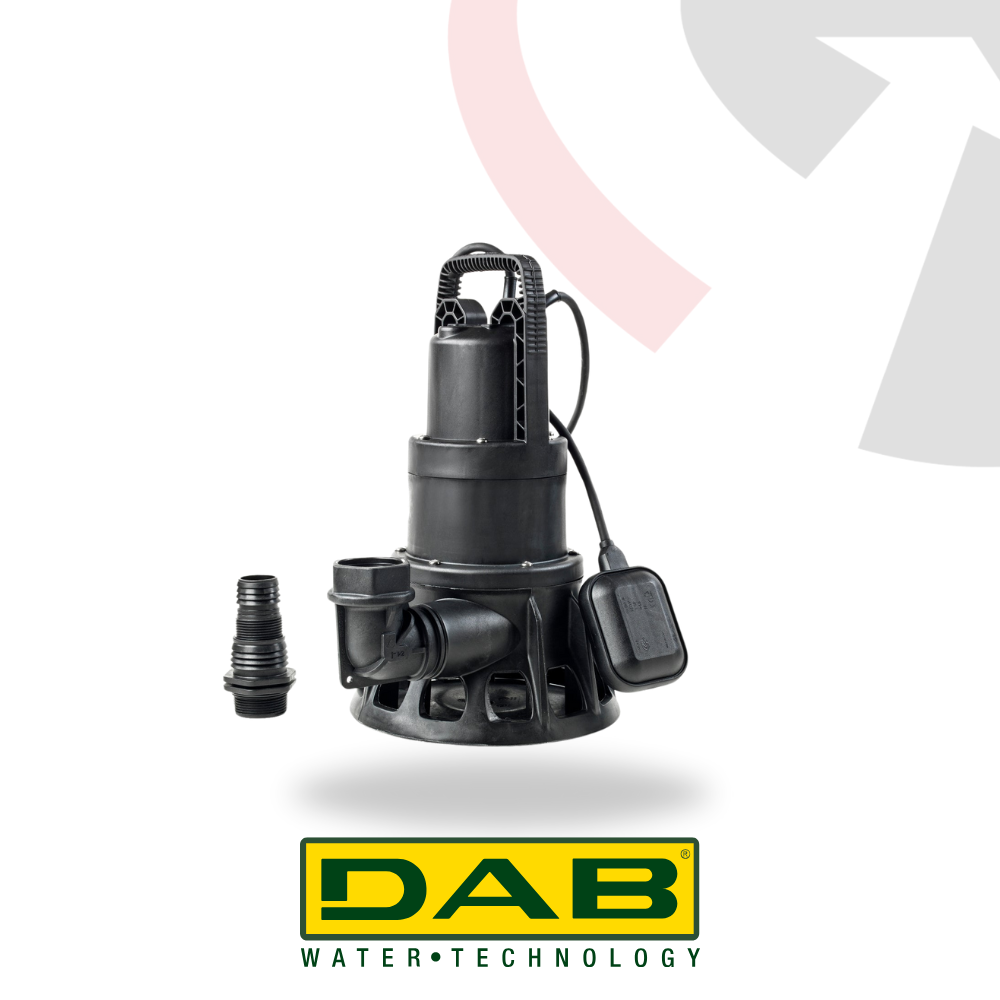

The DAB Feka BVP is a compact submersible dirty water and wastewater pump designed for draining water containing suspended solids up to 38 mm. Manufactured from corrosion resistant technopolymer, the range is suitable for domestic drainage, flood water removal and light wastewater handling applications.
Designed for portable or fixed installation, the Feka BVP combines compact dimensions with reliable solids handling performance, making it suitable for sump pits, flooded areas, tanks and confined drainage chambers.
Applications
- Flooded basements, garages and cellars
- Domestic wastewater drainage
- Sump pits and inspection chambers
- Rainwater and surface water transfer
- Utility rooms and light commercial drainage
- Temporary drainage during maintenance or construction work
- Dirty water containing suspended solids up to 38 mm
The compact vertical design and integrated float switch make the Feka BVP suitable for automatic drainage applications in confined spaces.
Construction
The pump body, impeller, suction grid and motor casing are manufactured from high strength technopolymer for corrosion resistance and reduced weight. The open vortex impeller is designed to handle suspended solids up to 38 mm while helping to reduce the risk of clogging.
The motor shaft is stainless steel and the pump is fitted with a graphite and ceramic mechanical seal for long service life and reliable submerged operation.
Motor
The Feka BVP uses a submersible asynchronous motor cooled by the pumped liquid and designed for continuous duty operation.
- Single phase 230 V models supplied with integrated float switch
- Built in thermal overload protection
- 10 metre H07RN-F power cable with plug fitted
- Protection class IP68
- Insulation class F
Key Specifications
- Flow rate: up to 18 m³/h
- Maximum flow rate: 300 l/min
- Total head: up to 8.2 m
- Maximum solid size: 38 mm
- Maximum immersion depth: 7 m
- Liquid temperature range: 0°C to +35°C
- Pump body and impeller: technopolymer
- Impeller type: open vortex
- Motor shaft: stainless steel
- Mechanical seal: graphite and ceramic
- Motor type: submersible asynchronous
- Installation: fixed or portable, vertical position
- Insulation class: F
- Protection class: IP68
- Power supply: 220–240 V single phase, 50 Hz
- Float switch: supplied as standard
- Power cable: 10 m H07RN-F
Delivery
Order the DAB Feka BVP submersible dirty water pump online with free UK mainland delivery. Expert technical support is available if you need help selecting the correct model for your application.
