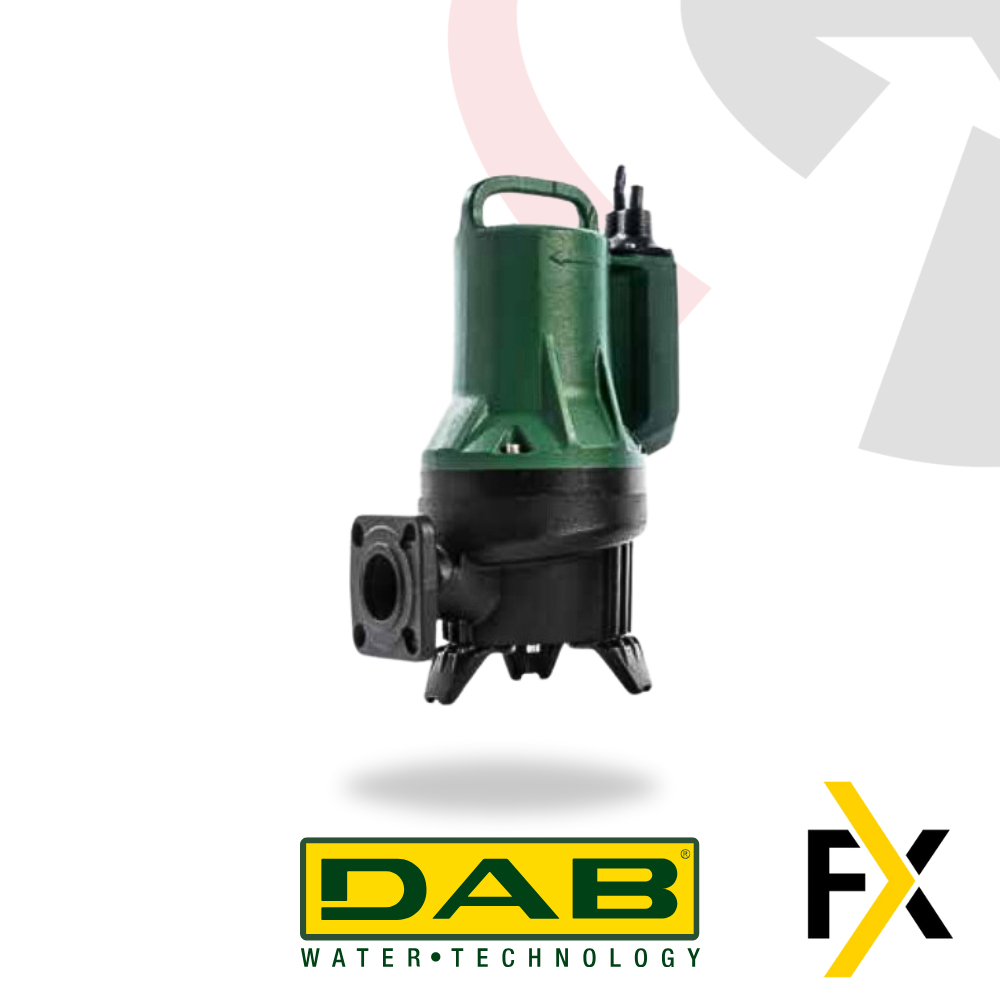

FEKA FXV Submersible pumps

Feka FXV by DAB is a submersible pump for draining sewage in commercial building service. Feka FXV is certified EN 12050-1. Suitable for fixed installations with coupling device or mobile if placed directly on the bottom of the tank. High efficiency super Vortex impeller with full solid handle passage (the space between impeller and the shaving ring and the diameter of the free passage are the same). Feka FXV is capable of delivering high flow rates. It is ideal for replacements thanks to the dimensions and the flanged and threaded output. Fast maintenance thanks to a constructive solution that provides easy access to the main components of the pump. Single-phase versions with integrated capacitor, available with float for automatic operation (MA) with powers up to 1,5 kW. In the three-phase versions the protection is the user's responsibility. ATEX version available for use in potentially explosive environments (ATES certifications: II2G Ex db k IIB T4 or IEC EX: Ex db IIB T4 Gb).

Feka FXV is a submersible pump for draining sewage water in commercial building service. It is certified for the European Union standard EN 12050-1
which applies to sewage lifting containing faecal material in buildings and construction sites. Pump suitable for fixed installations with a coupling device
or mobile if placed directly on the bottom of the tank. High-performance super vortex impeller with solid handling up to 50 mm or 60 mm. The pump is
suitable for liquid with solids and long fibers in suspension. The reduced overall dimensions and the outlet ports both flanged and threaded make it ideal for
replacements. Designed for quick maintenance thanks to a constructive solution that provides easy access to the main components of the pump. Automatic
versions with power up to 1,5 kW. ATEX version available for use in potentially explosive environments. (ATEX certifications: II2G Ex db k IIB T4 or IEC EX:
Ex db IIB T4 Gb).
CONSTRUCTION FEATURES OF THE PUMP
Pump body and impeller in cast iron. Motor shaft in AISI 304 stainless steel. Double mechanical seal in SiC-SiC/SiC-C in oil chamber not in contact with the
pumped liquid, independent of the direction of rotation. Delivery port both flanged and threaded.
CONSTRUCTION FEATURES OF THE MOTOR
Available in single-phase asynchronous motor (MA / MNA versions) and three-phase motor (TNA versions). Rotor mounted on lubricated bearings.
Continuous operation in S1 with the motor completely immersed. Dry running for a maximum time of 10 minutes. Over-temperature sensors in the motor
windings with intervention threshold at +130°C. Quick-bonded resin-bonded cable gland, 07RN8-F power cable. Single-phase versions with integrated
capacitor, available with float for automatic operation (MA) with powers up to 1,5 kW. In the three-phase motors the over-temperature sensor connection
is responsibility of the user
