| Model | Motor Power | Power Supply | Float Switch | Control Type | Max Flow Rate | Max Head | Estimated Delivery | Price | Add |
|---|---|---|---|---|---|---|---|---|---|
| 60211233H | FEKA VS GRINDER 1000 MA | 60211233H FEKA VS GRINDER 1000 M-A | 1.0 kW | Single phase 230/1/50 | Yes | Automatic | 120 l/min | 25m | 2 - 5 Days Delivery | £511.00 | |
| 60211234H | FEKA VS GRINDER 1000 M-NA | 1.0 kW | Single phase 230/1/50 | No | Manual | 120 l/min | 25m | 2 - 5 Days Delivery | £503.00 | |
| 60211235H | FEKA VS GRINDER 1000 TNA | 60211235H FEKA VS GRINDER 1000 T-NA | 1.0 kW | Three phase 400/3/50 | No | Manual | 120 l/min | 25m | 2 - 5 Days Delivery | £503.00 |
Performance

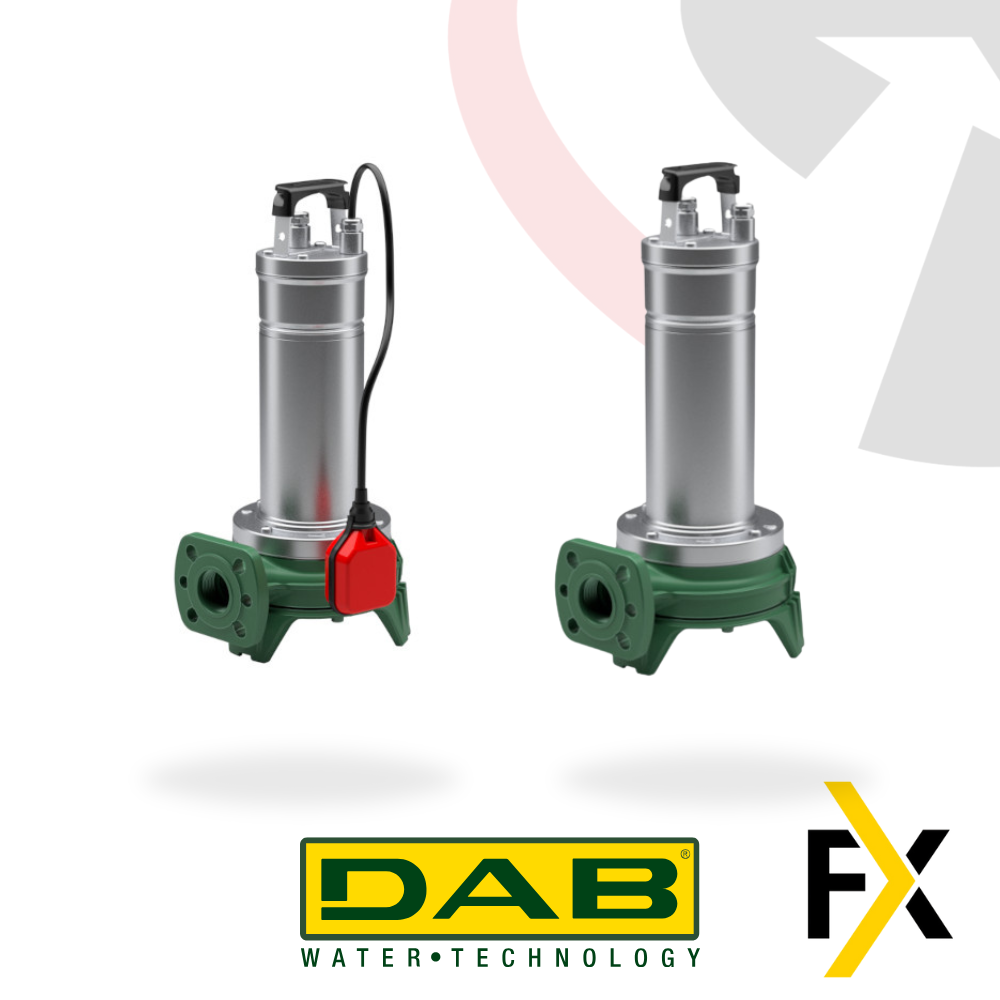

The DAB Feka VS Grinder is a high head submersible sewage pump with an integrated shredding system, designed for wastewater applications where small diameter pipework, long discharge runs or higher pressure are required.
Unlike standard solids-handling sewage pumps, the Feka VS Grinder shreds waste before discharge. This makes it suitable for fixed or portable installations where clogging is a risk and where wastewater needs to be lifted or transferred through restricted pipework.
Applications
- Commercial building wastewater systems
- Sewage lifting applications with small diameter pipework
- Basements, cellars and below-ground drainage systems
- Campsites, tourist facilities and remote buildings
- Hotels, restaurants and catering premises
- Construction sites and civil engineering drainage
- Residential properties requiring high head sewage transfer
Its compact design and shredding capability make the Feka VS Grinder particularly suitable for permanent installations with narrow pipework or high discharge head requirements.
Feka VS vs Feka VS Grinder
| Feka VS | Feka VS Grinder |
|---|---|
| High flow wastewater pumping | High head sewage transfer |
| 50 mm solids passage | Integrated shredding system |
| Flood water and general dirty water | Sewage and grey water |
| General wastewater drainage | Small bore pipework and long discharge runs |
Construction
The pump body and base are manufactured from cast iron for durability. The seal holder cover, motor casing, cap and handle are made from stainless steel, while the shredding system is manufactured from AISI 630 stainless steel. The motor shaft is AISI 316 stainless steel.
A double mechanical seal with an intermediate oil chamber protects the pump during submerged operation. The pump-side seal is silicon carbide/silicon carbide, with a carbon/alumina seal on the motor side.
Motor
The Feka VS Grinder uses a watertight submersible asynchronous motor, cooled by the pumped liquid. The rotor is mounted on oversized, greased-for-life ball bearings for quiet operation and long service life.
- Single phase versions include capacitor and thermo-amperometric protection

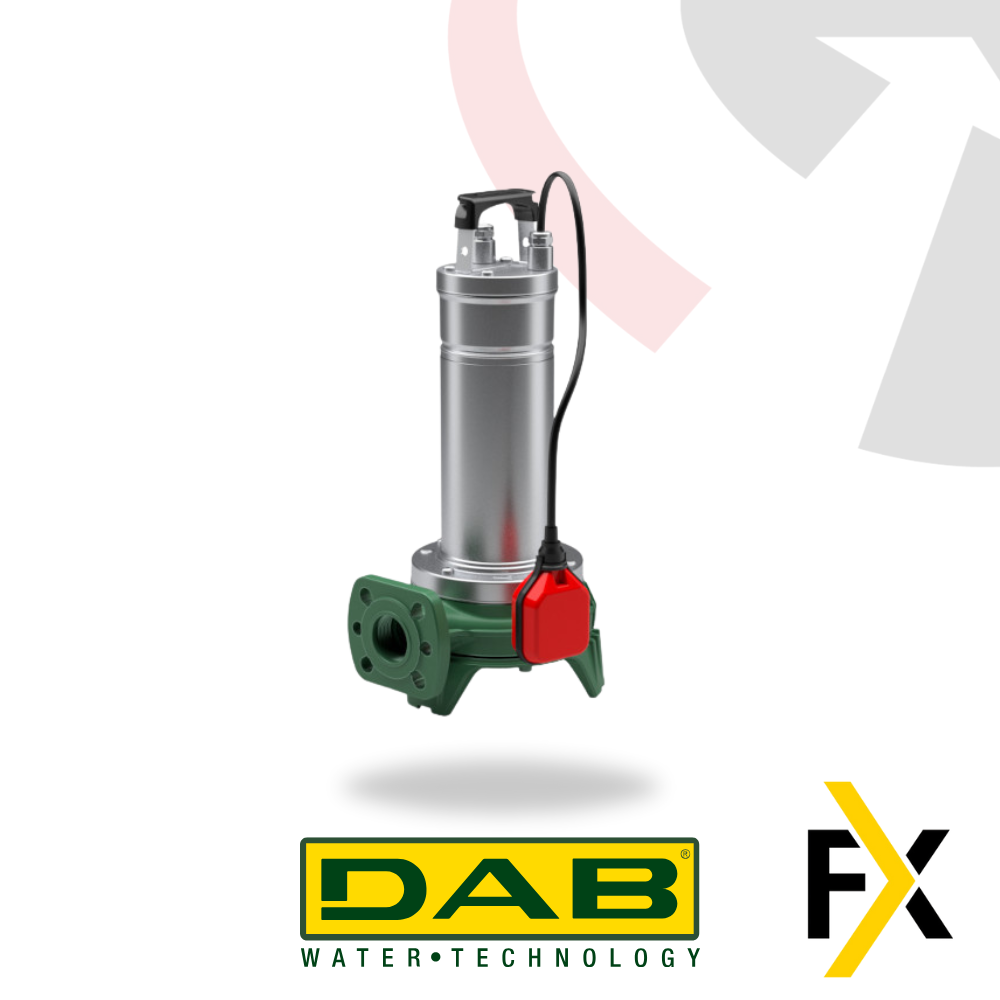

- Single phase automatic version available with integrated float switch

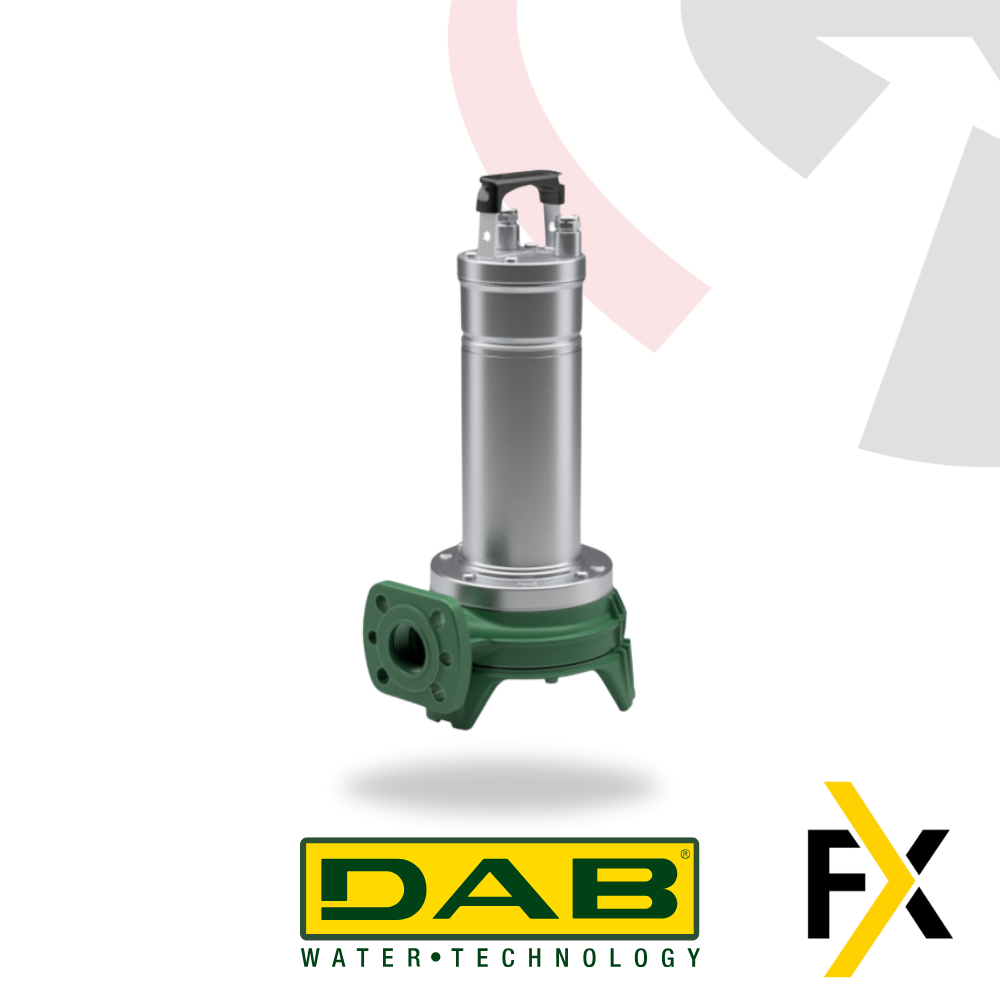

- Three phase version includes thermal protection for connection to a control panel
- Built to EN 60335-2-41 standards
Key Specifications
- Flow rate: up to 14.4 m³/h
- Maximum flow rate: 240 l/min
- Total head: up to 25 m
- Pumped liquid: sewage water and grey water
- Solids handling: integrated shredding system
- Outlet: 1 1/2" GAS, DN32 and DN40
- Impeller: cast iron vortex impeller with shredder
- Pump body and base: cast iron
- Shredding system: AISI 630 stainless steel
- Motor casing and handle: stainless steel
- Motor shaft: AISI 316 stainless steel
- Mechanical seal: double mechanical seal in oil chamber
- Motor: submersible asynchronous, continuous duty
- Insulation class: F
- Protection class: IP68
- Maximum immersion depth: 7 m
- Liquid temperature range: 0°C to +40°C
- Installation: fixed or mobile, vertical position
- Power cable: H07RN8-F
- Power supply: 220–240 V single phase or 380–415 V three phase, 50 Hz
- Certification: EN 12050-1 compliant
