| Estimated Delivery | Add | |||||
|---|---|---|---|---|---|---|
| 103042370H | FEKA VS 1200 M-NA | 103042370H | FEKA VS 1200 M-NA | 50 Hz kW | 436.6 l/min | 2-4 Days |
£398.00
Save £278.00 (41% off)
|
|
| 103042360H | FEKA VS 1200 M-A | 103042360H | FEKA VS 1200 M-A | 50 Hz kW | 540 l/min | 2-4 Days |
£401.00
Save £279.00 (41% off)
|
|
| 103040100H | FEKA VS 1000 T-NA | 103040100H | FEKA VS 1000 T-NA | 50 Hz kW | 466 l/min | 2-4 Days |
£393.00
Save £273.00 (40% off)
|
|
| 103042350H | FEKA VS 1000 M-NA | 103042350H | FEKA VS 1000 M-NA | 50 Hz kW | 472 l/min | 2-4 Days |
£372.00
Save £260.00 (41% off)
|
|
| 103042340H | FEKA VS 1000 M-A | 103042340H | FEKA VS 1000 M-A | 50 Hz kW | 472 l/min | 2-4 Days |
£375.00
Save £261.00 (41% off)
|
|
| 103040060H | FEKA VS 750 T-NA | 103040060H | FEKA VS 750 T-NA | 50 Hz kW | 395 l/min | 2-4 Days |
£356.00
Save £248.00 (41% off)
|
|
| 103042330H | FEKA VS 750 M-NA | 103042330H | FEKA VS 750 M-NA | 50 Hz kW | 436.6 l/min | 2-4 Days |
£333.00
Save £232.00 (41% off)
|
|
| 103042320H | FEKA VS 750 M-A | 103042320H | FEKA VS 750 M-A | 50 Hz kW | 436.6 l/min | 2-4 Days |
£336.00
Save £234.00 (41% off)
|
|
| 103040020H | FEKA VS 550 T-NA | 103040020H | FEKA VS 550 T-NA | 50 Hz kW | 348 l/min | 2-4 Days |
£339.00
Save £236.00 (41% off)
|
|
| 103042310H | FEKA VS 550 M-NA | 103042310H | FEKA VS 550 M-NA | 50 Hz kW | 385 l/min | 2-4 Days |
£320.00
Save £221.00 (40% off)
|
|
| 103042300H | FEKA VS 550 M-A | 103042300H | FEKA VS 550 M-A | 50 Hz kW | 385 l/min | 2-4 Days |
£320.00
Save £223.00 (41% off)
|
|
| 103040140H | FEKA VS 1200 T-NA | 103040140H | FEKA VS 1200 T-NA | 50 Hz kW | 534 l/min | 2-4 Days |
£414.00
Save £288.00 (41% off)
|

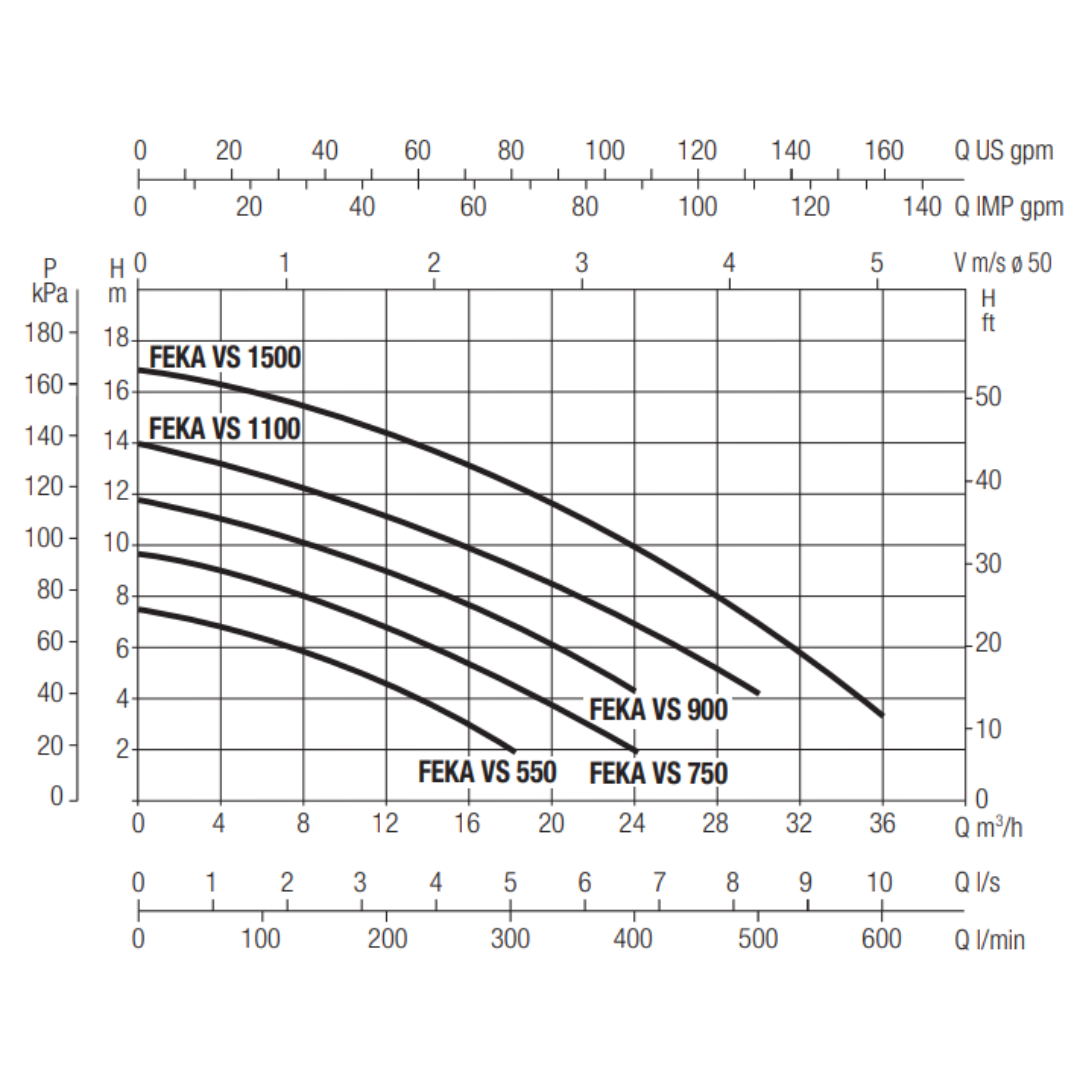

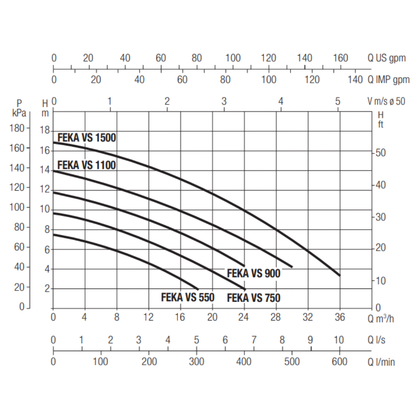

Performance

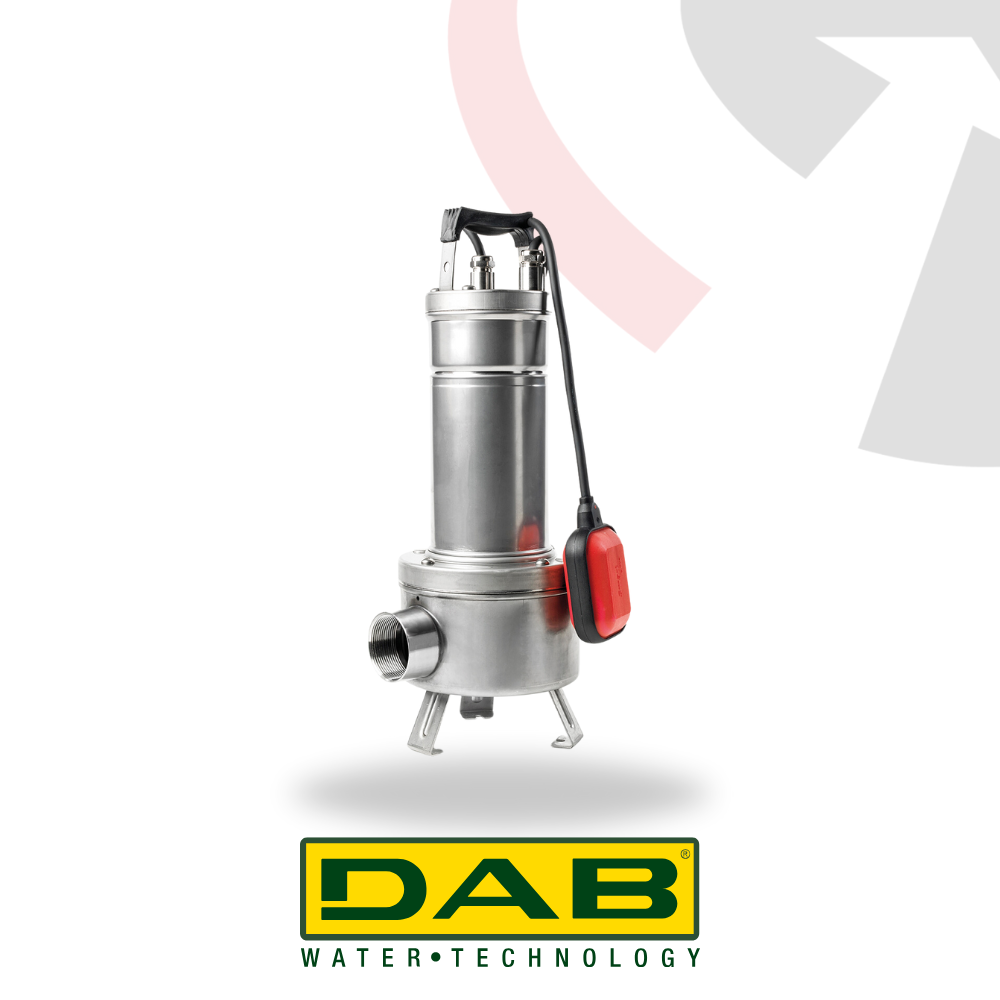

The DAB Feka VS is a heavy duty submersible centrifugal pump designed for lifting wastewater and sewage containing suspended solids up to 50 mm. Constructed entirely from stainless steel and fitted with a backflowing vortex impeller, it delivers reliable drainage performance in residential and commercial building services. The range offers flow rates from 3 to 32 m³/h and heads up to 14 metres.
Applications
- Lifting wastewater and sewage in domestic and commercial properties
- Emptying pits, tanks and basements with dirty water
- Drainage systems prone to clogging due to solid content
- Residential applications requiring higher flow performance
- Installations requiring EN 12050-2 certified wastewater pumps

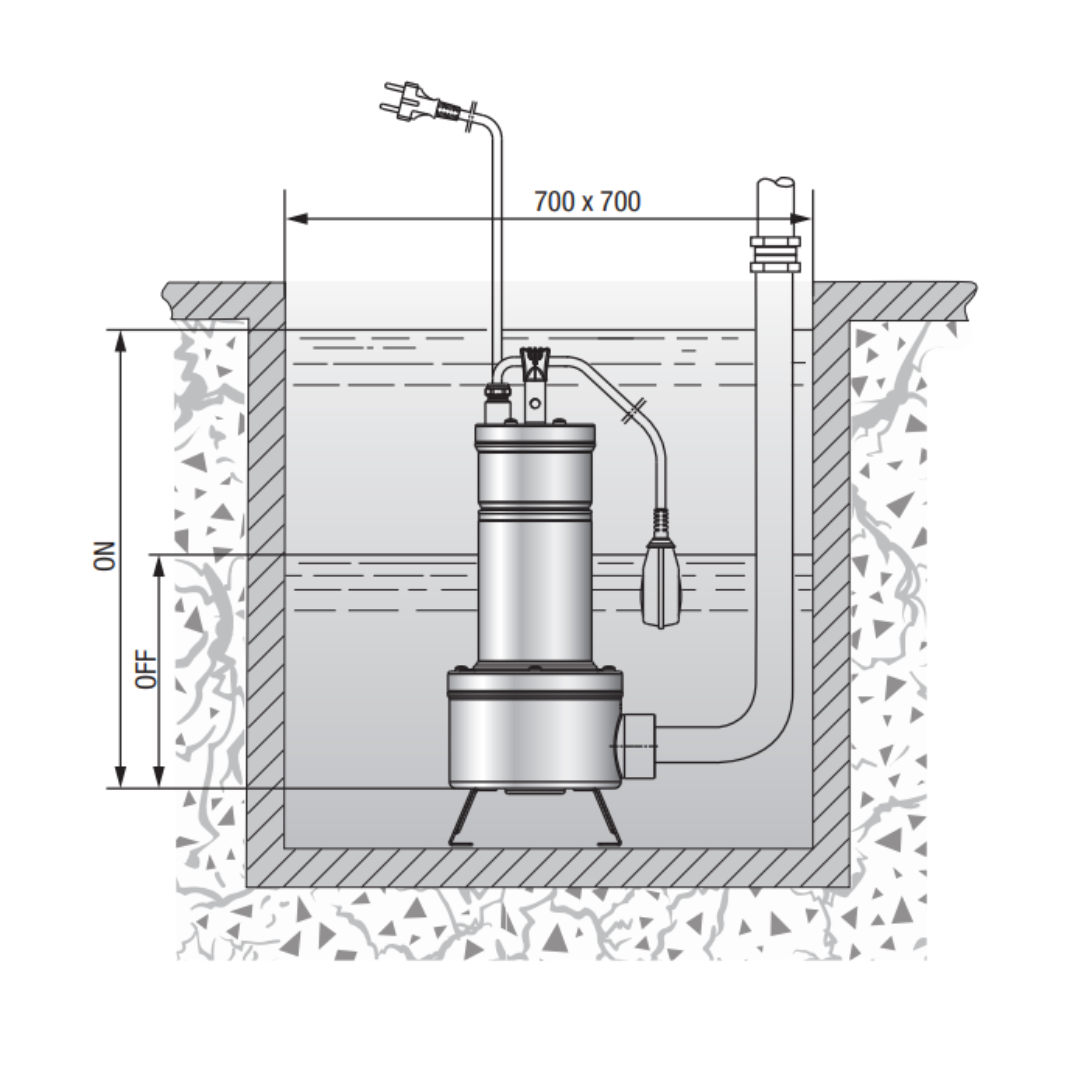

Automatic versions with float switch are available for hands free operation. The compact vertical design makes the Feka VS suitable for pump chambers and confined spaces.
Construction
The pump body, motor casing, seal cover and handle are manufactured entirely from stainless steel for maximum corrosion resistance. The microcast stainless steel vortex impeller is designed to minimise clogging while allowing the passage of solids up to 50 mm. The shaft is AISI 316 stainless steel. A double mechanical seal in silicon carbide is housed in an oil bath for extended durability.
Motor
Fitted with a submersible asynchronous motor designed for continuous duty. The rotor is supported by oversized, greased for life ball bearings to ensure quiet and reliable operation.
- Single phase versions include a capacitor, built in thermal protection and a 10 m cable with plug
- Three phase versions include a 10 m cable and require external motor protection
Complies with EN 60335-2-41 standards. Protection class IP68, insulation class F.
Key Specifications
- Flow rate: 3 to 32 m³/h
- Total head: up to 14 m
- Maximum solid size: 50 mm
- Pump body, casing and seal cover: stainless steel
- Impeller: microcast stainless steel, vortex type
- Shaft: AISI 316 stainless steel
- Mechanical seal: double silicon carbide seal in oil chamber
-
Power supply:
- Single phase: 220–240 V, 50 Hz (with or without float)
- Three phase: 400 V, 50 Hz
- Motor: submersible asynchronous, continuous duty
- Insulation class: F
- Protection class: IP68
- Liquid temperature range: 0°C to +50°C
- Maximum immersion depth: 10 m
- Installation: fixed or portable, vertical position
- Certification: EN 12050-2 compliant
- Cable: 10 m H07RN-F
