| Model | Price | Add |
|---|---|---|
| 60180454 | FKC 65 22.2 T5 400D EX | £2,153.00 | |
| 60180462 | FKC 65 30.2 T5 400D EX | £2,422.00 | |
| 60180455 | FKC 80 15.4 T5 400D EX | £2,287.00 | |
| 60180463 | FKC 80 22.4 T5 400D EX | £2,556.00 | |
| 60180466 | FKC 80 30.4 T5 400D EX | £2,961.00 | |
| 60180467 | FKC 80 40.4 T5 400D EX | £3,095.00 | |
| 60180460 | FKC 80 55.4 T5 400Y/D EX | £4,575.00 | |
| 60180461 | FKC 80 75.4 T5 400Y/D EX | £4,844.00 | |
| 60180464 | FKC 100 15.4 T5 400D EX | £2,395.00 | |
| 60180465 | FKC 100 22.4 T5 400D EX | £2,692.00 | |
| 60180468 | FKC 100 30.4 T5 400D EX | £3,499.00 | |
| 60180469 | FKC 100 40.4 T5 400D EX | £3,633.00 | |
| 60180457 | FKC 100 55.4 T5 400Y/D EX | £4,979.00 | |
| 60180458 | FKC 100 75.4 T5 400Y/D EX | £5,113.00 | |
| 60180471 | FKC 150 30.4 T5 400D EX | £4,037.00 | |
| 60180470 | FKC 150 40.4 T5 400D EX | £4,575.00 | |
| 60180459 | FKC 150 55.4 T5 400Y/D EX | £5,116.00 | |
| 60180456 | FKC 150 75.4 T5 400Y/D EX | £5,922.00 |
No matching variants found.

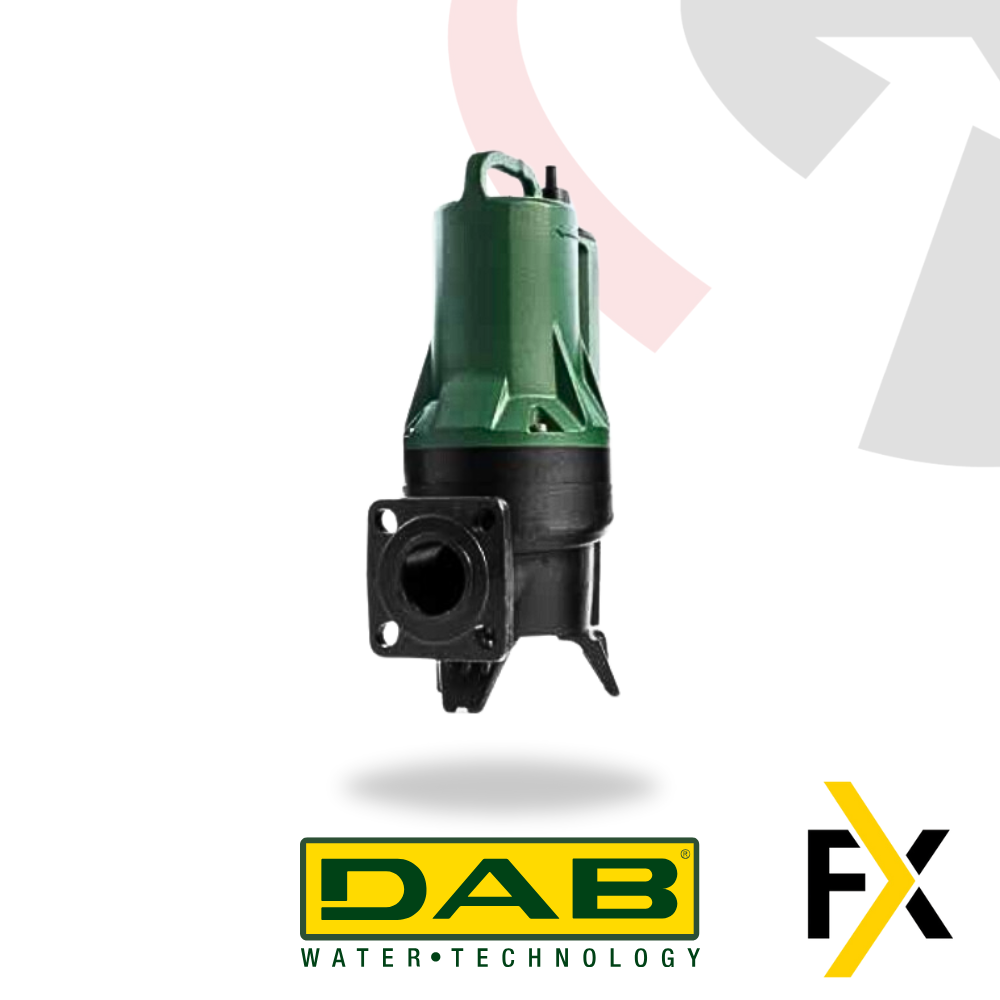

DAB FK Submersible Wastewater Pump
Heavy-Duty Pump for Wastewater and Sewage in Commercial and Industrial Installations
The FK range is engineered for performance, reliability, and simplified maintenance. Built with durability and energy efficiency in mind, these pumps are ideal for public buildings, industrial plants, transport hubs, and urban infrastructure.
Applications
- Pumping wastewater and sewage in commercial, public, and industrial sites
- Flood control and drainage in subways, basements, and parking areas
- Transfer of water with high solid or fibre content, including surface and residential wastewater
- ATEX-certified models available for use in potentially explosive environments
Pump Construction
- Available with vortex or single-channel impellers to suit different solids handling needs
- Single-unit cartridge seal with double mechanical seals (SiC-SiC on the pump side, SiC-C on the motor side)
- EN 1092-1 flanged outlet sizes: DN 65, DN 80, DN 100, DN 150
- No-clog impeller design for reliable solids handling
- Compliant with EN 12050-1 for wastewater systems
Motor Construction
- IE3 premium efficiency three-phase, squirrel cage motor
- Continuous S1 operation when fully submerged; S3 operation based on liquid level
- Seal chamber includes an optional moisture sensor to alert for mechanical seal wear
- Stator windings include bi-metallic thermal protection (130°C max)
- Start-up types: DOL for 1.1–4.0 kW, Star-Delta for 5.5–11.0 kW
- Bearings lubricated for life with a minimum 50,000-hour lifespan
- Stainless steel shaft designed for high fatigue resistance
Technical Overview
- Viscosity: 1 mm²/s
- Protection Class: IP68
- Insulation Class: F
- Max Starts per Hour: 20
- Frequency: 50/60 Hz
