| Model | Price | Add |
|---|---|---|
| 60206533 | DCM-G 65-420 A BAQE 0,25 | £2,027.00 | |
| 60206496 | DCM-G 65-540 A BAQE 0,37 | £2,076.00 | |
| 60206497 | DCM-G 65-660 A BAQE 0,55 | £2,130.00 | |
| 60206498 | DCM-G 65-760 A BAQE 0,55 | £2,186.00 | |
| 60180075 | DCM-G 65-920 A BAQE 0,75 - IE3 | £2,691.00 | |
| 60180076 | DCM-G 65-1080 A BAQE 1,1 - IE3 | £2,797.00 | |
| 60180077 | DCM-G 65-1200 A BAQE 1,5 - IE3 | £3,020.00 | |
| 60180078 | DCM-G 65-1530 A BAQE 2,2 - IE3 | £3,385.00 | |
| 60180079 | DCM-G 65-1680 A BAQE 3 - IE3 | £3,446.00 | |
| 60180080 | DCM-G 65-2380 A BAQE 4 - IE3 | £3,703.00 | |
| 60206499 | DCM-G 80-550 A BAQE 0,55 | £2,675.00 | |
| 60180082 | DCM-G 80-650 A BAQE 0,75 - IE3 | £3,215.00 | |
| 60180083 | DCM-G 80-740 A BAQE 1,1 - IE3 | £3,168.00 | |
| 60180084 | DCM-G 80-890 A BAQE 1,5 - IE3 | £3,384.00 | |
| 60180085 | DCM-G 80-1050 A BAQE 2,2 - IE3 | £3,726.00 | |
| 60180086 | DCM-G 80-1530 A BAQE 3 - IE3 | £3,788.00 | |
| 60180087 | DCM-G 80-1700 A BAQE 4 - IE3 | £4,034.00 | |
| 60180088 | DCM-G 80-2410 A BAQE 5,5 - IE3 | £5,380.00 | |
| 60167327 | DCM-G 80-2700 A BAQE 7,5 - IE3 | £6,470.00 | |
| 60167328 | DCM-G 80-3420 A BAQE 11 - IE3 | £7,332.00 | |
| 60180089 | DCM-G 100-510 A BAQE 0,75 - IE3 | £3,651.00 | |
| 60180090 | DCM-G 100-650 A BAQE 1,1 - IE3 | £3,758.00 | |
| 60180091 | DCM-G 100-660 A BAQE 1,5 - IE3 | £3,968.00 | |
| 60180092 | DCM-G 100-865 A BAQE 2,2 - IE3 | £4,310.00 | |
| 60180093 | DCM-G 100-1020 A BAQE 3 - IE3 | £4,370.00 | |
| 60180094 | DCM-G 100-1320 A BAQE 4 - IE3 | £4,623.00 | |
| 60180095 | DCM-G 100-1650 A BAQE 5,5 - IE3 | £5,966.00 | |
| 60167329 | DCM-G 100-2050 A BAQE 7,5 - IE3 | £7,055.00 | |
| 60167330 | DCM-G 100-2550 A BAQE 11 - IE3 | £7,915.00 | |
| 60167331 | DCM-G 100-3290 A BAQE 15 - IE3 | £9,053.00 | |
| 60167332 | DCM-G 100-3680 A BAQE 18,5 - IE3 | £9,921.00 | |
| 60167333 | DCM-G 100-4100 A BAQE 22 - IE3 | £11,644.00 | |
| 60180096 | DCM-G 125-1075 A BAQE 4 - IE3 | £5,638.00 | |
| 60180097 | DCM-G 125-1270 A BAQE 5,5 - IE3 | £6,989.00 | |
| 60167334 | DCM-G 125-1560 A BAQE 7,5 - IE3 | £8,072.00 | |
| 60167335 | DCM-G 125-2100 A BAQE 11 - IE3 | £8,934.00 | |
| 60167336 | DCM-G 125-2550 A BAQE 15 - IE3 | £10,070.00 | |
| 60167337 | DCM-G 125-3200 A BAQE 18,5 - IE3 | £10,933.00 | |
| 60167338 | DCM-G 125-3600 A BAQE 22 - IE3 | £12,655.00 | |
| 60167339 | DCM-G 125-4022 A BAQE 30 - IE3 | £15,386.00 | |
| 60180098 | DCM-G 150-955 A BAQE 5,5 - IE3 | £7,971.00 | |
| 60167340 | DCM-G 150-1322 A BAQE 7,5 - IE3 | £9,314.00 | |
| 60167341 | DCM-G 150-1600 A BAQE 11 - IE3 | £10,402.00 | |
| 60167342 | DCM-G 150-1950 A BAQE 15 - IE3 | £11,261.00 | |
| 60167343 | DCM-G 150-2200 A BAQE 18,5 - IE3 | £12,404.00 | |
| 60167344 | DCM-G 150-2405 A BAQE 22 - IE3 | £13,263.00 |

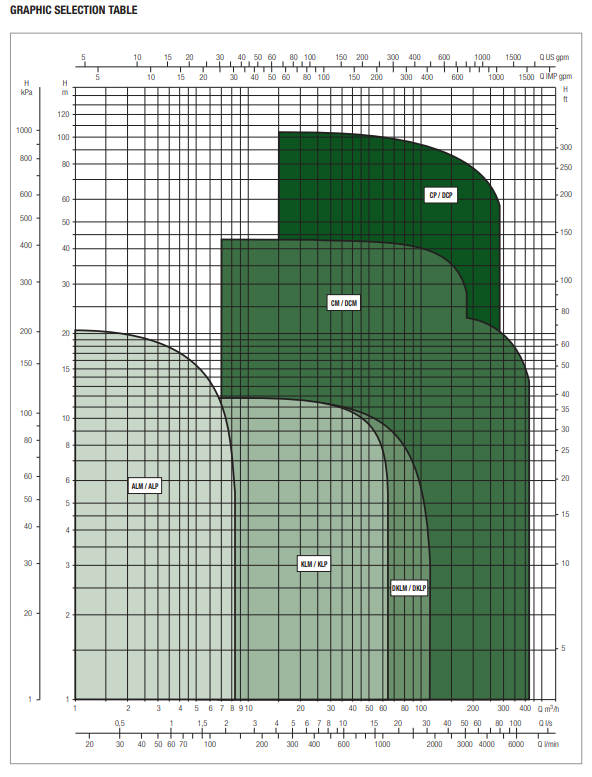

Performance

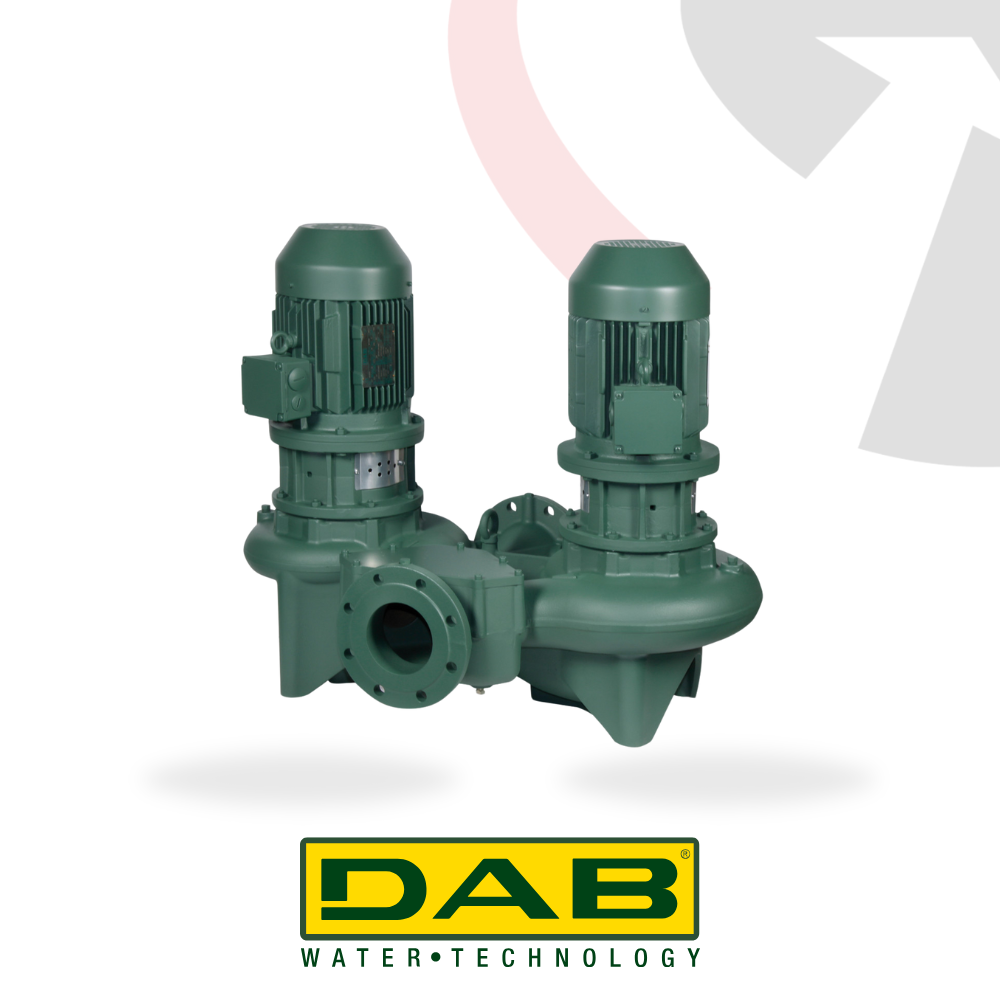

The DAB DCM series comprises twin in-line circulation pumps designed for high demand heating, cooling and sanitary systems. With flow rates up to 420 m³/h and heads up to 41 metres, DCM units deliver reliable circulation with built in redundancy for large scale installations.
Applications
Commonly used in commercial HVAC, district heating and industrial water transfer. DCM twin head pumps support continuous operation during maintenance or peak load conditions and offer flexible control for alternating or simultaneous duty.
Construction
DCM units include two flanged pump assemblies with cast iron bodies, stainless steel motor shafts and impellers manufactured from cast iron or technopolymer depending on the model. Motors are three phase, externally ventilated and asynchronous with IP55 protection and class F insulation.
- DCM-G models: fitted with a coupling for simplified servicing and easier motor access.
Key Specifications
- Flow rate: 1.2 to 420 m³/h
- Head: up to 41 metres
-
Liquid temperature:
- DN 40 to 50: –10°C to +130°C
- All other sizes: –10°C to +140°C
-
Max system pressure:
- DN 40 to 50: 10 bar
- All other sizes: 16 bar
- Max ambient temperature: 40°C
- Flanging: PN 16
- Protection rating: IP55
- Insulation class: F
- Glycol compatibility: up to 30%
Delivery
