DAB Pumps

SKU:60209375 | DIVERTRON 650

Divertron Submersible DAB Pump | Integrated Booster for Rainwater & Irrigation

Divertron Submersible DAB Pump | Integrated Booster for Rainwater & Irrigation

Regular price £390.00
Regular price £583.00 Sale price £390.00
Exclusive Online Price Sold out
Price excludes VAT + (Free UK Delivery)

Delivery Time: 4-6 Weeks

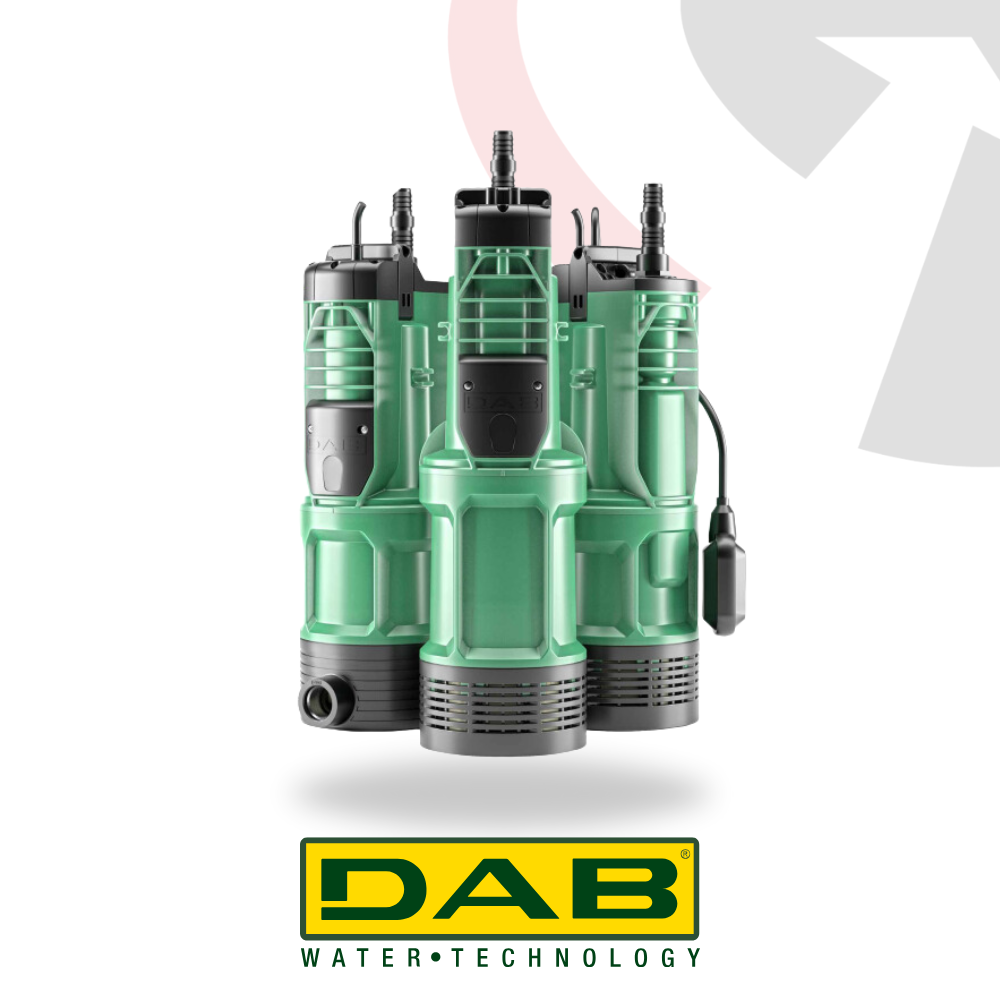

DIVERTRON

Submersible Pumps with Integrated Electronics

The Divertron series by DAB is a revolutionary submersible pump solution designed for clean water applications, including rainwater reuse, water pressure boosting, and garden irrigation. Its advanced electronic integration ensures automatic operation with enhanced energy efficiency, making it ideal for residential and light commercial use.

Key Features

  • Built-In Electronics: Automatic on/off switch for easy operation.
  • Energy Efficient: Consumes 30% less power than previous models, achieving better performance while reducing energy bills.
  • Compact Design: Easy to install in confined spaces, ideal for wells and tanks.
  • Corrosion & Abrasion Resistant: Suitable for use in harsh environments with clean, non-abrasive water.
  • Automatic Dry Run Protection: Integrated pressure switch and flow sensor ensure the pump doesn't run dry, enhancing durability.
  • Improved Performance: Featuring high-efficiency impellers and a robust mechanical seal for superior output and longevity.

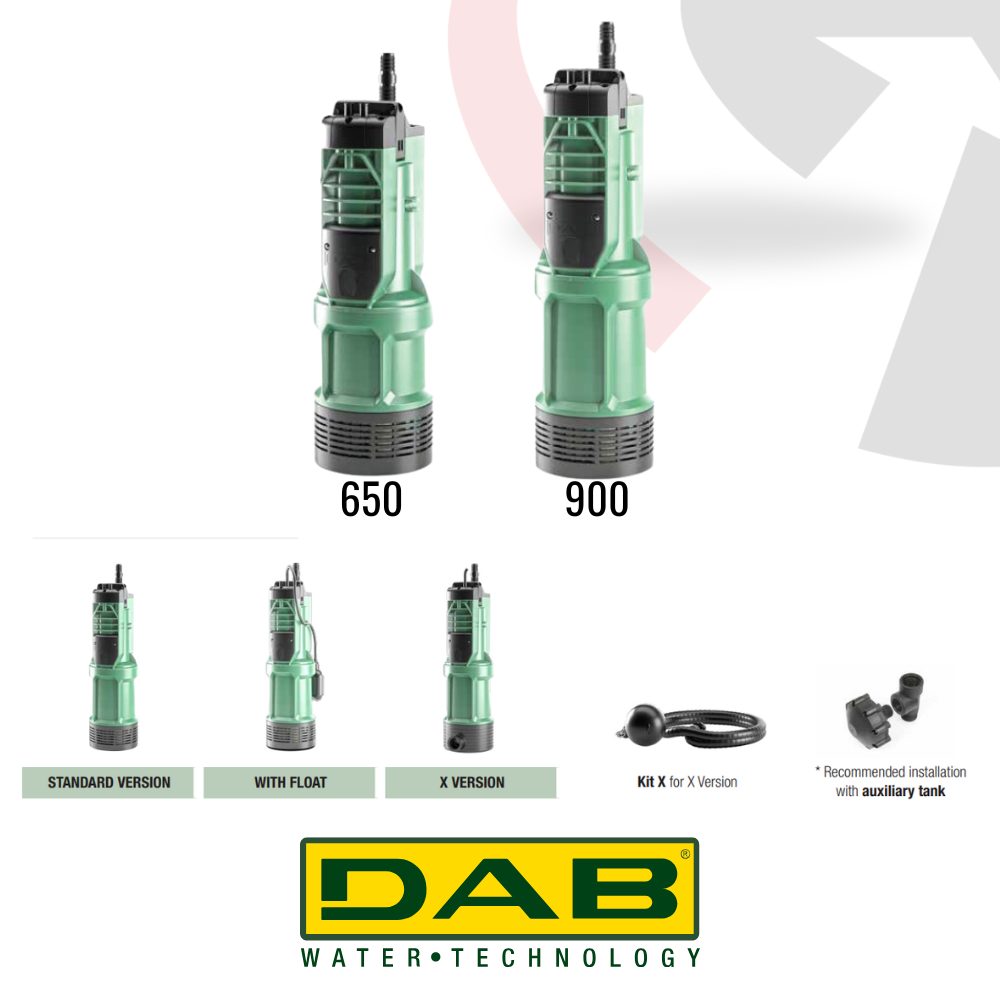

  • Special Versions Available: Options include a float switch and a filter kit to prevent debris intake.

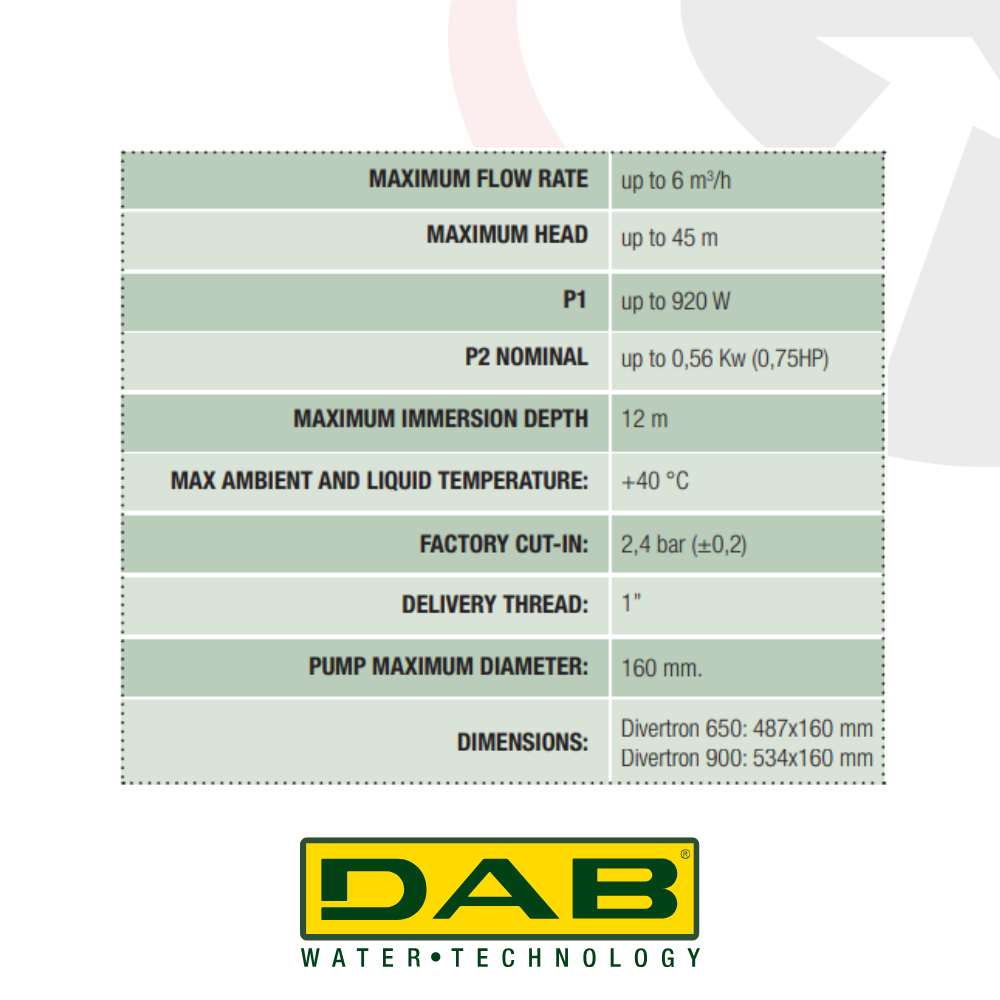

Technical Specifications

  • Flow Rate: From 1 to 6 cubic metres per hour
  • Head:
      Up to 45 metres (900 version)
      Up to 30 metres (650 version)
  • Maximum Immersion Depth: 15 metres (12 metres recommended for standard operation)
  • Pumped Liquid Type: Clean, non-viscous, chemically neutral, and free from solids or abrasive substances
  • Liquid Temperature Range: 0 to 40 degrees Celsius
  • Connections: 1 inch thread (includes four-section fitting reducer)
  • Pump Diameter: 160 mm
  • Impeller Material: Technopolymer
  • Maximum Starts per Hour: 20
  • Protection Class: IP68
  • Motor Insulation Class: F
  • Power Supply: 230 V / 50 Hz (single-phase)
  • Power Cable: 15-metre H07RNF cable with plug
  • Installation:  Fixed or movable in vertical position
  • Optional Variants: Different cable lengths and plug types available on request

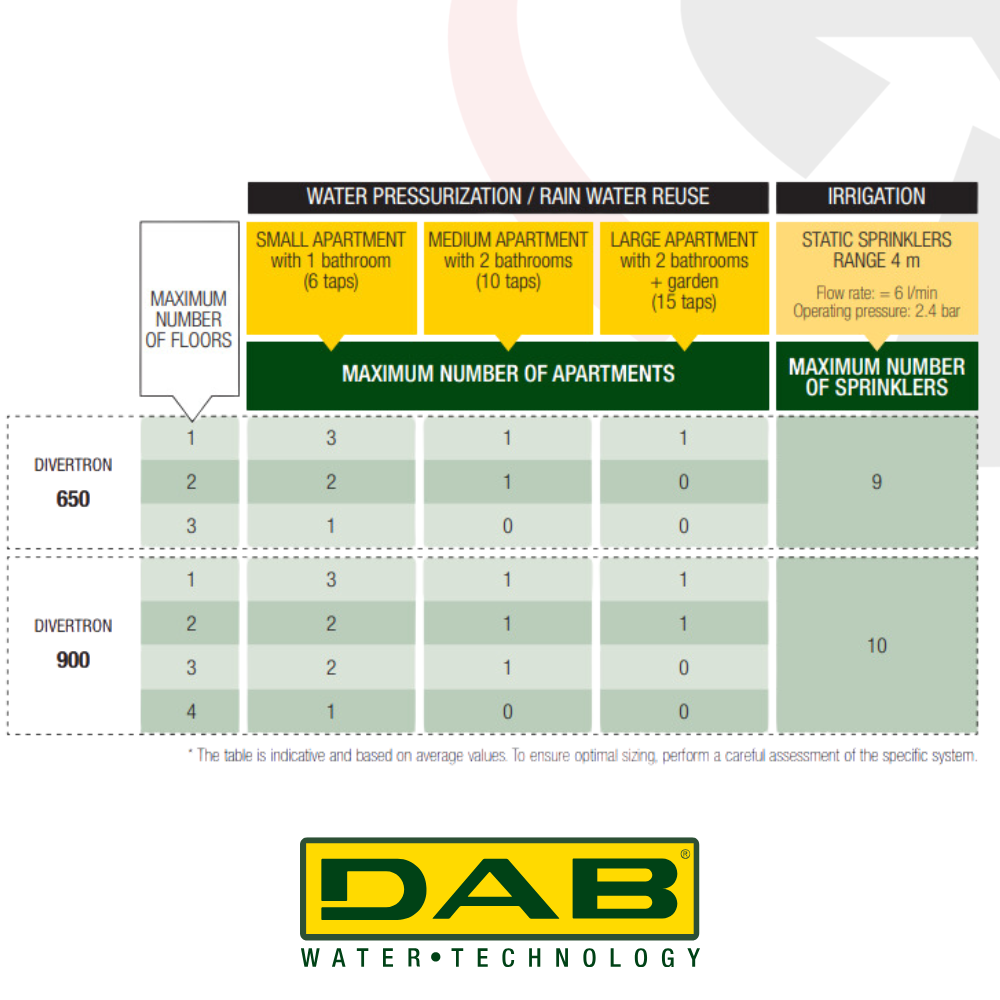

Applications

  • Rainwater Harvesting: Ideal for collecting and reusing rainwater in residential systems.
  • Garden Irrigation: Perfect for maintaining gardens, lawns, and vegetable patches.
  • Domestic Water Supply: Provides reliable water pressure for homes.

Construction Features

  • Pump Body & Impellers: Made from durable techno polymer to resist corrosion and oxidation, ensuring long-term reliability.
  • Non-Return Valve: Integrated into the delivery system for efficient operation.
  • Optional Accessories: The X version includes a techno polymer anti-debris filter and a brass-insert fitting for use with float suction kits.

Motor Features

  • Asynchronous Motor: Stainless-steel shaft (AISI 416 + AISI 304) for added strength.
  • Integrated Starting Capacitor & Thermal Protection: Safeguards against overheating.

Electronics

  • Integrated Pressure Switch & Flow Sensor: Automatically switches the pump on and off based on system demand, with dry-run protection for enhanced reliability.
  • Improved Durability: The second-generation Divertron pump is designed to be more efficient, durable, and easier to install.
