Ebara
SKU:1875000170 | 80DMLVF51.4M4BG
DMLF | Wastewater Lift Pumps
DMLF | Wastewater Lift Pumps
DML - DMLF
Couldn't load pickup availability

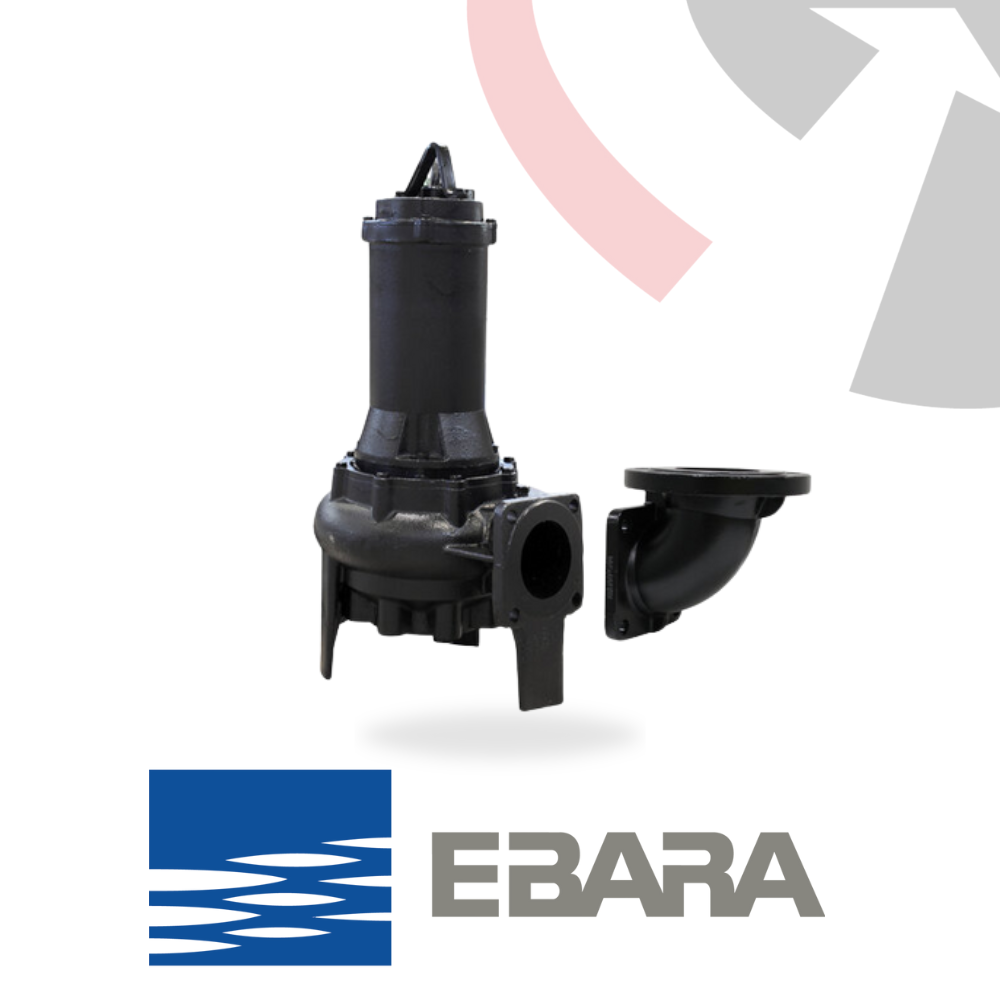

Ebara DMLF Submersible Wastewater Pump - Cast Iron
Performance
The Ebara DMLF submersible wastewater pump delivers flow rates up to 45 m³/h and total heads up to 16.5 m. Its single-channel impeller ensures efficient handling of wastewater with solids up to 40 mm in UK domestic and light industrial applications.
Applications
Designed for UK domestic and civil use, the DMLF is ideal for evacuating wastewater, drainage of underwater areas, and handling dirty water with suspended solids. It suits emptying seepage water and small-scale sanitary services.
Construction
Featuring a cast iron pump body and impeller, the DMLF offers sturdy construction for fixed or mobile installations. It includes a stainless steel shaft and dual mechanical seals (Silicon Carbide on the impeller side, Carbon/Ceramic on the motor side), ensuring reliability in tough conditions.
Key Specifications:
- Flow rate: up to 45 m³/h
- Total head: up to 16.5 m
- Max. Temperature of the liquid: +40°C
- Poles: 2
- Max. solids passage: 30 mm (DMLF 1.4 kW), 40 mm (DMLF)
- Insulation class: H
- Protection degree: IP68
- Voltage: Single-phase 1~230V +10%
- Max. immersion: 7 m with 10 m cable
- Max. length of fibres: 500 mm
- Pump body: Cast iron
- Impeller: Cast iron
- Shaft: Stainless steel 420B (EN 1.4028)
- Mechanical seal: Impeller side: Silicon Carbide/Silicon Carbide/NBR, Motor side: Carbon/Ceramic/NBR
Delivery
Order the Ebara DMLF submersible wastewater pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
