Ebara

SKU:1875000243 | 100DRD52.7T6AG

DRD | Wastewater Lift Pumps

DRD | Wastewater Lift Pumps

Regular price £2,735.69
Regular price £4,209.00 Sale price £2,735.69
Exclusive Online Price Sold out
Price excludes VAT + (Free UK Delivery)

DRD

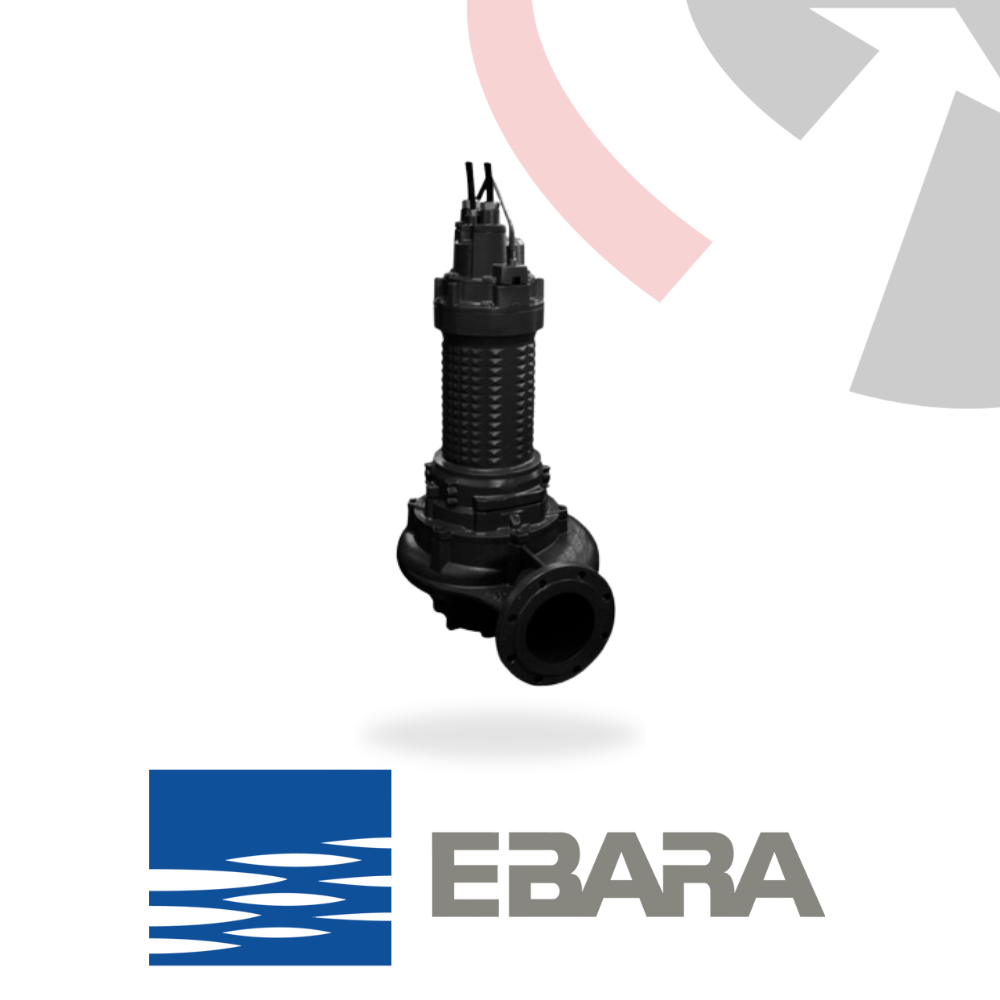

Ebara DRD Submersible Wastewater Pump - Cast Iron

Performance
The Ebara DRD submersible wastewater pump delivers flow rates up to 1800 m³/h and total heads up to 47 m. Its multi-channel impeller (two or three-channel) ensures high hydraulic efficiency for handling wastewater with solids in UK industrial applications.

Applications
Designed for UK industrial and civil use, the DRD is ideal for managing soiled liquids and wastewater in sewage systems. It suits handling liquids with filamentary substances or solid particles and emptying tanks in demanding environments.

Construction
Featuring a cast iron pump body and impeller, the DRD offers robust construction for fixed or mobile installations. It includes a stainless steel shaft and dual mechanical seals (Silicon Carbide on the impeller side, Carbon/Ceramic on the motor side), ensuring reliability with solids passage up to 140 mm.

Key Specifications:

  • Flow rate: up to 1800 m³/h
  • Total head: up to 47 m
  • Max. temperature of the liquid: +40°C
  • Poles: 2, 4, 6, 8
  • Max. solids passage: 30÷140 mm
  • Insulation class: H
  • Protection degree: IP68
  • Voltage: Three-phase 3~400/690V +10%
  • Max. immersion: 7 m with 10 m cable, on request 17 m with 20 m cable
  • Pump body: Cast iron
  • Impeller: Cast iron
  • Shaft: Stainless steel AISI 420B (EN 1.4028)
  • Mechanical seal: Impeller side: Silicon carbide/Silicon carbide/NBR, Motor side: Carbon/Ceramic/NBR

Delivery
Order the Ebara DRD submersible wastewater pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
