| Estimated Delivery | Add | |||
|---|---|---|---|---|
| 60197725 | DTRON2 35/90 230V/50Hz GAS15UK - WRAS | 60197725 | DTRON2 35/90 230V/50Hz GAS15UK - WRAS | — |
£474.00
Save £233.00 (32% off)
|
|
| 60197683 | DTRON2 45/90 230V/50Hz GAS15UK - WRAS | 60197683 | DTRON2 45/90 230V/50Hz GAS15UK - WRAS | — |
£511.00
Save £252.00 (33% off)
|
|
| 60197733 | DTRON2 35/120 230V/50Hz GAS15UK - WRAS | 60197733 | DTRON2 35/120 230V/50Hz GAS15UK - WRAS | — |
£511.00
Save £252.00 (33% off)
|
|
| 60202522 | DTRON2 X 35/90 230V/50Hz GAS 15m UK | 60202522 | DTRON2 X 35/90 230V/50Hz GAS 15m UK | — |
£510.00
Save £251.00 (32% off)
|
|
| 60202523 | DTRON2 X 45/90 230V/50Hz GAS 15m UK | 60202523 | DTRON2 X 45/90 230V/50Hz GAS 15m UK | — |
£548.00
Save £270.00 (33% off)
|
|
| 60202524 | DTRON2 X 35/120 230V/50Hz GAS 15m UK | 60202524 | DTRON2 X 35/120 230V/50Hz GAS 15m UK | — |
£548.00
Save £270.00 (33% off)
|
|
| 60197878 | DTRON3 35/90 230V/50Hz GAS15UK - WRAS | 60197878 | DTRON3 35/90 230V/50Hz GAS15UK - WRAS | — |
£556.00
Save £274.00 (33% off)
|
|
| 60197750 | DTRON3 45/90 230V/50Hz GAS15UK - WRAS | 60197750 | DTRON3 45/90 230V/50Hz GAS15UK - WRAS | — |
£602.00
Save £296.00 (32% off)
|
|
| 60197867 | DTRON3 35/120 230V/50Hz GAS15UK - WRAS | 60197867 | DTRON3 35/120 230V/50Hz GAS15UK - WRAS | — |
£602.00
Save £296.00 (32% off)
|
|
| 60202528 | DTRON3 X 35/90 230V/50Hz GAS 15m UK | 60202528 | DTRON3 X 35/90 230V/50Hz GAS 15m UK | — |
£594.00
Save £292.00 (32% off)
|
|
| 60202529 | DTRON3 X 45/90 230V/50Hz GAS 15m UK | 60202529 | DTRON3 X 45/90 230V/50Hz GAS 15m UK | — |
£637.00
Save £314.00 (33% off)
|
|
| 60202530 | DTRON3 X 35/120 230V/50Hz GAS 15m UK | 60202530 | DTRON3 X 35/120 230V/50Hz GAS 15m UK | — |
£637.00
Save £314.00 (33% off)
|
Performance

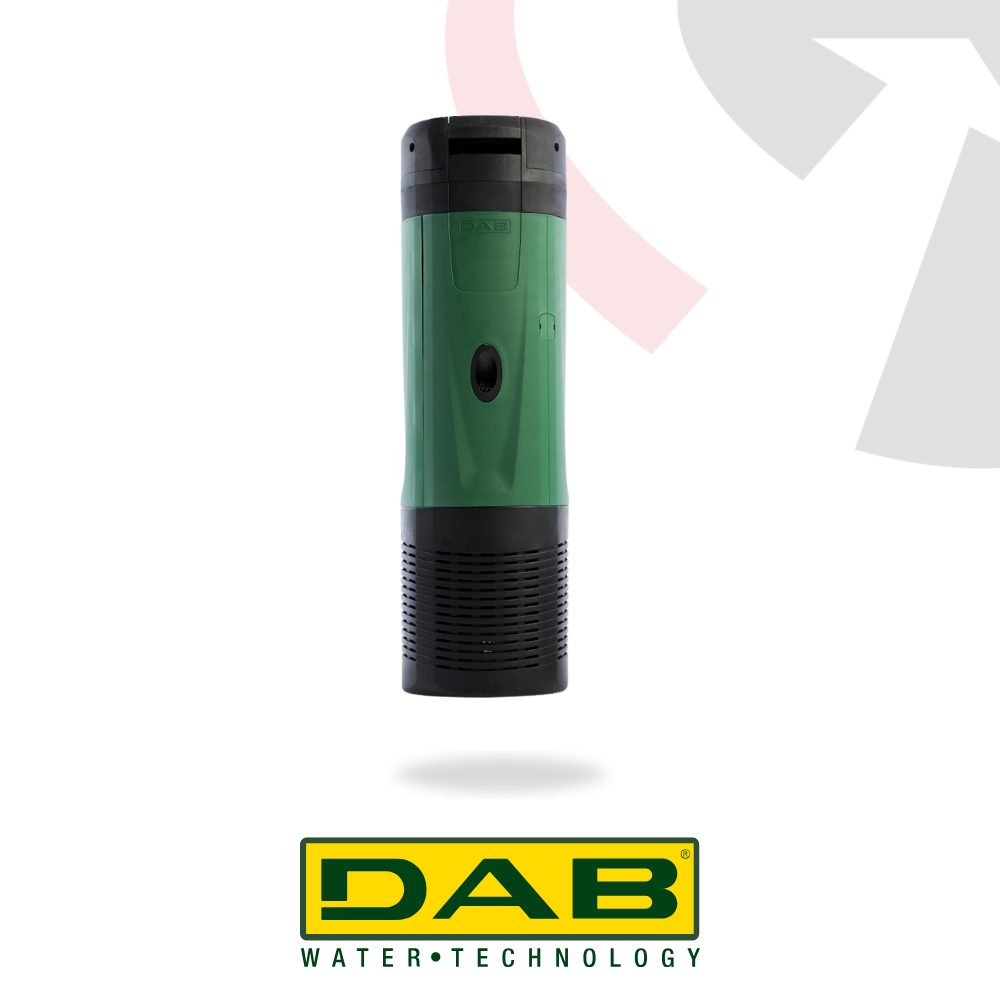

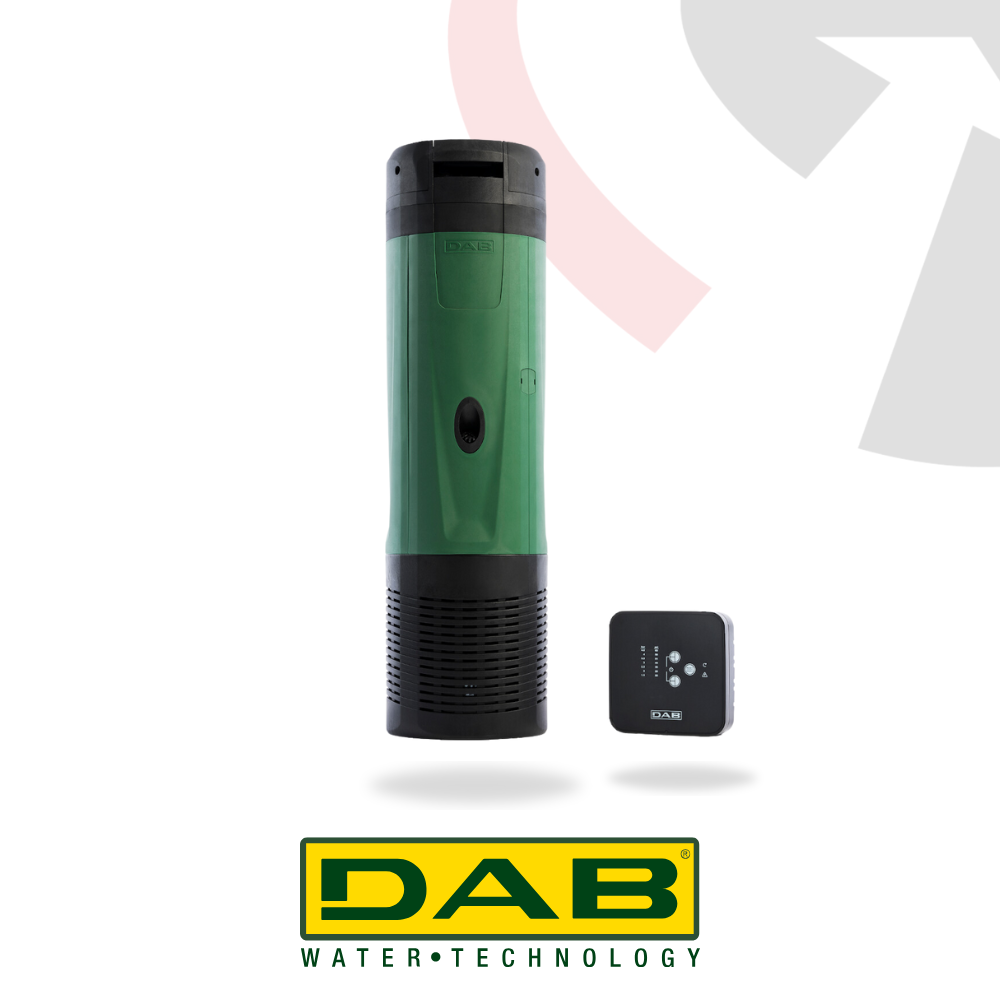

The DAB DTRON 2 and DTRON 3 series are automatic multi-impeller submersible pumps designed for clean water applications that require stable pressure, quiet operation and integrated electronic control. With flow rates up to 7.5 m³/h and heads up to 45 metres, they offer reliable performance for domestic water supply, pressure boosting and rainwater systems.
Overview
- Flow rate: up to 7.5 m³/h
- Head: up to 45 metres
- Liquid type: clean, non abrasive and chemically neutral water
- Built in pressure sensor and electronics for automatic start and stop
- Quiet operation suitable for wells, tanks and cisterns
- Available models: DTRON 2 and the enhanced DTRON 3
Applications
- Domestic water supply from wells, cisterns and rainwater tanks
- Pressure boosting for homes
- Garden irrigation and small scale agricultural use
- Rainwater harvesting in residential systems
- WRAS approved drinking water installations (DTRON 3 X version)
Model Comparison
| Feature | DTRON 2 | DTRON 3 |
|---|---|---|
| Max immersion depth | 12 metres | 15 metres |
| Cut in pressure setting | Not user adjustable | 2.4 bar (±0.2) with Com Box |
| Starts per hour | Up to 30 | Up to 60 |
| Certification for drinking water | X version available on request | WRAS, ACS, NSF 61/372 (X version) |
| Electronics and control | Integrated logic with dry run protection | Advanced control with PLC and Com Box included |
| Installation modes | Horizontal or vertical, submerged or semi submerged | Same + surface installation with DOC68 accessory |
| Pump body and impellers | Technopolymer and AISI 304 stainless steel | Same with modular disassembly for easier maintenance |
| Float switch connection | Optional via external kit | NFC pocket for sealed float integration |
Key Specifications
- Flow rate: up to 7.5 m³/h
- Head: up to 45 metres
- Liquid temperature: 0°C to +50°C
- Minimum suction depth: 110 mm
- Free passage: 2 mm
- Protection class: IP68
- Insulation class: F
- Power supply: 230 V, 50 Hz (single phase)
- Cable length: 10 or 15 metres with plug
Additional Information
Both models can be configured for surface mounting using the DOC68 accessory. The optional X version includes a suction hose and float system for debris avoidance.
Delivery
Free UK mainland delivery.
