Ebara

SKU:2180070004 | DWC-V/I300/1,1

DWC

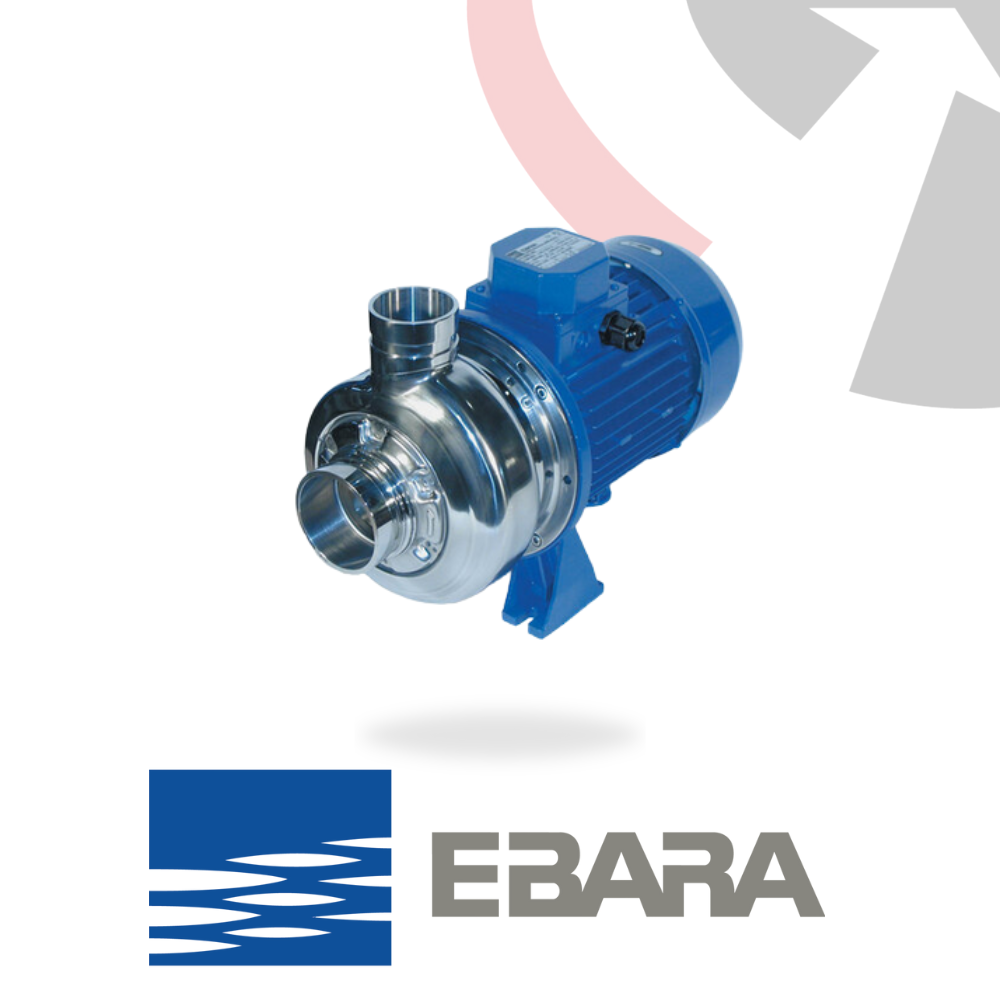

Ebara DWC Closed Impeller Centrifugal Pump - Stainless Steel

Performance
The Ebara DWC centrifugal pump delivers flow rates from 6 to 45 m³/h and total heads from 6.2 to 25 m. Its closed radial flow impeller ensures efficient liquid circulation for industrial and civil UK applications.

Applications
Designed for UK industrial and commercial use, the DWC is ideal for cooling, air conditioning, and heating systems, as well as chillers and washing systems. It suits civil and industrial water supply tasks requiring reliable performance.

Construction
Featuring a pump body and impeller in AISI 304 stainless steel, the DWC offers sturdy, silent construction via the hydroforming process. It includes an insulating shell to prevent condensation, a stainless steel shaft, and mechanical seal options, with Victaulic (DWC-V) or threaded (DWC-N) connections for easy installation.

Key Specifications:

• Flow rate: from 6 to 45 m³/h
• Total head: from 6.2 to 25 m
• Max. working pressure: 8 bar
• Max. temperature of the liquid: -15°C ÷ +75°C for H, HS, HW, HSW versions, -15°C ÷ +90°C for std version
• Poles: 2
• Insulation class: F
• Protection degree: IP55
• Voltage: Three-phase 3~230/400V +10%
• Pump body: Stainless steel AISI 304 (EN 1.4301)
• Impeller: Stainless steel AISI 304 (EN 1.4301)
• Shaft: Stainless steel AISI 304 (EN 1.4301) (part in contact with the liquid)
• Mechanical seal: Standard = Ceramic/Carbon/EPDM, H = Graphite/Ceramic/FPM, HS = Silicon Carbide/Silicon Carbide/FPM, HW = Tungsten Carbide/Tungsten Carbide/FPM, HSW = Silicon Carbide/Tungsten Carbide/FPM
• Motor support: Aluminium

Delivery
Order the Ebara DWC closed impeller centrifugal pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
