Ebara DWO Centrifugal Pump Open Impeller for Solids-Handling & Light Slurry

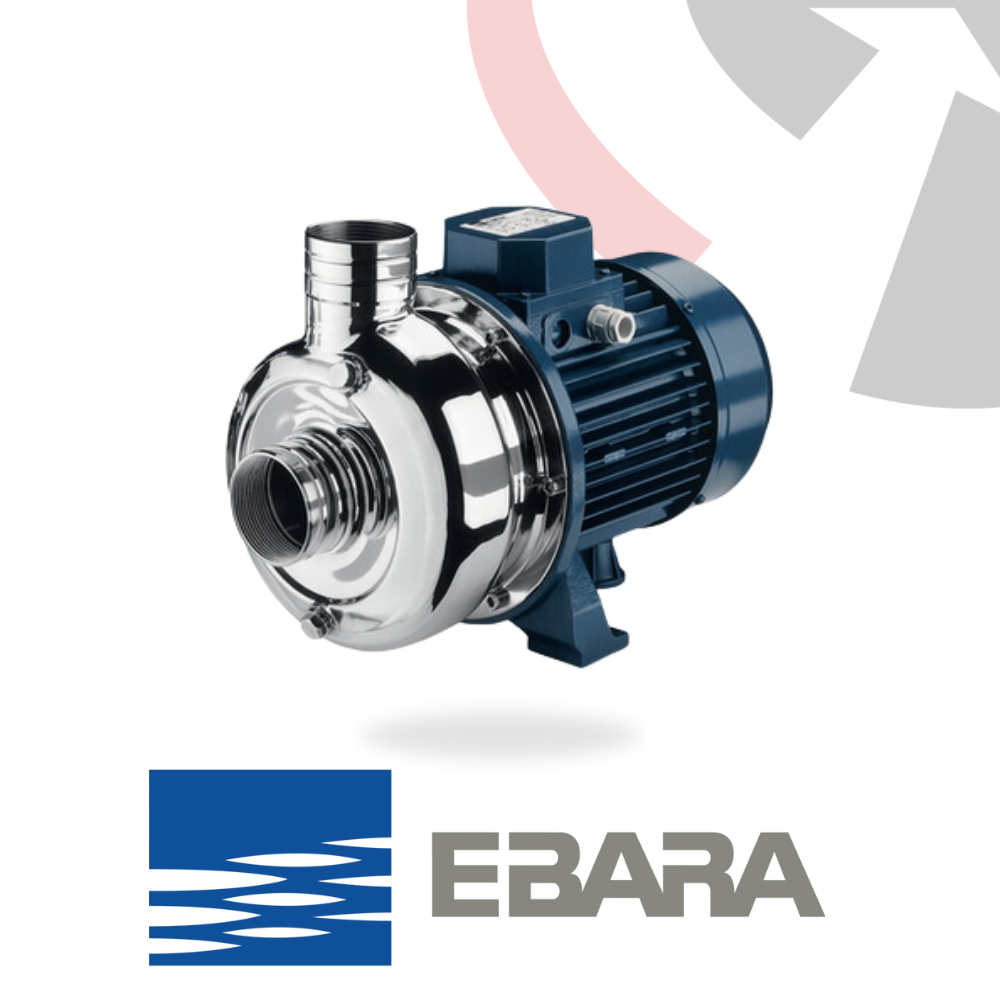

Ebara DWO Open Impeller Centrifugal Pump - Stainless Steel

Performance
The Ebara DWO open impeller centrifugal pump delivers flow rates from 6 to 66 m³/h and total heads from 5.1 to 17.5 m. Its hydroformed stainless steel design ensures efficient handling of clean or slightly dirty liquids with solids up to 19 mm.

Applications
Designed for UK industrial and commercial use, the DWO is ideal for washing vegetables, meat, fish, and molluscs, as well as industrial washing systems for metal parts, bottles, and crates. Its suited for liquid handling, evacuation, and transfer in dishwashers, spray booths, and water treatment.

Construction
Featuring a pump body and open radial impeller in AISI 304 stainless steel, the DWO offers sturdy, silent operation and corrosion resistance. The hydroforming process enhances reliability, with a stainless-steel shaft and multiple mechanical seal options, supported by an aluminium motor housing.

Key Specifications:

• Flow rate: from 6 to 66 m³/h
• Total head: 17.5 to 5.1 m
• Max. working pressure: 8 bar
• Max. temperature of the liquid: -5°C ÷ +75°C for H, HS, HW, HSW versions, -5°C ÷ +90°C for std version
• Poles: 2
• Max. solids passage: 19 mm
• Insulation class: F
• Protection degree: IP55
• Voltage: Single-phase 1230V ±10%, Three-phase 3230/400V +10%
• Pump body: Stainless steel AISI 304 (EN 1.4301)
• Impeller: Stainless steel AISI 304 (EN 1.4301)
• Shaft: Stainless steel AISI 304 (EN 1.4301)
• Mechanical seal: Standard = Ceramic/Carbon/NBR, H = Graphite/Ceramic/FPM, HS = Silicon Carbide/Silicon Carbide/FPM, HW = Tungsten Carbide/Tungsten Carbide/FPM, HSW = Silicon Carbide/Tungsten Carbide/FPM
• Motor support: Aluminium
