Lowara Pumps

e-SV 3SV Three phase (400/3/50)

e-SV 3SV Three phase (400/3/50)

SKU:3SV02T003T | 1016L0420

Regular price £767.00
Regular price £1,096.00 Sale price £767.00
Exclusive Online Price Sold out
Price excludes VAT + (Free UK Delivery)

Delivery Time: For delivery lead times on this product, please contact the office.

  • Free UK Delivery
  • Free Returns
  • Manufacturer Warranty

Further products in this range ↓

Add
3SV02T003T | 1016L0420 3SV02T003T | 1016L0420 £767.00
Save £329.00 (30% off)
3SV02F003T | 1016L0421 3SV02F003T | 1016L0421 £767.00
Save £329.00 (30% off)
3SV02N003T | 1016L0424 3SV02N003T | 1016L0424 £1,054.00
Save £452.00 (30% off)
3SV03T003T | 1016L0430 3SV03T003T | 1016L0430 £804.00
Save £345.00 (30% off)
3SV03F003T | 1016L0431 3SV03F003T | 1016L0431 £804.00
Save £345.00 (30% off)
3SV03N003T | 1016L0434 3SV03N003T | 1016L0434 £1,094.00
Save £469.00 (30% off)
3SV04T003T | 1016L0440 3SV04T003T | 1016L0440 £838.00
Save £359.00 (29% off)
3SV04F003T | 1016L0441 3SV04F003T | 1016L0441 £838.00
Save £359.00 (29% off)
3SV04N003T | 1016L0444 3SV04N003T | 1016L0444 £1,134.00
Save £486.00 (30% off)
3SV05T005T | 1016L0450 3SV05T005T | 1016L0450 £862.00
Save £370.00 (30% off)
3SV05F005T | 1016L0451 3SV05F005T | 1016L0451 £862.00
Save £370.00 (30% off)
3SV05N005T | 1016L0454 3SV05N005T | 1016L0454 £1,146.00
Save £491.00 (29% off)
3SV06T005T | 1016L0460 3SV06T005T | 1016L0460 £888.00
Save £381.00 (30% off)
3SV06F005T | 1016L0461 3SV06F005T | 1016L0461 £888.00
Save £381.00 (30% off)
3SV06N005T | 1016L0464 3SV06N005T | 1016L0464 £1,175.00
Save £504.00 (30% off)
3SV07T007T/D | 1016LC470 3SV07T007T/D | 1016LC470 £977.00
Save £419.00 (30% off)
3SV07F007T/D | 1016LC471 3SV07F007T/D | 1016LC471 £977.00
Save £419.00 (30% off)
3SV07R007T/D | 1016LC473 3SV07R007T/D | 1016LC473 £977.00
Save £419.00 (30% off)
3SV07N007T/D | 1016LC474 3SV07N007T/D | 1016LC474 £1,273.00
Save £545.00 (29% off)
3SV08T007T/D | 1016LC480 3SV08T007T/D | 1016LC480 £1,018.00
Save £436.00 (29% off)
3SV08F007T/D | 1016LC481 3SV08F007T/D | 1016LC481 £1,018.00
Save £436.00 (29% off)
3SV08R007T/D | 1016LC483 3SV08R007T/D | 1016LC483 £1,018.00
Save £436.00 (29% off)
3SV08N007T/D | 1016LC484 3SV08N007T/D | 1016LC484 £1,319.00
Save £565.00 (29% off)
3SV09T011T/D | 1016LC490 3SV09T011T/D | 1016LC490 £1,138.00
Save £487.00 (29% off)
3SV09F011T/D | 1016LC491 3SV09F011T/D | 1016LC491 £1,138.00
Save £487.00 (29% off)
3SV09R011T/D | 1016LC493 3SV09R011T/D | 1016LC493 £1,138.00
Save £487.00 (29% off)
3SV09N011T/D | 1016LC494 3SV09N011T/D | 1016LC494 £1,431.00
Save £613.00 (29% off)
3SV10T011T/D | 1016LC500 3SV10T011T/D | 1016LC500 £1,166.00
Save £499.00 (29% off)
3SV10F011T/D | 1016LC501 3SV10F011T/D | 1016LC501 £1,166.00
Save £499.00 (29% off)
3SV10R011T/D | 1016LC503 3SV10R011T/D | 1016LC503 £1,166.00
Save £499.00 (29% off)
3SV10N011T/D | 1016LC504 3SV10N011T/D | 1016LC504 £1,475.00
Save £632.00 (29% off)

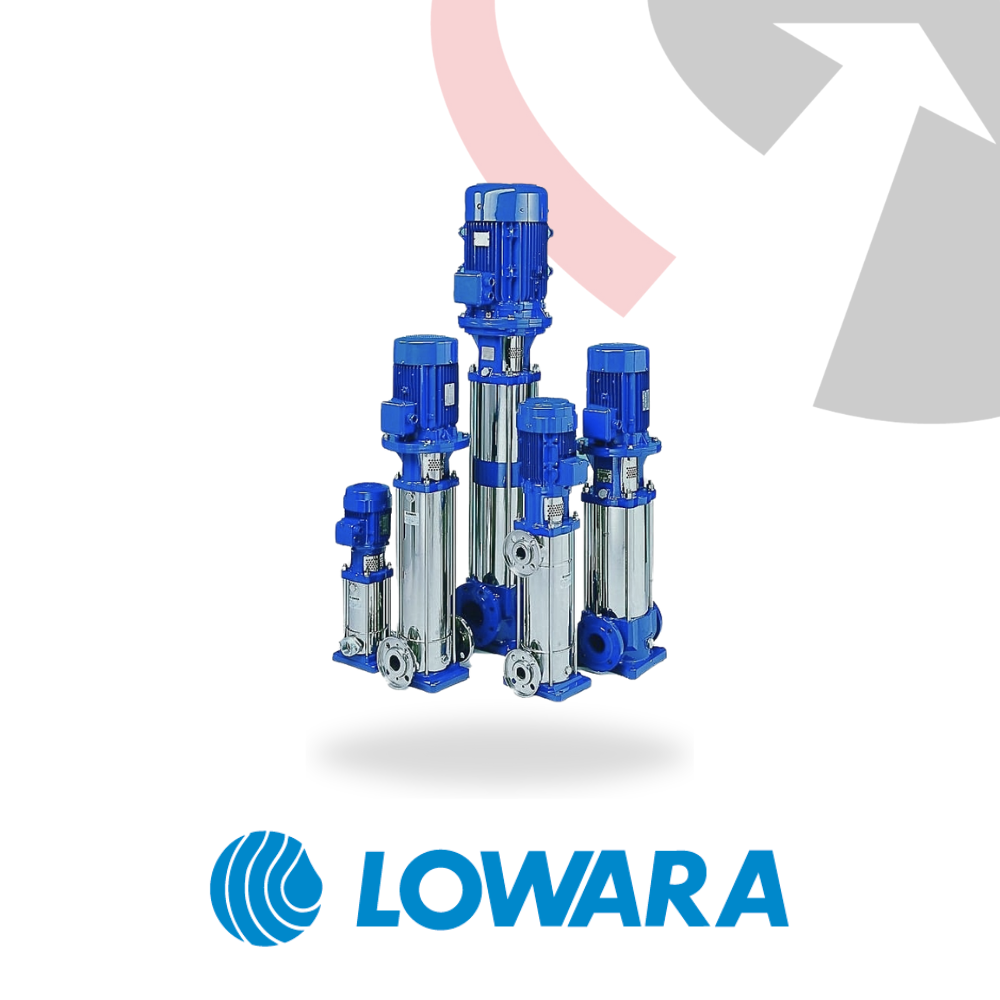

Lowara e-SV Series Vertical Multistage Electric Pumps

Overview

The Lowara e-SV series is a high-efficiency, non-self-priming vertical multistage pump designed for reliability and energy savings. It features a stainless steel liquid end, modular design, and compatibility with variable speed drive systems like Hydrovar® and e-SM Drive for optimized performance.


Specifications

PUMP

  • Flow Rate: Up to 160 m³/h
  • Head: Up to 330 m
  • Maximum Operating Pressure:
    • 1-22SV (Oval Flanges): 16 bar (PN16)
    • 1-22SV (Round Flanges, Victaulic®, Clamp, DIN 11851): 25 bar (PN25)
    • 33-46SV: 16, 25, or 40 bar (PN16, PN25, PN40)
    • 66-125SV: 16 or 25 bar (PN16 or PN25)
  • Temperature Range: -30°C to +120°C (up to 180°C for high-temperature versions)
  • Material: Stainless steel construction (1, 3, 5, 10, 15, 22 m³/h models in full stainless steel)
  • Hydraulics Compliance: ISO 9906:2012 - Grade 3B
  • Pump Direction: Clockwise (top-down view)

MOTOR

  • Type: Squirrel cage induction motor with external ventilation
  • Efficiency Class: IEC Standard (IE3 and IE5 options)
  • Protection Class: IP55
  • Insulation Class: 155 (F)
  • Voltage:
    • Single-phase: 220-240V, 50 Hz
    • Three-phase:
      • Up to 3 kW: 220-240/380-415V, 50 Hz
      • Above 3 kW: 380-415/660-690V, 50 Hz
  • Power Range: 0.37 kW to 55 kW

Key Features

œ… Liquid End in Stainless Steel Ensures durability and corrosion resistance
œ… Standard Mechanical Seal Replacement No need to remove the motor for easy maintenance (10-125SV models)
œ… Reduced Impeller Axial Thrust Extends motor bearing life
œ… Replaceable Diffuser Wear Ring PPS Glass-filled polymer for chemical and mechanical resistance
œ… High-Temperature Seal Option Handles up to 180°C
œ… Variable Speed Options Compatible with Hydrovar®, e-SM Drive, and integrated Hydrovar® X
œ… Certified for Potable Water WRAS, ACS, D.M. 174 certifications
œ… Performance Monitoring Optimyzediagnostic system and Dry Run sensor available as accessories


Market Sectors & Applications

Market Sectors:

  • Civil
  • Agricultural
  • Industrial & Light Industry
  • Water Treatment
  • HVAC (Heating & Air Conditioning)

Applications:

  • Pressure boosting and water supply
  • Industrial & commercial wash systems
  • Boiler feed applications
  • Circulation of hot and cold water in HVAC
  • Irrigation & water treatment plants
  • Handling of demineralized water, glycol mixtures, and moderately aggressive liquids

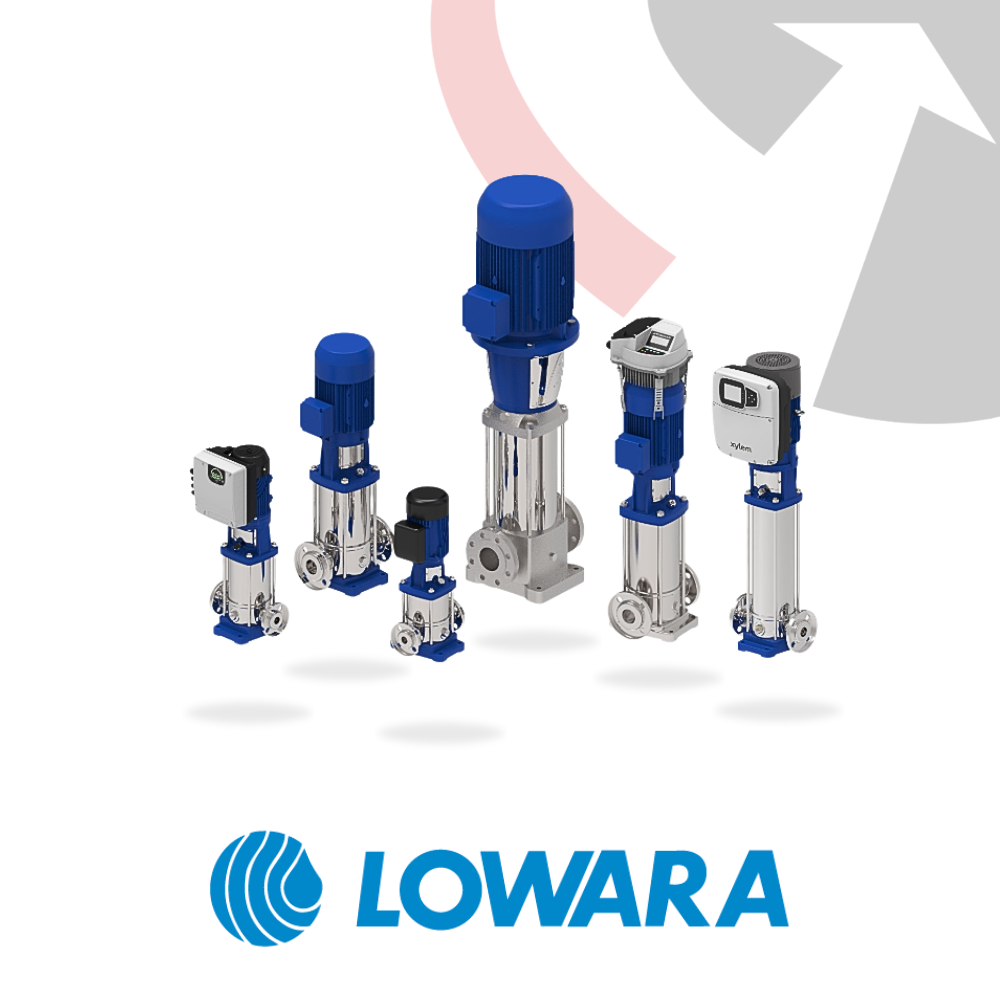

Available Versions

🔹 e-SV: Standard IEC motor
🔹 e-SVE: Variable speed Smart Pump with IE5 ultra-premium efficiency motor (up to 2.2 kW)
🔹 e-SVH: Variable speed pump with Hydrovar® controller (up to 22 kW)
🔹 e-SV Hydrovar® X: Fully integrated IE5 high-efficiency solution with built-in intelligence (3-22 kW)
