| Model | Price | Add |
|---|---|---|
| E2CA1D110C-ATEX | 2" E-SERIES CAST IRON | £3,272.00 | |
| E2CA1D110C-B-ATEX | 2" E-SERIES CAST IRON | £3,272.00 | |
| E2CA1R110C-ATEX | 2" E-SERIES CAST IRON | £3,143.00 | |
| E2CA1R110C-B-ATEX | 2" E-SERIES CAST IRON | £3,143.00 | |
| E2CA2D220C-ATEX | 2" E-SERIES CAST IRON | £3,272.00 | |
| E2CA2D220C-B-ATEX | 2" E-SERIES CAST IRON | £3,272.00 | |
| E2CA2R220C-ATEX | 2" E-SERIES CAST IRON | £3,143.00 | |
| E2CA2R220C-B-ATEX | 2" E-SERIES CAST IRON | £3,143.00 | |
| E2CA3D330C-ATEX | 2" E-SERIES CAST IRON | £4,783.00 | |
| E2CA3R330C-ATEX | 2" E-SERIES CAST IRON | £4,341.00 | |
| E2CA3R330C-B-ATEX | 2" E-SERIES CAST IRON | £4,341.00 | |
| E2CA4D440C-ATEX | 2" E-SERIES CAST IRON | £3,397.00 | |
| E2CA4R440C-ATEX | 2" E-SERIES CAST IRON | £3,251.00 | |
| E2CA4R440C-B-ATEX | 2" E-SERIES CAST IRON | £3,251.00 | |
| E2CA5F5S0C-ATEX | 2" E-SERIES CAST IRON | £4,558.00 | |
| E2CA5T5S0C-ATEX | 2" E-SERIES CAST IRON | £4,079.00 | |
| E2CA5T5S0C-B-ATEX | 2" E-SERIES CAST IRON | £4,079.00 | |
| E2CA6D660C-ATEX | 2" E-SERIES CAST IRON | £3,272.00 | |
| E2CA6D660C-B-ATEX | 2" E-SERIES CAST IRON | £3,272.00 | |
| E2CA6X560C-ATEX | 2" E-SERIES CAST IRON | £3,307.00 | |
| E2CA6X560C-B-ATEX | 2" E-SERIES CAST IRON | £3,307.00 | |
| E2CA6X660C-ATEX | 2" E-SERIES CAST IRON | £3,143.00 | |
| E2CA6X660C-B-ATEX | 2" E-SERIES CAST IRON | £3,143.00 | |
| E2CA7X770C-ATEX | 2" E-SERIES CAST IRON | £3,143.00 | |
| E2CS1R110C-ATEX | 2" E-SERIES CAST IRON | £4,449.00 | |
| E2CS1R110C-B-ATEX | 2" E-SERIES CAST IRON | £4,449.00 | |
| E2CS4R440C-B-ATEX | 2" E-SERIES CAST IRON | £4,558.00 | |
| E2CS5F5S0C-ATEX | 2" E-SERIES CAST IRON | £5,865.00 | |
| E2CS6X660C-ATEX | 2" E-SERIES CAST IRON | £4,449.00 |
Performance

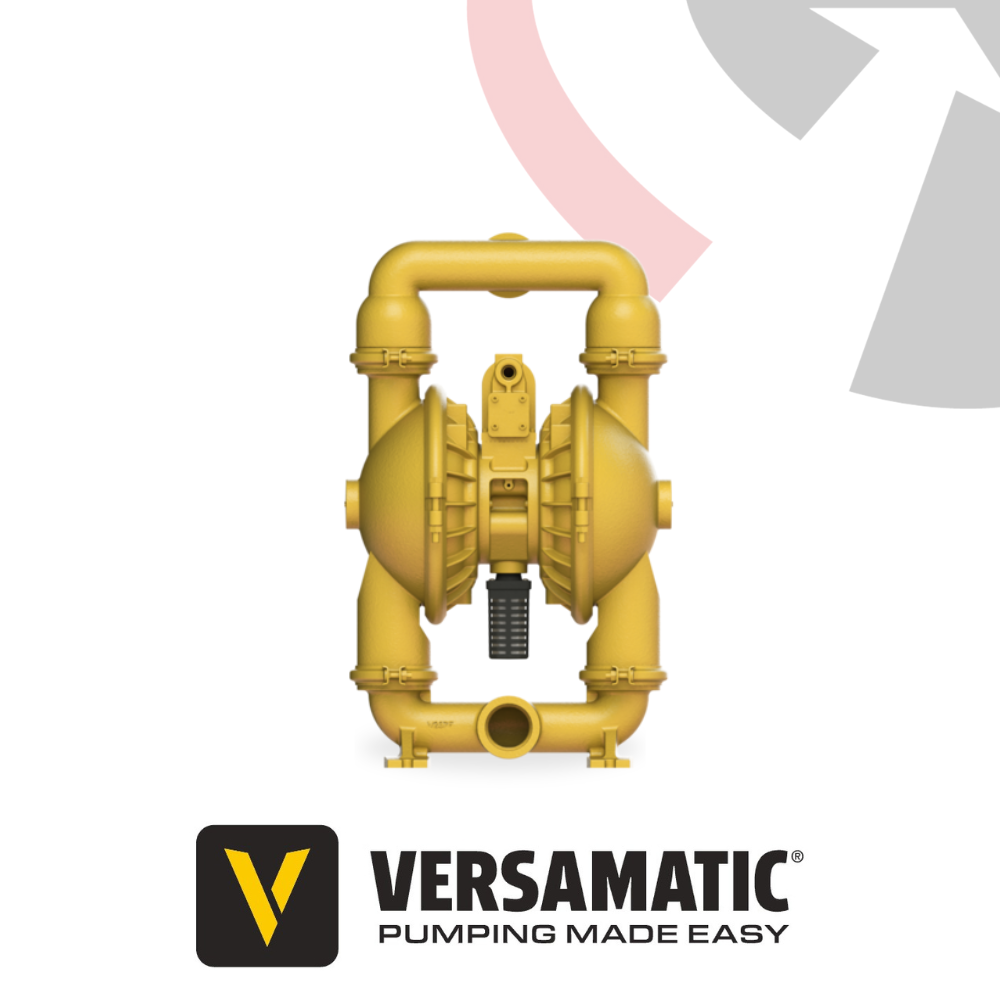

The Versamatic 2 inch (51mm) E2 cast iron clamped AODD (air-operated double-diaphragm) pump delivers robust flow rates up to 700 l/min (185 gpm). Its patented air valve system provides non-stalling, lubrication-free performance for reliable operation, even in demanding stop/start duty cycles.
Applications
Built for harsh environments, this cast iron diaphragm pump handles abrasive slurries, wastewater, mining fluids, construction materials and general industrial liquids. With full ATEX compliance, it is safe for use in hazardous zones that require dependable, spark-free pumping.
Construction
Featuring a rugged cast iron body and a simple clamped design, the E2 pump offers long-term durability with straightforward servicing. The fully conductive, groundable build ensures safe operation in explosive atmospheres, while its dimensional compatibility with Wilden 8 Series models provides installation flexibility.
Key Specifications
- Flow rate: Up to 700 l/min (185 gpm)
- Suction lift: Dry 5.2 m, Wet 9.8 m
- Port size: 2 inch NPT (suction and discharge)
- Air inlet: ½ inch NPT
- Air exhaust: 1 inch NPT
- Maximum solid size: 6.4 mm (¼ inch)
- Maximum noise level: 96 dB(A)
- Shipping weight: 51.3 kg (cast iron)
Delivery
Order the Versamatic 2 inch Cast Iron Clamped AODD Pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
