| Model | Price | Add |
|---|---|---|
| E2PA1D129C | 2" E-SERIES POLYPROPYLENE | £5,334.00 | |
| E2PA1D129C-CP | 2" E-SERIES POLYPROPYLENE | £5,519.00 | |
| E2PA2D229C | 2" E-SERIES POLYPROPYLENE | £5,334.00 | |
| E2PA2D229C-CP | 2" E-SERIES POLYPROPYLENE | £5,519.00 | |
| E2PA4D449C | 2" E-SERIES POLYPROPYLENE | £5,440.00 | |
| E2PA4D449C-CP | 2" E-SERIES POLYPROPYLENE | £5,625.00 | |
| E2PA5F5T9C | 2" E-SERIES POLYPROPYLENE | £6,471.00 | |
| E2PA5T5T9C | 2" E-SERIES POLYPROPYLENE | £6,005.00 | |
| E2PA5T5T9C-CP | 2" E-SERIES POLYPROPYLENE | £6,191.00 | |
| E2PA6D569C | 2" E-SERIES POLYPROPYLENE | £5,493.00 | |
| E2PA6D569C-CP | 2" E-SERIES POLYPROPYLENE | £5,678.00 | |
| E2PA6D5T9C | 2" E-SERIES POLYPROPYLENE | £5,572.00 | |
| E2PA6D5T9C-CP | 2" E-SERIES POLYPROPYLENE | £5,757.00 | |
| E2PA6D669C | 2" E-SERIES POLYPROPYLENE | £5,334.00 | |
| E2PA6D669C-CP | 2" E-SERIES POLYPROPYLENE | £5,519.00 | |
| E2PA6D6T9C | 2" E-SERIES POLYPROPYLENE | £5,413.00 | |
| E2PA6D6T9C-CP | 2" E-SERIES POLYPROPYLENE | £5,598.00 | |
| E2PA7D7T9C | 2" E-SERIES POLYPROPYLENE | £5,413.00 |

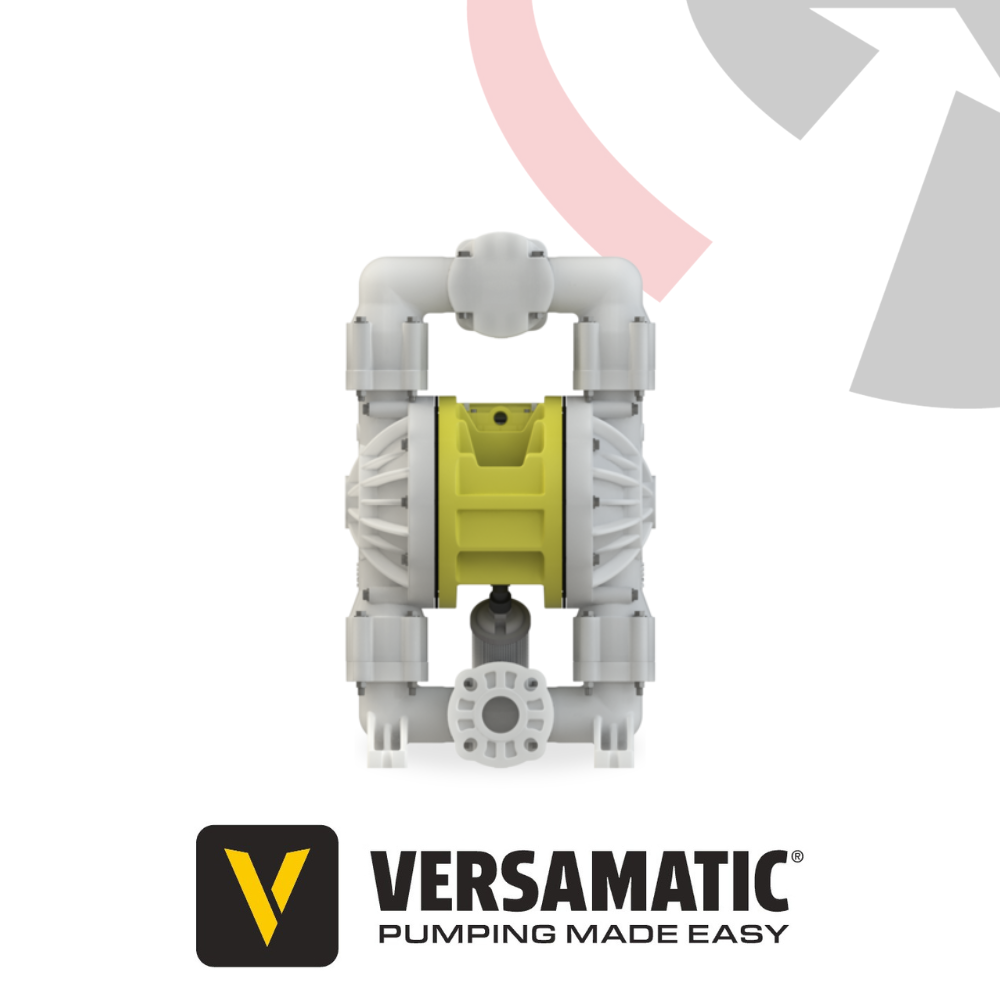

Versamatic 2" (51mm) E2 Polypropylene Bolted AODD Pump
Chemical-resistant diaphragm pump for aggressive fluid handling
Performance
The Versamatic 2" (51mm) E2 polypropylene bolted AODD (air-operated double-diaphragm) pump delivers high-volume flow up to 727 l/min (192 gpm). Its patented air valve system ensures non-stalling, non-freezing, and lube-free performance for both continuous and intermittent duty cycles.
Applications
Engineered for aggressive chemical handling, this pump is ideal for chemical processing, agricultural dosing, wastewater treatment, and general industrial fluid transfer. Its ATEX certification makes it safe for use in potentially explosive environments.
Construction
Constructed with a rugged bolted polypropylene body, the E2 pump offers excellent resistance to strong acids, alkalis, and corrosive chemicals. Lightweight yet durable, it features wear-resistant internals and a leak-free design with flexible porting options for installation versatility.
Key Specifications:
- Flow rate: Up to 727 l/min (192 gpm)
- Suction lift (dry): Rubber: 6.1 m | PTFE: 3.05 m
- Port size: 2" ANSI/DIN #50 flange (suction and discharge)
- Air inlet: ½" NPTF
- Air exhaust: ¾" NPTF
- Max solid size: 6 mm (¼")
- Shipping weight: 30 kg (polypropylene)
Delivery
Order the Versamatic 2" Polypropylene Bolted AODD Pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
