| Model | Price | Add |
|---|---|---|
| E3AA7X779C-ATEX | 3" E-SERIES ALUMINUM | £3,706.00 | |
| E3AA6X669C-ATEX | 3" E-SERIES ALUMINUM | £3,706.00 | |
| E3AA7X649C-ATEX | 3" E-SERIES ALUMINUM | £3,706.00 | |
| E3AA6X569C-ATEX | 3" E-SERIES ALUMINUM | £3,970.00 | |
| E3AA6X169C-ATEX | 3" E-SERIES ALUMINUM | £3,706.00 | |
| E3AA5T5S9C-ATEX | 3" E-SERIES ALUMINUM | £5,149.00 | |
| E3AA5T559C-ATEX | 3" E-SERIES ALUMINUM | £4,859.00 | |
| E3AA4R449C-ATEX | 3" E-SERIES ALUMINUM | £3,706.00 | |
| E3AA5F559C-ATEX | 3" E-SERIES ALUMINUM | £5,016.00 | |
| E3AA4D449C-ATEX | 3" E-SERIES ALUMINUM | £3,880.00 | |
| E3AA3R539C-ATEX | 3" E-SERIES ALUMINUM | £5,149.00 | |
| E3AA3R339C-ATEX | 3" E-SERIES ALUMINUM | £5,466.00 | |
| E3AA3R339C-B-ATEX | 3" E-SERIES ALUMINUM | £5,466.00 | |
| E3AA3D339C-ATEX | 3" E-SERIES ALUMINUM | £6,494.00 | |
| E3AA2R229C-ATEX | 3" E-SERIES ALUMINUM | £3,706.00 | |
| E3AA2D229C-ATEX | 3" E-SERIES ALUMINUM | £3,880.00 | |
| E3AA1R119C-ATEX | 3" E-SERIES ALUMINUM | £3,706.00 | |
| E3AA1D119C-ATEX | 3" E-SERIES ALUMINUM | £3,880.00 |
Performance

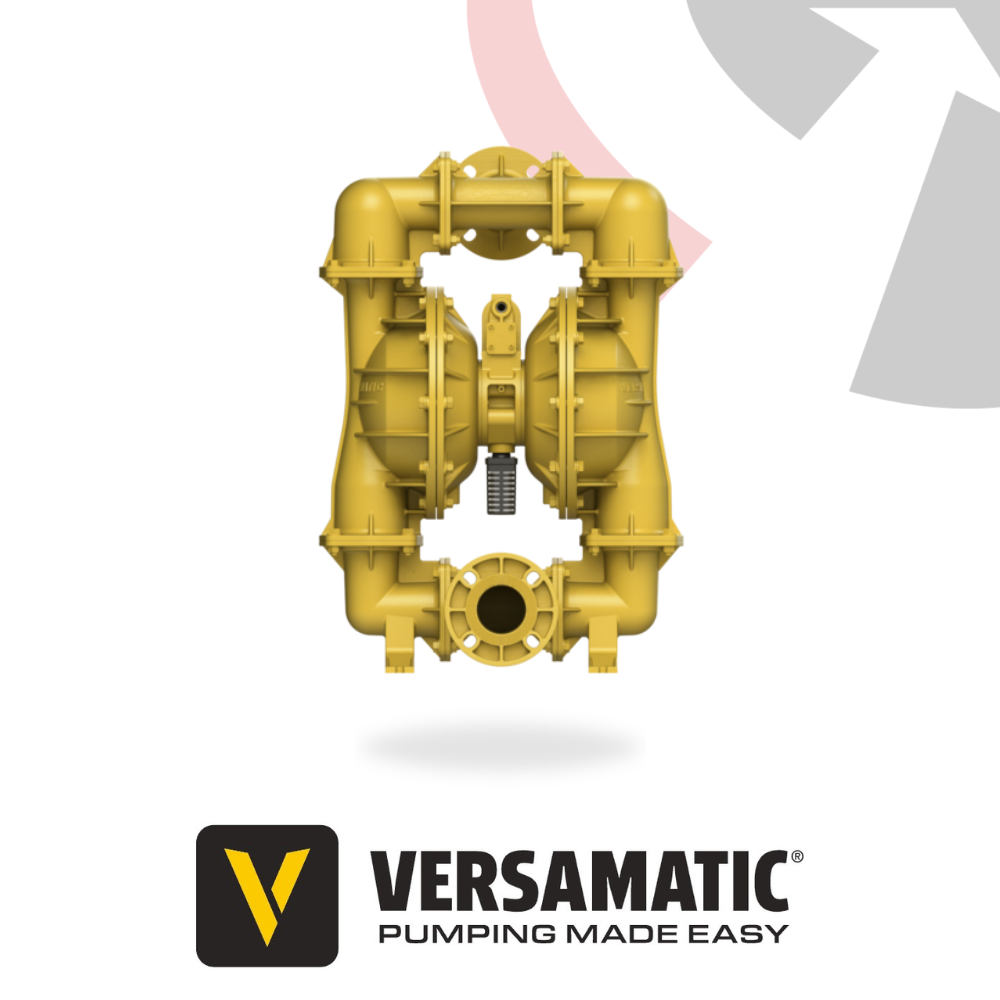

The Versamatic 3 inch (76 mm) E3 aluminium bolted AODD pump delivers high-volume output with flow rates up to 1,033 l/min (273 gpm). Its optimised flow-through casting and patented non-stalling, lube-free air valve ensure reliable operation in continuous or stop/start industrial duties.
Applications
Designed for rapid fluid transfer and strong solids handling, this aluminium AODD pump is ideal for wastewater, sludge, slurry, bulk chemical transfer and other heavy-duty industrial processes. With full ATEX compliance, it is suitable for hazardous and potentially explosive environments.
Construction
Engineered with robust aluminium castings and a secure bolted design, the E3 pump provides leak-free performance and long service life. An adjustable manifold allows flexible installation, while extended-life diaphragms and simplified maintenance reduce downtime. Multiple porting and air section options ensure compatibility across a range of systems and fluids.
Key Specifications
- Flow rate: Up to 1,033 l/min (273 gpm)
- Suction lift: Dry 4.9 m, Wet 9.4 m
- Port size: 3 inch ANSI 150 Class (DIN80) suction and discharge
- Air inlet: ½ inch NPT
- Air exhaust: 1 inch NPT
- Maximum solid size: 9.5 mm (⅜ inch)
- Maximum noise level: 93 dB(A)
- Shipping weight: 66.2 kg
