| Model | Price | Add |
|---|---|---|
| E40PP5F559A | 1 1/2" E-SERIES POLYPROPYLENE | £5,068.00 | |
| E40PP5T559A | 1 1/2" E-SERIES POLYPROPYLENE | £4,690.00 | |
| E40PP5T559A-ATEX | 1 1/2" E-SERIES POLYPROPYLENE | £5,616.00 | |
| E40PP6X659A | 1 1/2" E-SERIES POLYPROPYLENE | £3,999.00 | |
| E40PP6X659A-ATEX | 1 1/2" E-SERIES POLYPROPYLENE | £4,924.00 |

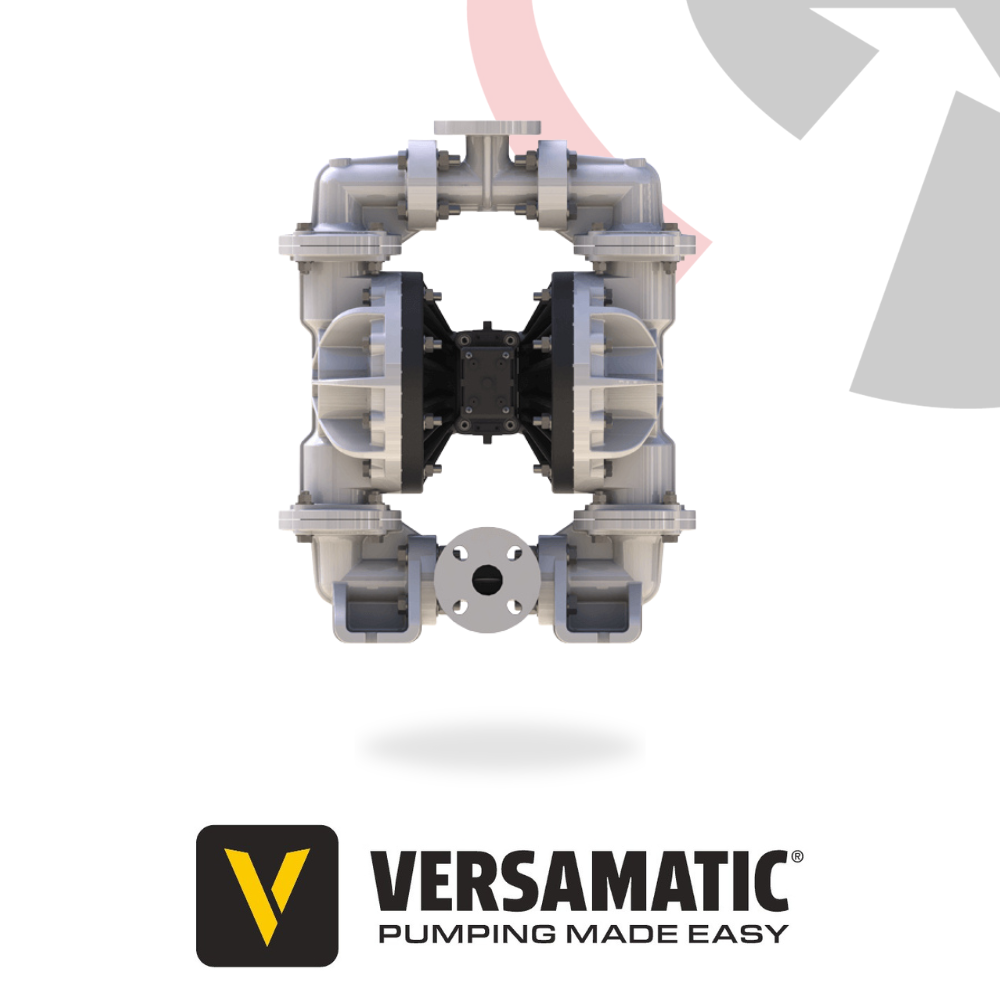

Versamatic 1½" (38mm) Bolted Plastic AODD Pump
The Versamatic 1½" bolted plastic AODD pump provides exceptional chemical resistance, high solids handling, and reliable performance in demanding process environments. Designed for aggressive media, corrosive chemicals, and flexible installation layouts, it is a versatile choice for industrial chemical transfer.
Performance
This chemically resistant AODD pump delivers flow rates up to 378 l/min (100 gpm) with a stroke displacement of 1.63 litres. Its non-stalling air valve design ensures smooth, consistent operation across stop/start duty cycles, making it suitable for varied process demands.
Applications
- Chemical processing and transfer of aggressive fluids
- Wastewater treatment, including filter press feed
- Metal finishing and plating systems
- Hazardous environments using ATEX conductive polypropylene models
Construction
Manufactured from high-grade polypropylene or PVDF, the pump provides exceptional resistance to acids, alkalis, and solvents. Its robust bolted design ensures leak-free operation, while adjustable horizontal and vertical porting offers installation flexibility. PVDF models are ideal for UV-exposed environments or highly corrosive chemical duties.
Key Specifications
- Flow rate: Up to 378 l/min (100 gpm)
- Suction lift: Dry 5.8 m, Wet 8.8 m
- Port size: 1½" ANSI/DIN (suction and discharge)
- Air inlet: ¾" NPT
- Air exhaust: 1" NPT
- Maximum solid size: 12 mm (0.47")
- Maximum noise level: 89 dB(A)
-
Shipping weight:
Polypropylene: 37 kg
Conductive Polypropylene: 38 kg
PVDF: 51 kg
