Versamatic Pumps

SKU:E40SA1D119C-ATEX

E4 Versamatic

1-1/2" (38 mm)

Stainless Steel

Delivery Time: For delivery lead times on this product, please contact the office.

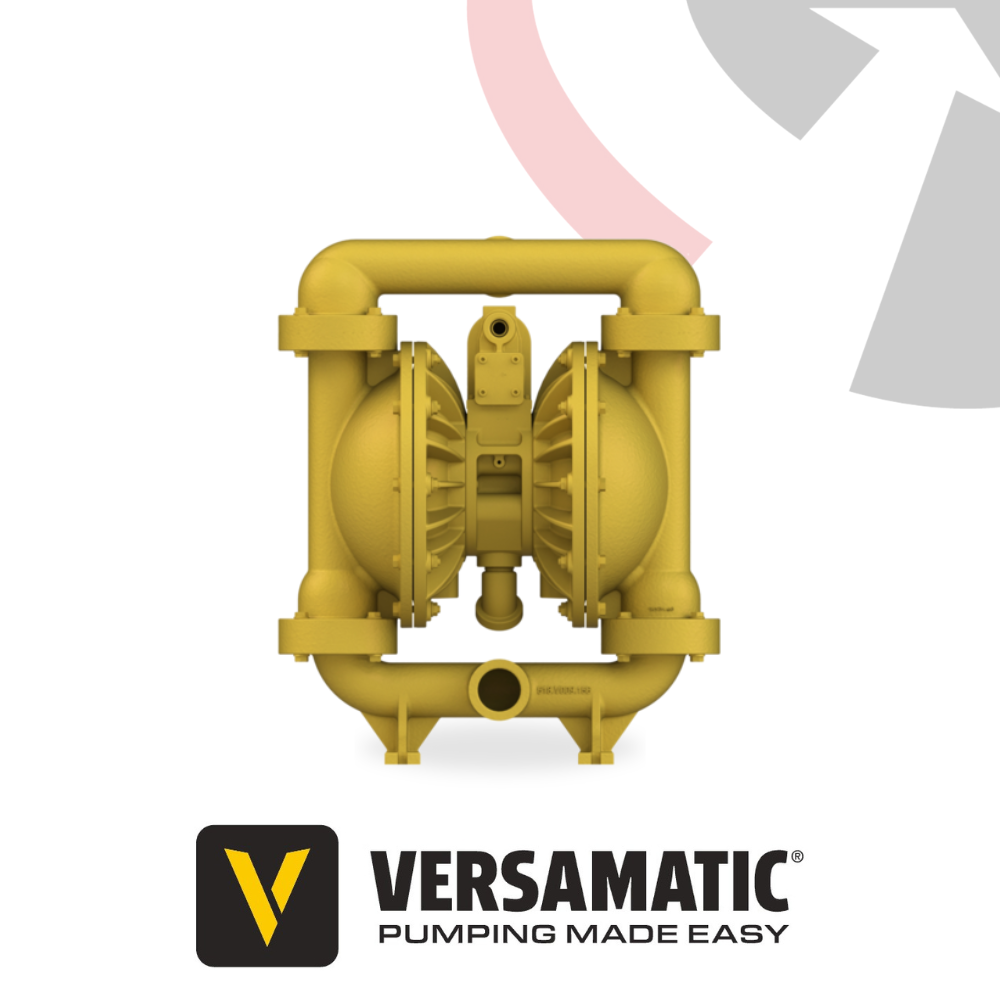

Versamatic 1½" (38mm) Stainless Steel Bolted AODD Pump

Compact, High-Efficiency Diaphragm Pump for Corrosive and Hazardous Fluids

Performance
The Versamatic 1½" (38mm) stainless steel bolted AODD (air-operated double-diaphragm) pump delivers powerful, efficient flow rates up to 466 l/min (123 gpm). Its patented air valve system ensures consistent, non-stalling operation with superior air efficiency, even during intermittent use.

Applications
Ideal for safe and reliable transfer of acids, caustics, and aggressive chemicals, this stainless steel diaphragm pump is suited for chemical processing, surface finishing, food-grade CIP, and other demanding industrial applications. Its ATEX certification makes it suitable for potentially explosive environments.

Construction
Engineered with a robust stainless steel body and leak-free bolted design, this pump provides excellent corrosion resistance and secure fluid handling. The removable air valve sleeve and modular pilot spool simplify maintenance, while extended-life diaphragm options further reduce downtime and operating costs.

Key Specifications:

• Flow rate: Up to 466 l/min (123 gpm)

• Suction lift: Dry 5.8 m; Wet 9.4 m

• Port size: 1½" NPT (BSP) inlet & discharge

• Air inlet: ¾" NPT (stainless steel)

• Air exhaust: 1" NPT

• Max solid size: 6.4 mm (¼")

• Shipping weight: 42 kg (stainless steel)

Delivery
Order the Versamatic 1½" Stainless Steel Bolted AODD Pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
