Versamatic Pumps

SKU:E5PP1R259D

Delivery Time: For delivery lead times on this product, please contact the office.

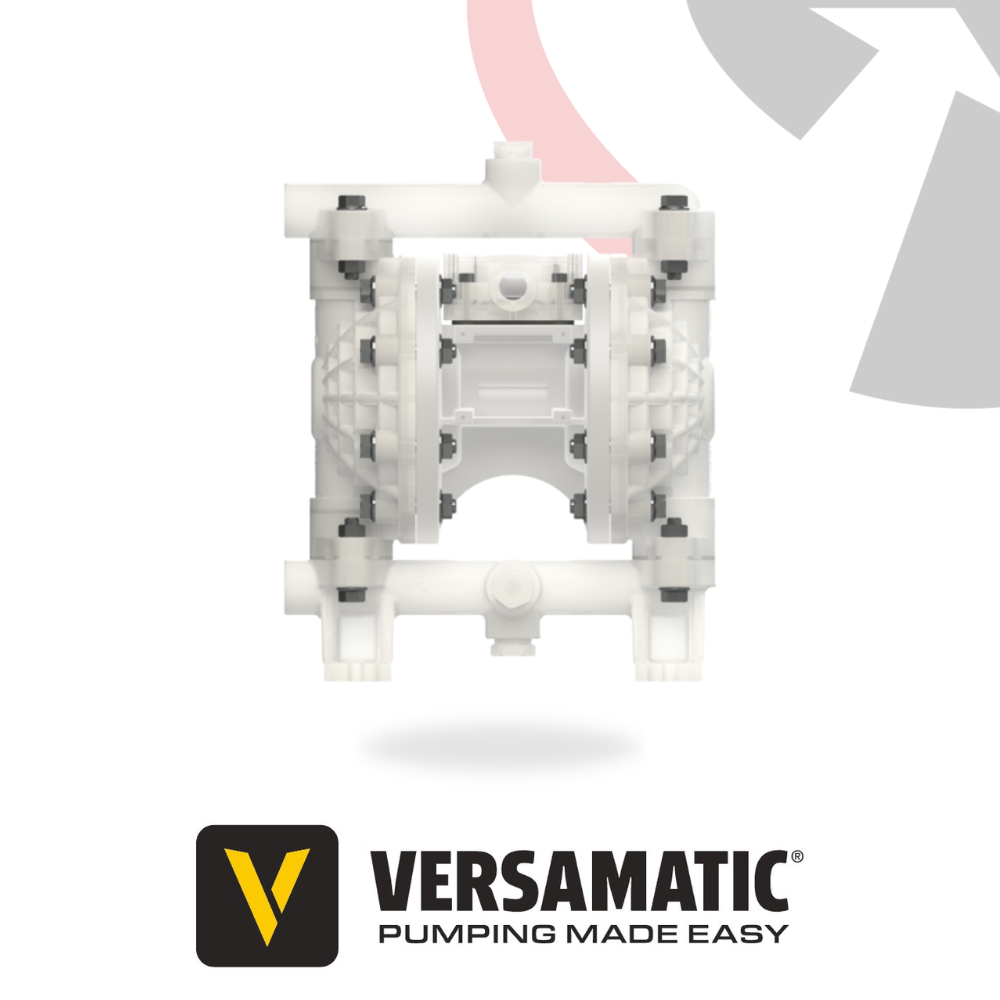

Versamatic ½" (13mm) Bolted Polypropylene AODD Pump

Compact Chemical-Resistant Diaphragm Pump with Flexible Installation Options

Performance
The Versamatic ½" (13mm) bolted plastic AODD (air-operated double-diaphragm) pump delivers safe and consistent flow for chemical transfer, with rates up to 42 l/min (11 gpm). Its exclusive, patented air valve system ensures smooth, non-stalling, lube-free operation for reliable performance in compact applications.

Applications
Ideal for dosing, small-scale chemical handling, and general industrial use, this pump is well-suited for laboratories, water treatment systems, and fluid transfer in tight spaces. Its chemically resistant design ensures safety when transferring aggressive or corrosive fluids.

Construction
With a rugged, leak-free bolted body, this compact pump is available in polypropylene or PVDF for superior chemical resistance. Multiple porting options and multi-position foot mounts offer maximum installation flexibility, allowing the pump to fit seamlessly into existing systems. Extended-life diaphragms ensure minimal maintenance and long-term reliability.

Key Specifications:

• Flow rate: Up to 42 l/min (11 gpm)
• Suction lift: Dry 3.6 m; Wet 9.1 m
• Port size: ½" NPT (suction & discharge)
• Air inlet: ⅜" NPT
• Air exhaust: ⅜" NPT
• Max solid size: 1.6 mm (1⁄16")
• Max noise level: 86 dB(A)
• Shipping weight:
  Polypropylene: 3.9 kg



Delivery
Order the Versamatic ½" Bolted Plastic AODD Pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
