Performance

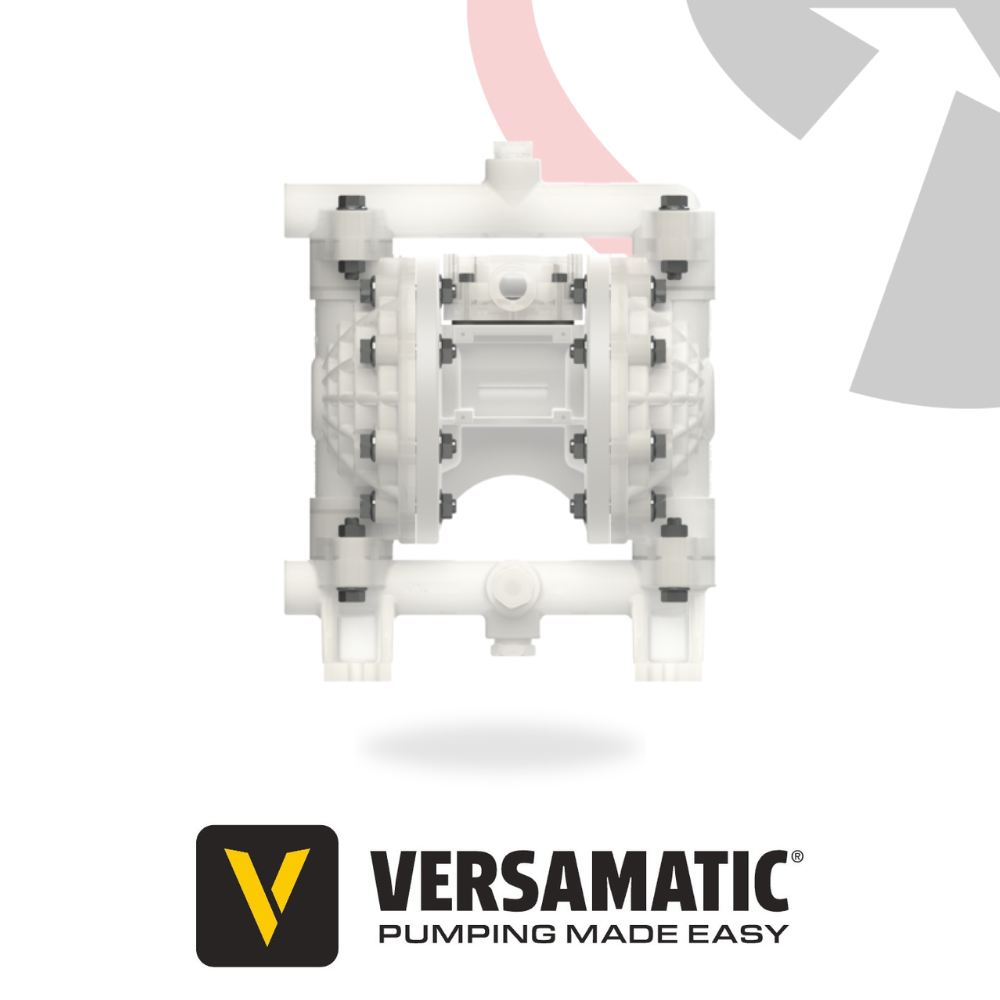

The Versamatic ½ inch (13mm) bolted PVDF AODD (air-operated double-diaphragm) pump delivers safe and consistent flow for chemical transfer, with rates up to 42 l/min (11 gpm). Its exclusive patented air valve system ensures smooth, non-stalling, lube-free operation, providing reliable performance in compact installations.
Applications
Ideal for dosing, small-scale chemical handling and general industrial use, this pump is well suited to laboratories, water treatment systems and fluid transfer in tight spaces. Its chemically resistant PVDF construction ensures safety and durability when handling aggressive or corrosive fluids.
Construction
Featuring a rugged, leak-free bolted body, this compact pump is available in polypropylene or PVDF for superior chemical resistance. Multiple porting configurations and multi-position foot mounts offer maximum installation flexibility, allowing seamless integration into existing systems. Extended-life diaphragms ensure reduced maintenance and long-term reliability.
Key Specifications
- Flow rate: Up to 42 l/min (11 gpm)
- Suction lift: Dry 3.6 m, Wet 9.1 m
- Port size: ½ inch NPT (suction and discharge)
- Air inlet: ⅜ inch NPT
- Air exhaust: ⅜ inch NPT
- Maximum solid size: 1.6 mm (1⁄16 inch)
- Maximum noise level: 86 dB(A)
- Shipping weight: Polypropylene 3.9 kg
