Versamatic Pumps
SKU:E6KP5B550A
Versamatic 1/4" (6mm) E6 Bolted Plastic AODD Pump | Air Operated Diaphragm Pump
Versamatic 1/4" (6mm) E6 Bolted Plastic AODD Pump | Air Operated Diaphragm Pump
Couldn't load pickup availability
Delivery Time: For delivery lead times on this product, please contact the office.

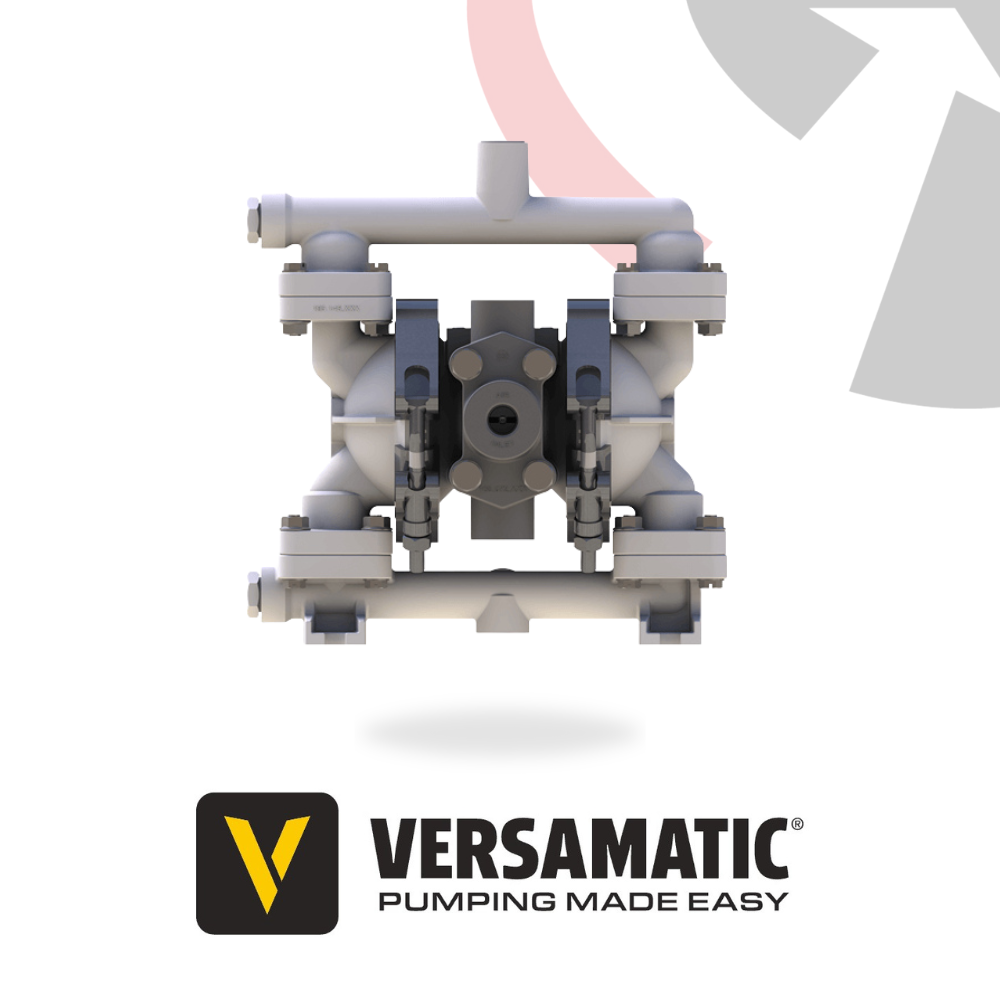

Versamatic ¼" (6mm) Bolted Plastic AODD Pump
Ultra-Compact Chemical Transfer Pump for OEM Systems and Tight Installations
Performance
The Versamatic ¼" (6mm) bolted plastic AODD (air-operated double-diaphragm) pump delivers flow rates up to 19 l/min (5 gpm) in one of the smallest footprints in its class. Designed for non-stalling, lubrication-free operation, it provides smooth, quiet performance with minimal air consumption and maximum system flexibility.
Applications
Perfect for OEM integration and precise chemical dosing, this miniature diaphragm pump is ideal for compact lab setups, small dosing systems, fluid sampling stations, and delicate media transfer where flow control and space efficiency are critical. ATEX-compliant conductive Acetal models are available for volatile fluids.
Construction
Built with dual-threaded manifolds and multiple porting configurations—including horizontal suction, vertical discharge, and optional side ports—this pump adapts easily to your system layout. Available in polypropylene, PVDF (Kynar®), and conductive Acetal, it offers excellent chemical resistance, grounding capability, and long-term reliability. An integrated muffler ensures ultra-quiet operation.
Key Specifications:
- Flow rate: Up to 19 l/min (5 gpm)
- Suction lift (dry): 2.44 m (8 ft)
- Port size: ¼" NPT (BSP) suction & discharge
- Air inlet: ¼" NPT
- Air exhaust: ¼" NPT
- Max solid size: 1 mm (1⁄32")
- Max noise level: 78 dB(A)
- Shipping weight:
– Polypropylene: 1.5 kg
– PVDF (Kynar): 1.8 kg
Delivery
Order the Versamatic ¼" Bolted Plastic AODD Pump from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
